Fault 1222 - Ignition Control Module Not Grounded

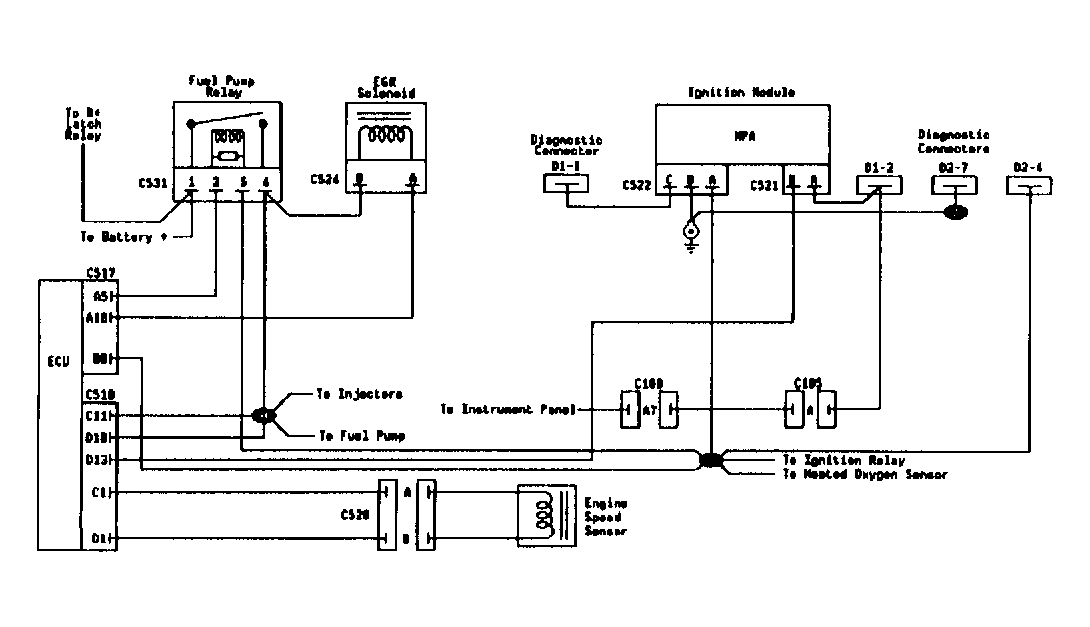

Fig 1: Fault 1222 - Ignition Control Module Not Grounded Schematic

Courtesy of CHRYSLER MOTORS

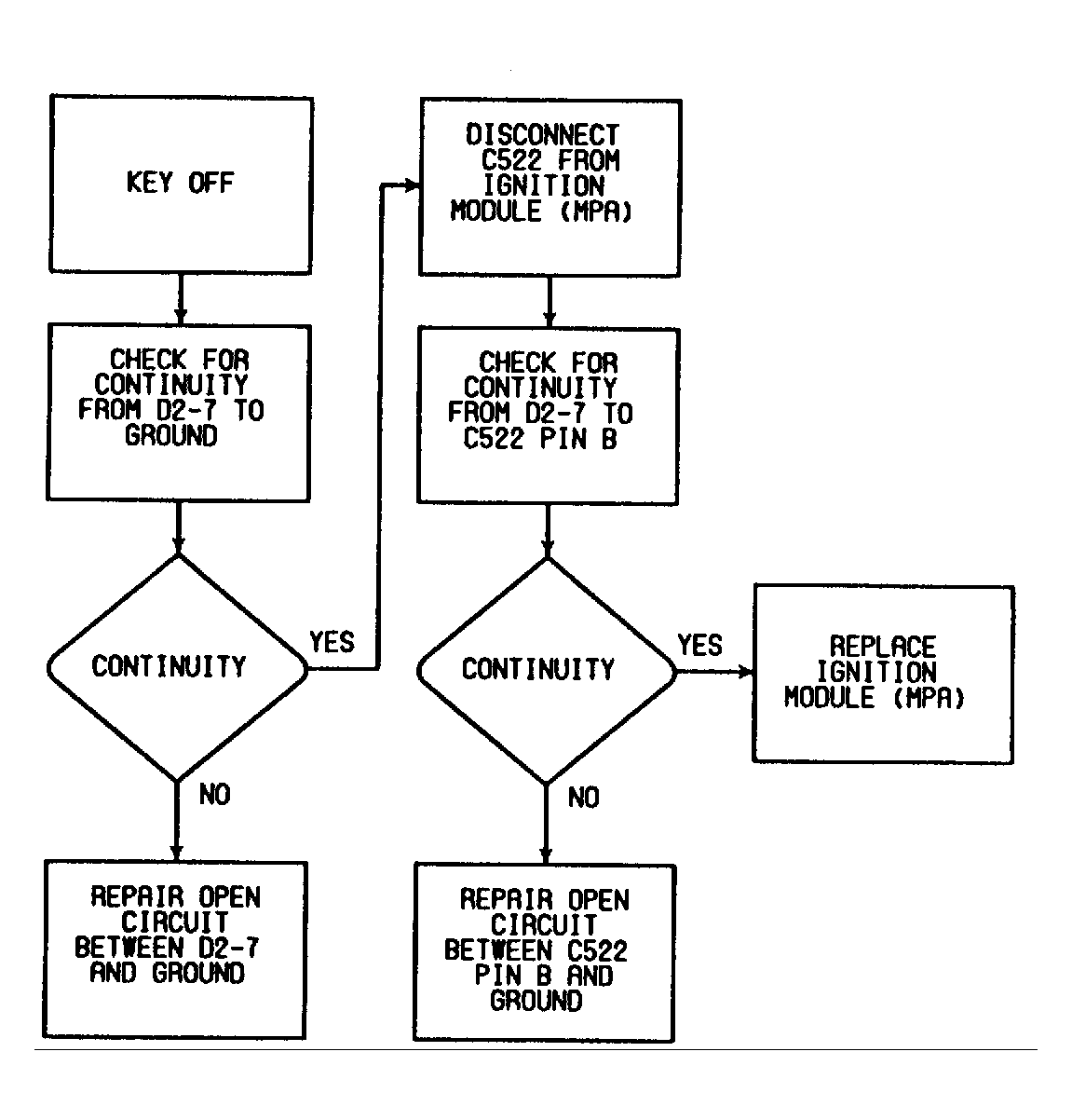

Fig 2: Fault 1222 - Flow Chart

Courtesy of CHRYSLER MOTORS
