Engine Controls - Tests W/Codes - 3.0L
›
Diagnostic Trouble Code (DTC) Charts
›
Fault 1065: O2 Sensor Reads Rich
Fault 1065: O2 Sensor Reads Rich

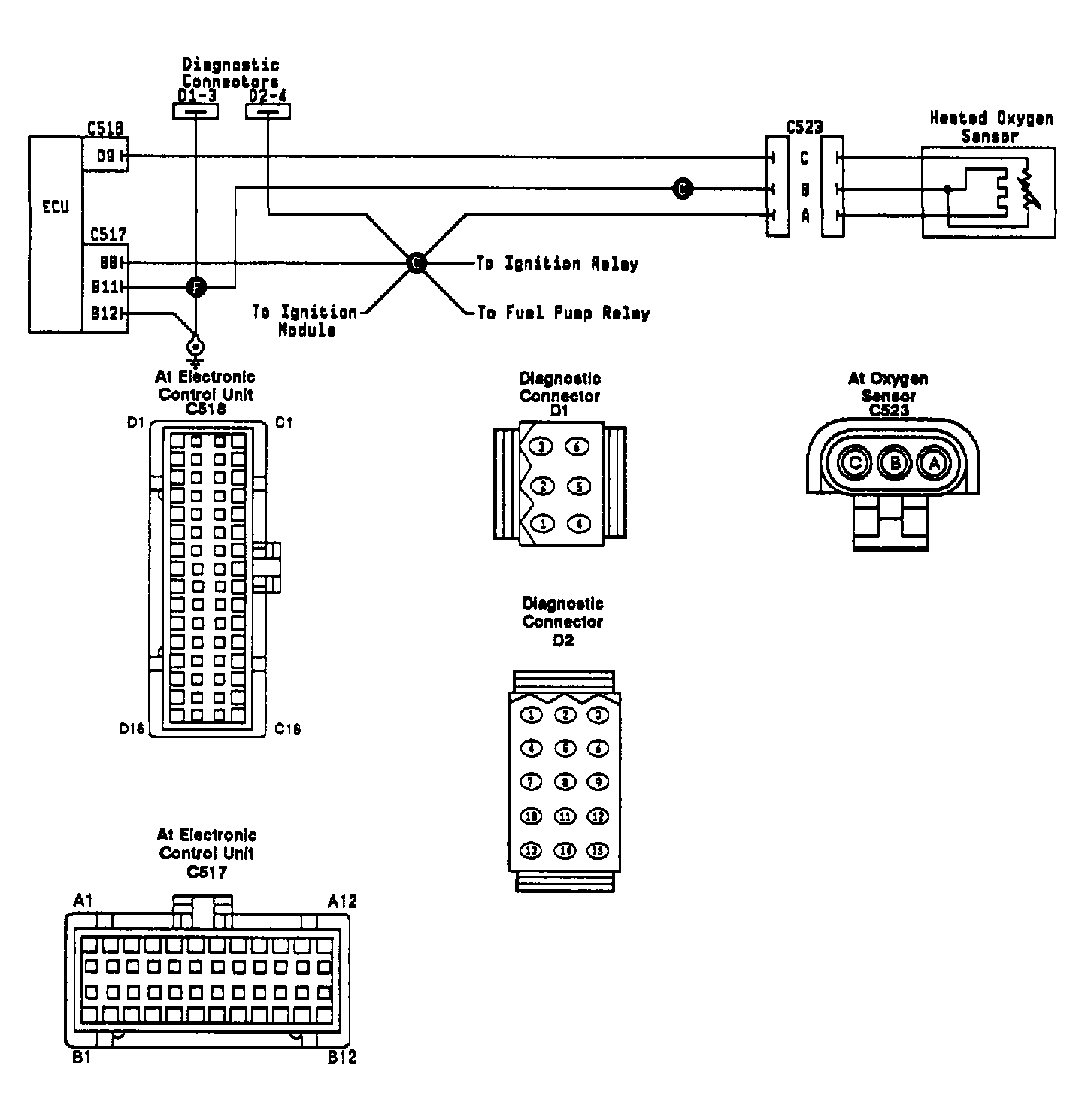

Fig 1: Fault 1065: Circuit Diagram

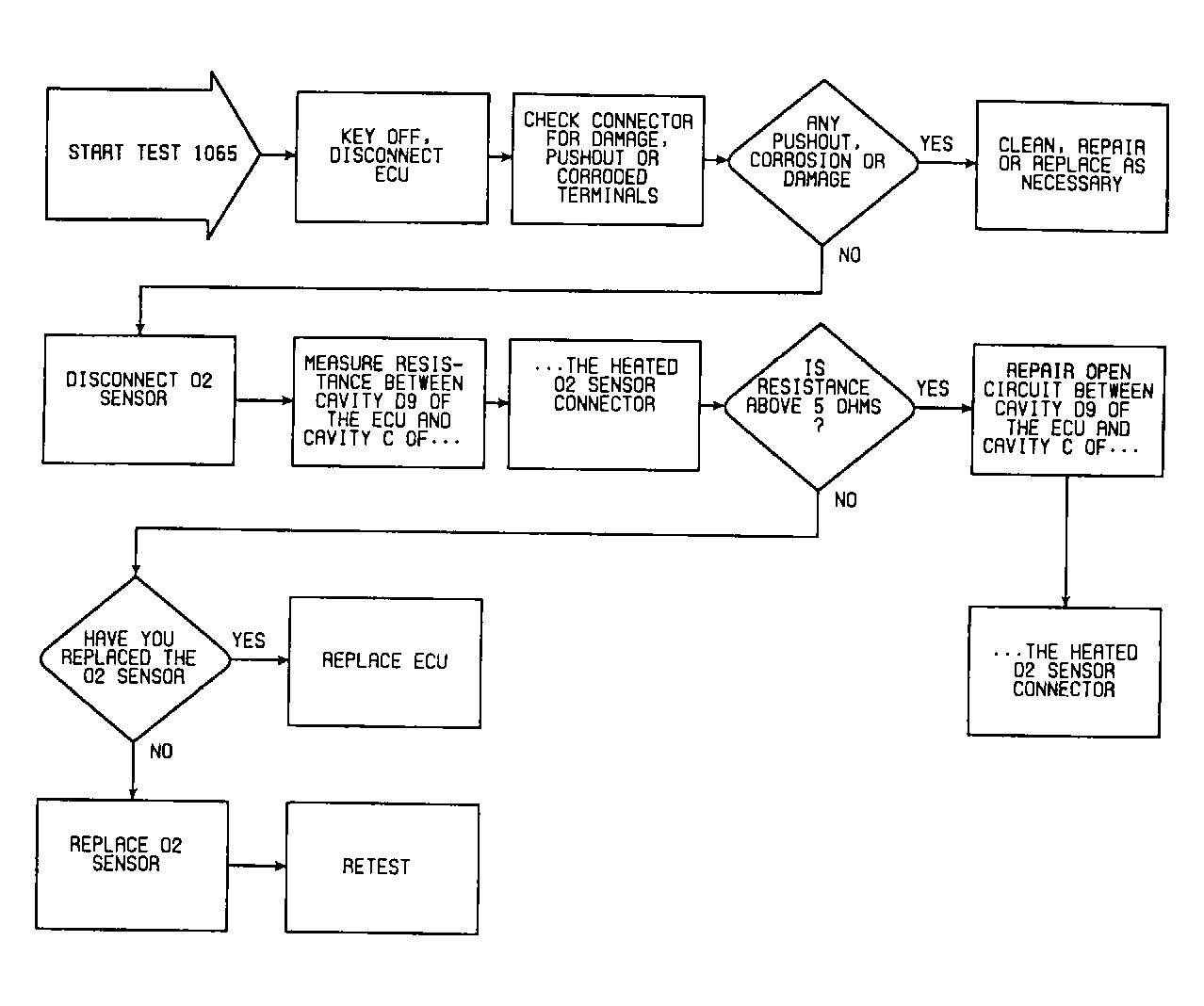

Fig 2: Fault 1065: Flow Chart
