Test 13A: RR Wheel Speed Sensor Fault
Test 13A: RR Wheel Speed Sensor Fault
Fig 1: Test 13A - RR Wheel Speed Sensor Fault, Schematic

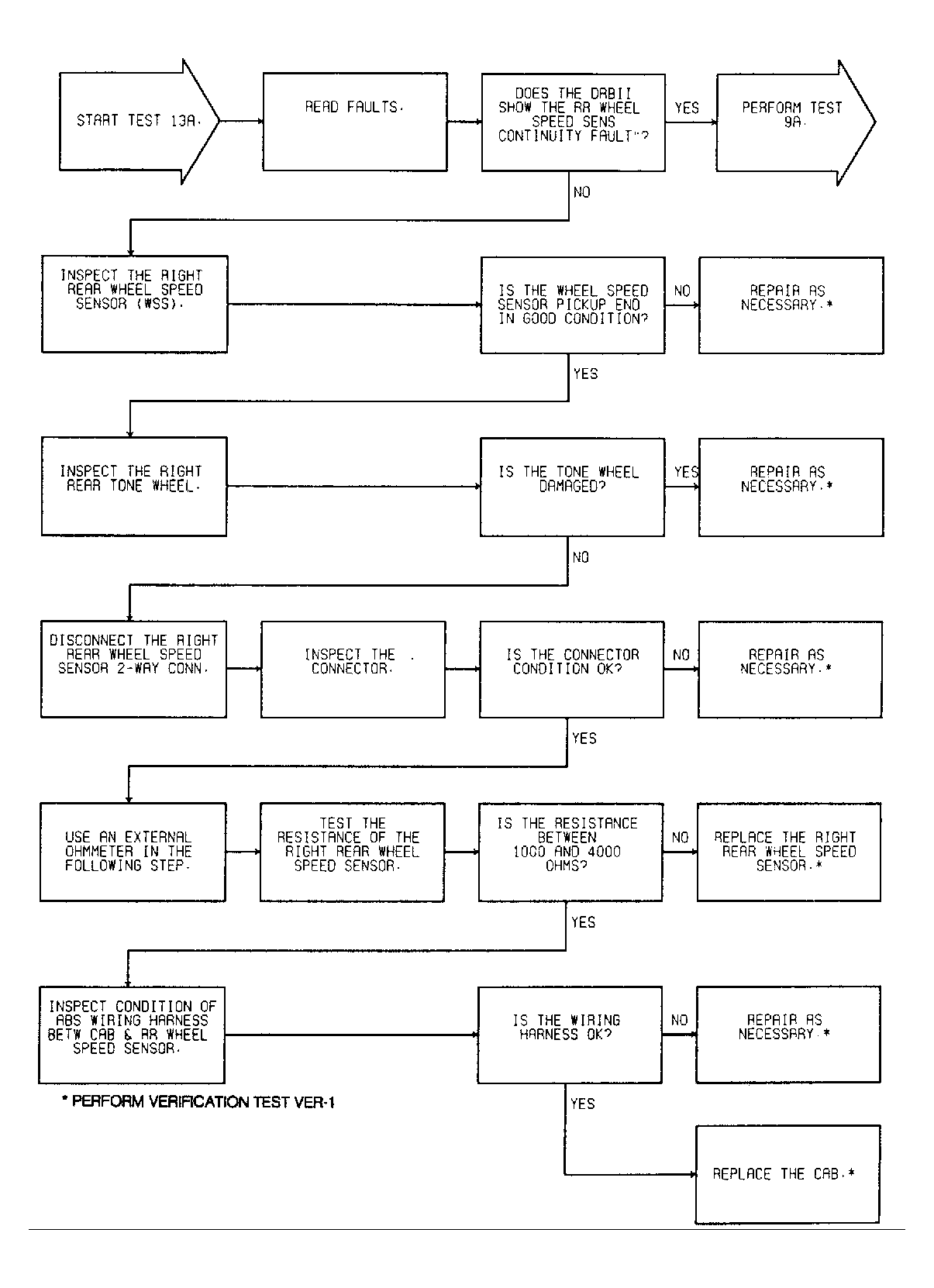

Fig 2: Test 13A - RR Wheel Speed Sensor Fault, Flow Chart
