Test 3G: Modulator Fault
Test 3G: Modulator Fault
Fig 1: Test 3G - Modulator Fault, Schematic

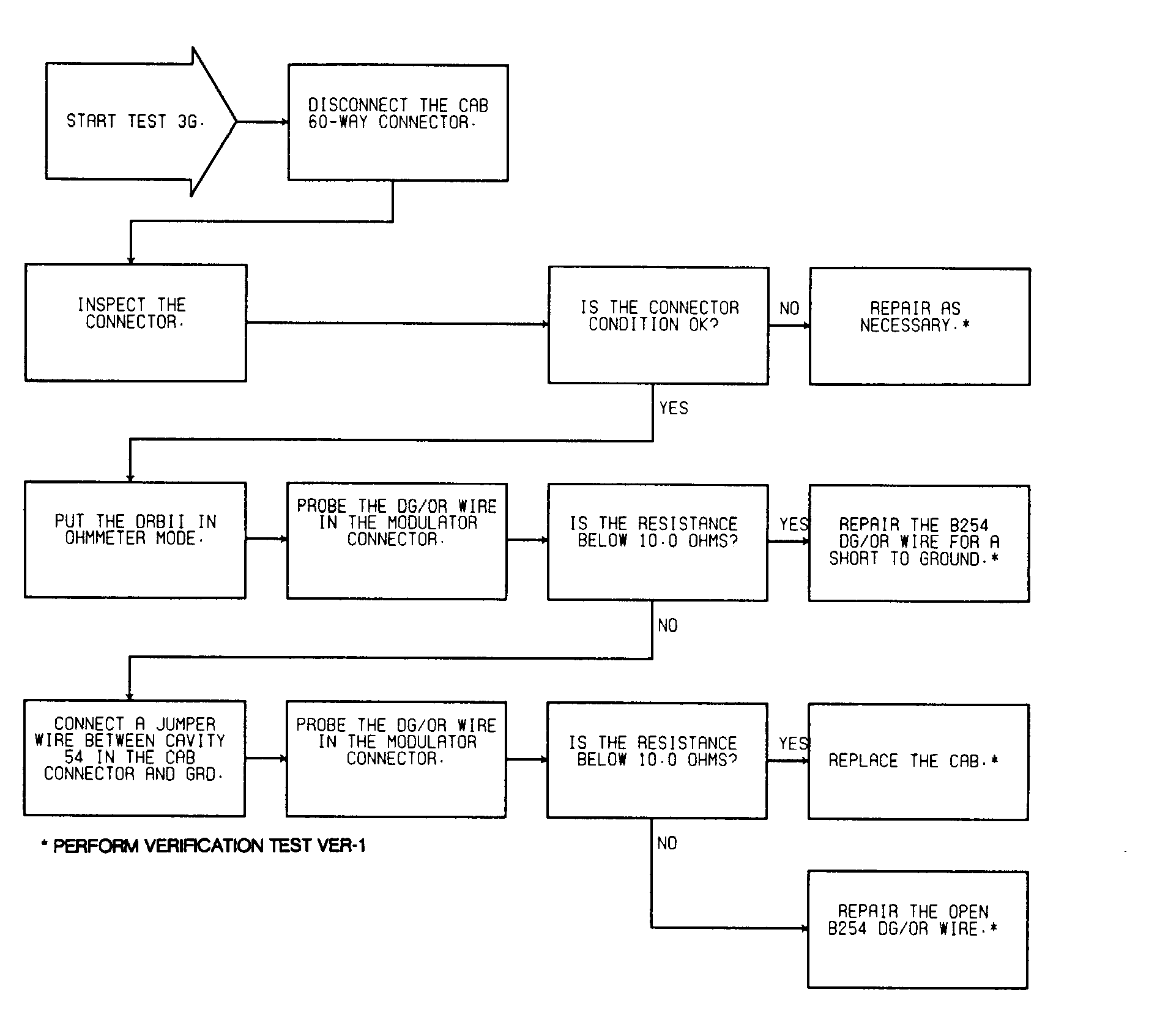

Fig 2: Test 3G - Modulator Fault, Flow Chart
