Wiring Diagrams

Also see the appropriate chassis wiring diagrams in the WIRING DIAGRAMS section.

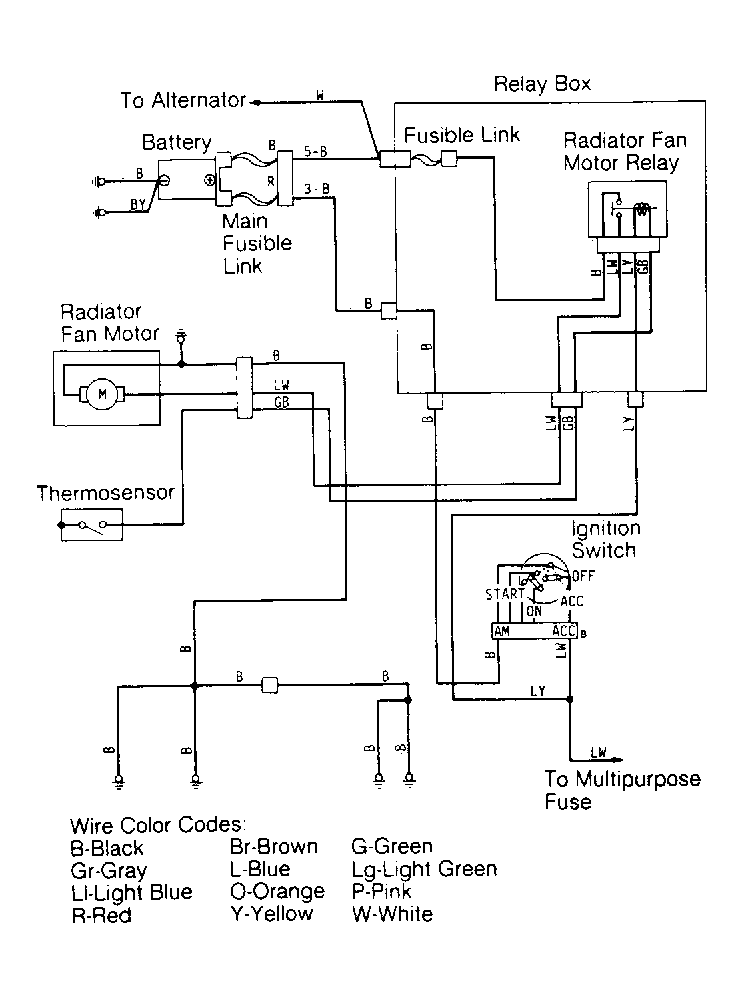

Fig 1: Cooling Fan Schematic (Colt, Colt 200 & Summit 1.5L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

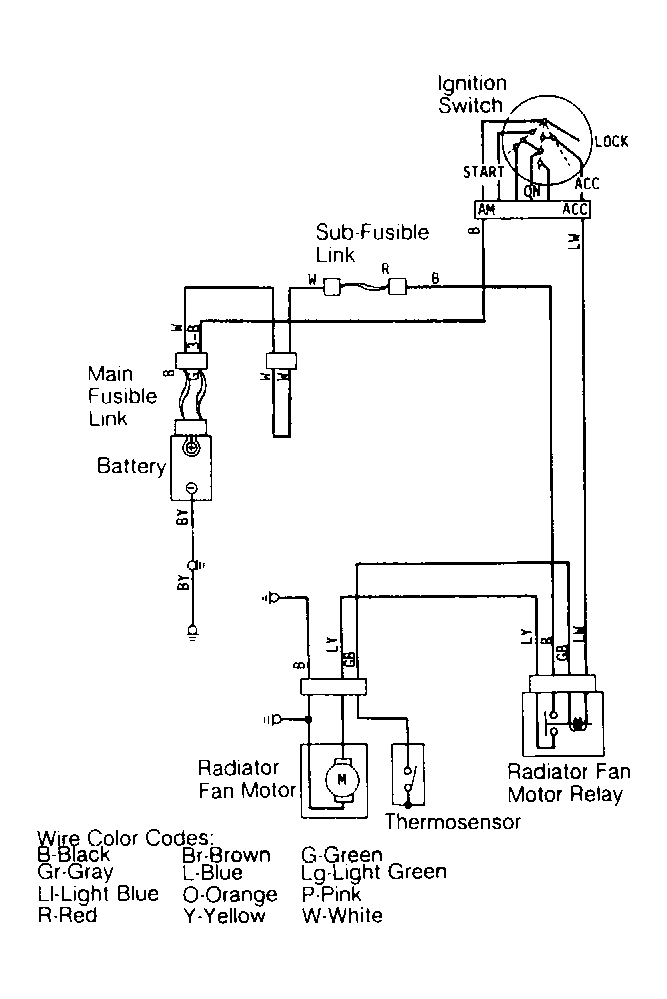

Fig 2: Cooling Fan Schematic (Colt, Colt 200 & Summit 1.6L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Cooling Fan Schematic (Colt Vista)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Cooling Fan Schematic (Colt Wagon)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
