Dr-1: Checking For Fault Codes

Fig 1: Circuit Diagram DR-1 (1.5L)

G90G15368

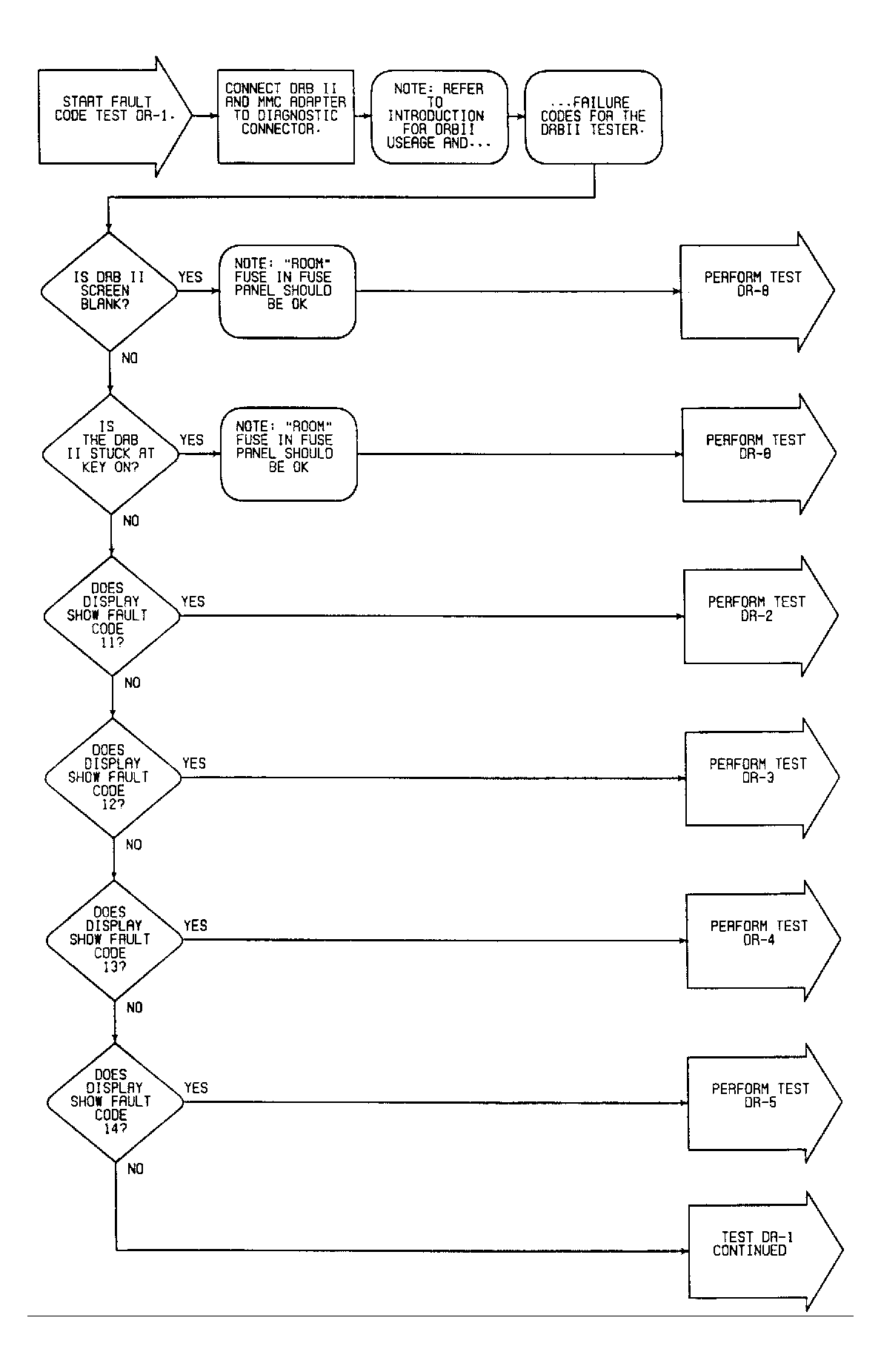

Fig 2: Flow Chart DR-1 (1.5L) (1 of 2)

G90I15436

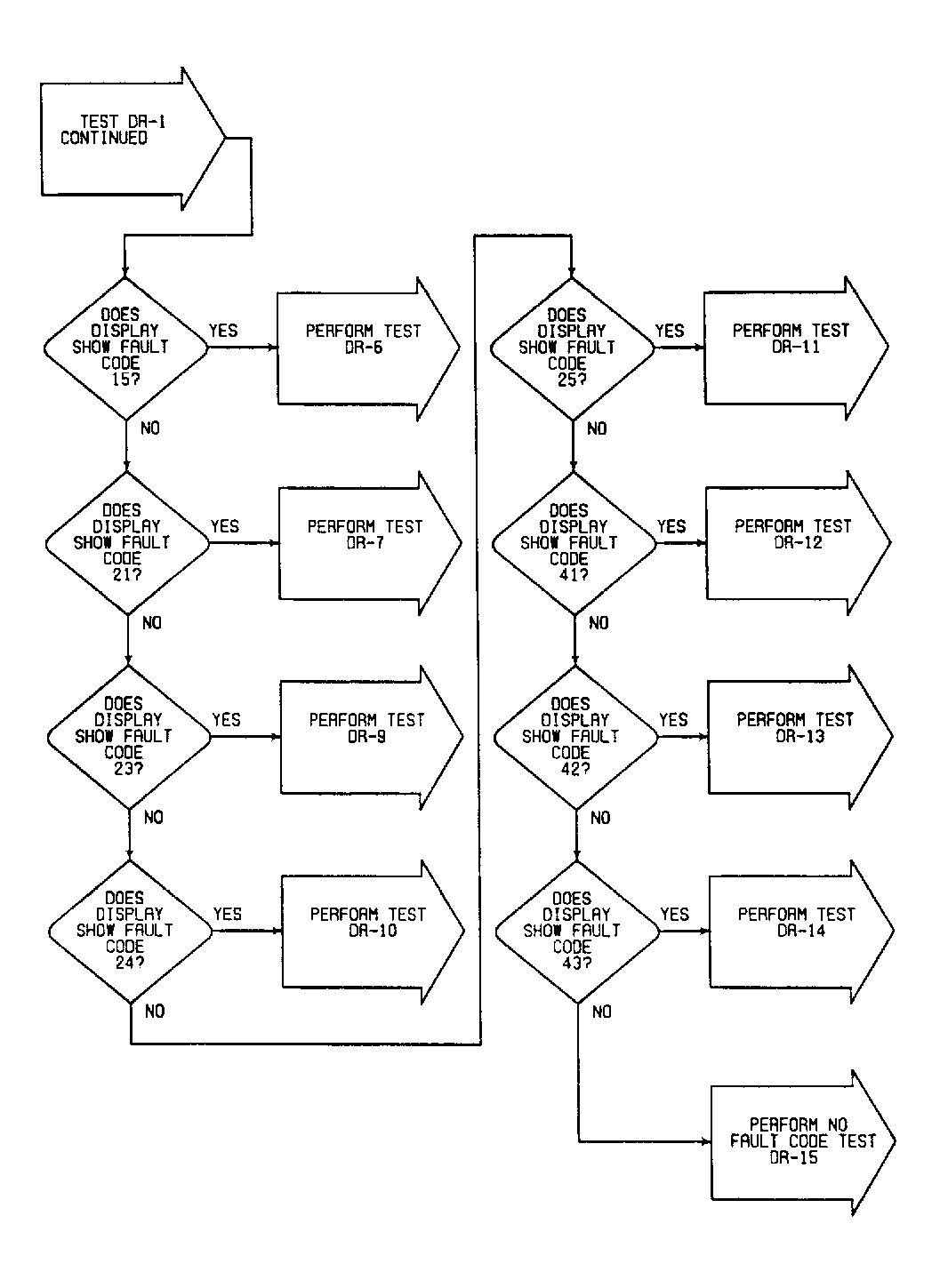

Fig 3: Flow Chart DR-1 (1.5L) (1 of 2)

G90J15437
