Dr-10: Code 24 Vehicle Speed Sensor Circuit

Fig 1: Circuit Diagram DR-10 (1.5L)

G90E15382

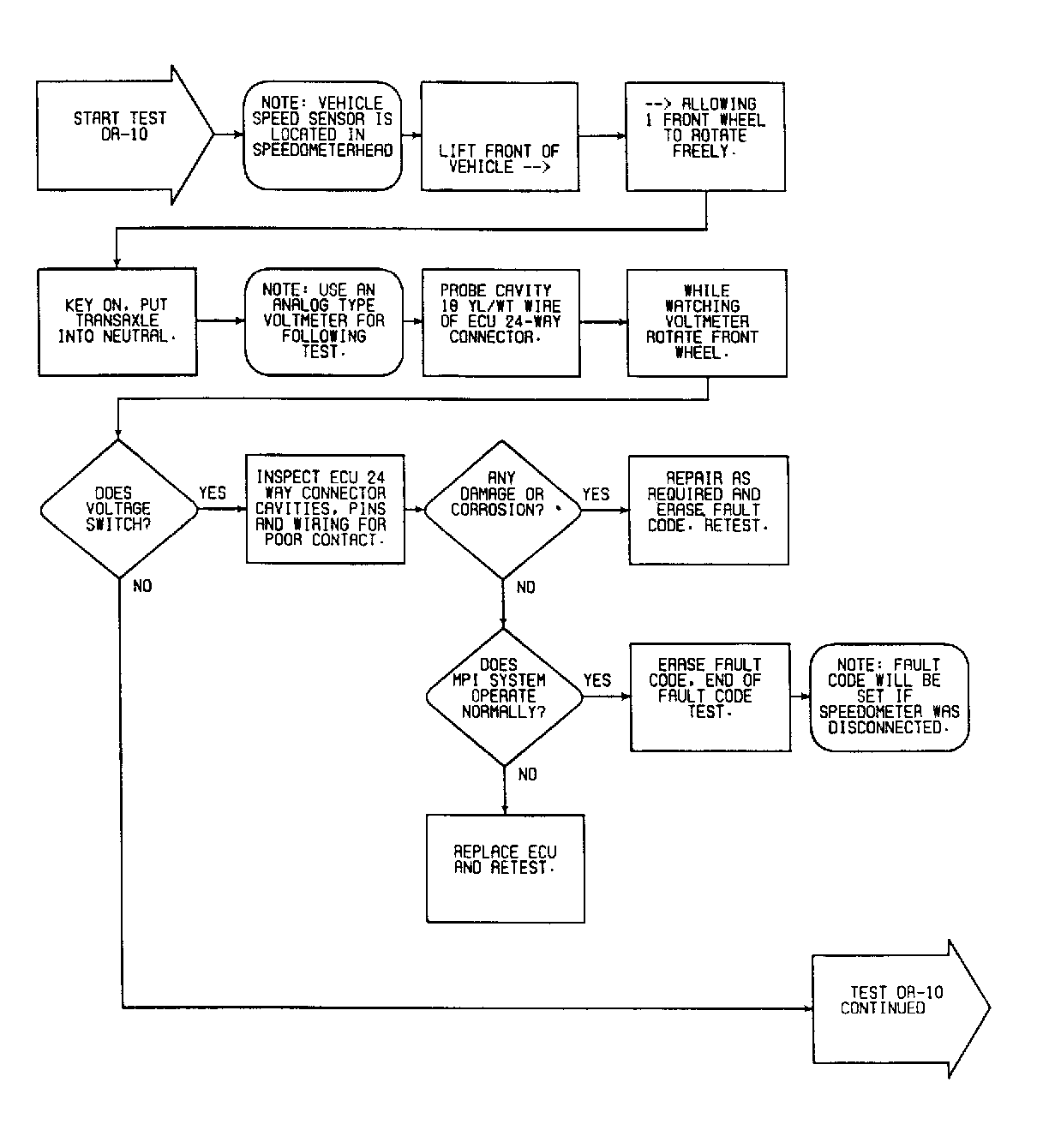

Fig 2: Flow Chart DR-10 (1.5L) (1 of 2)

G90I15451

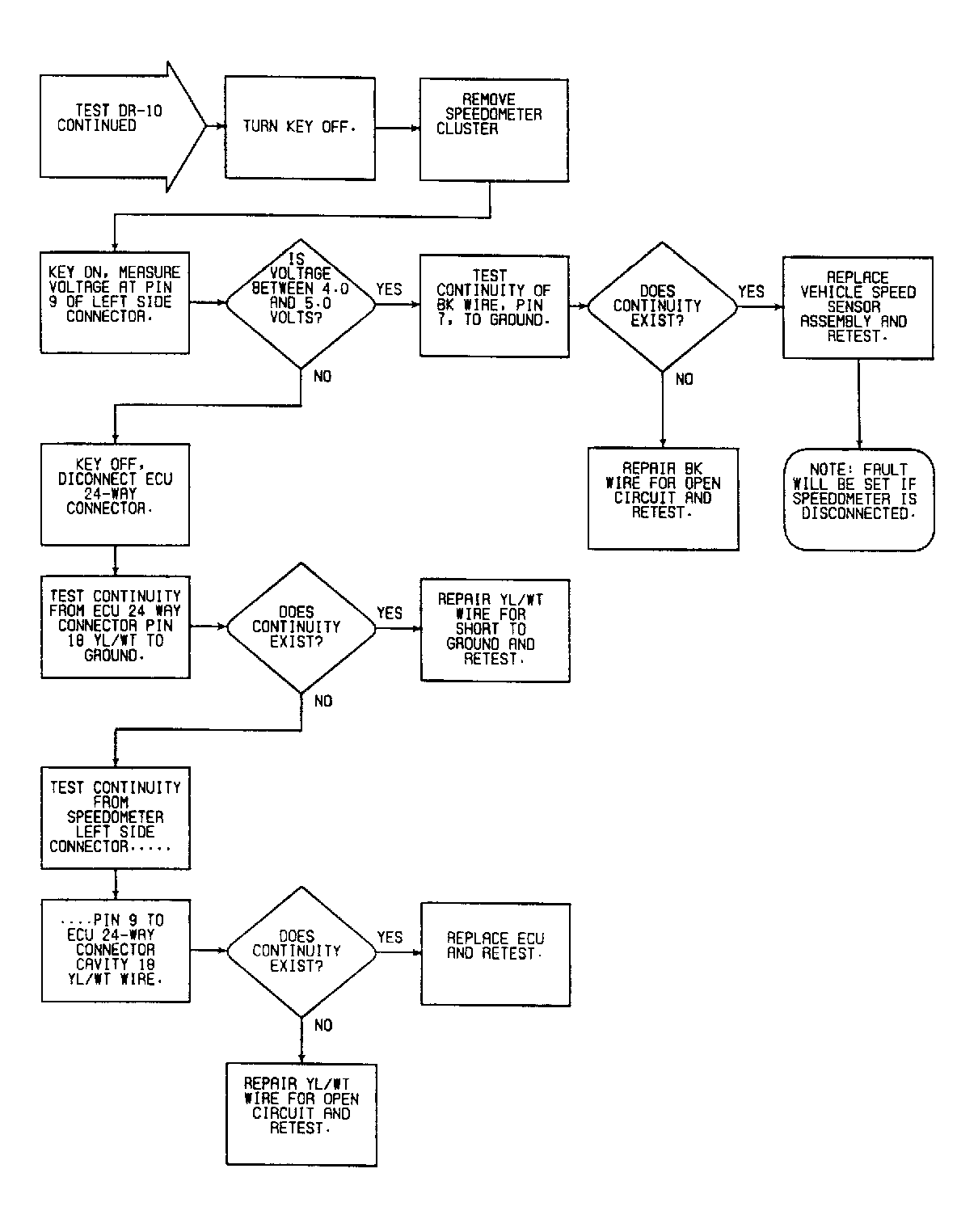

Fig 3: Flow Chart DR-10 (1.5L) (2 of 2)

G90J15452
