Dr-11: Code 25 Barometric Pressure Sensor Circuit

Fig 1: Circuit Diagram DR-11 (1.5L)

G90G15376

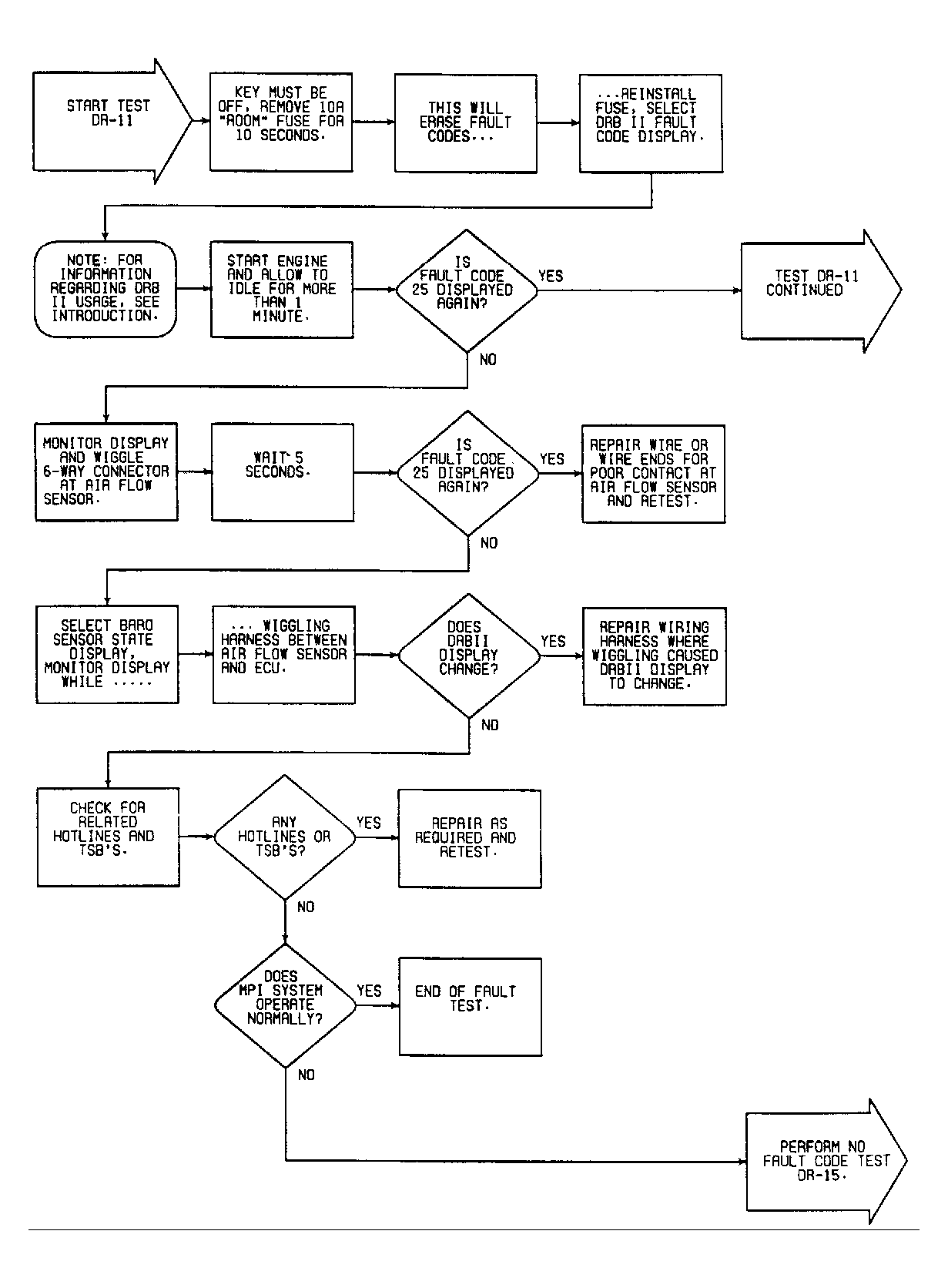

Fig 2: Flow Chart DR-11 (1.5L) (1 of 2)

G90A15453

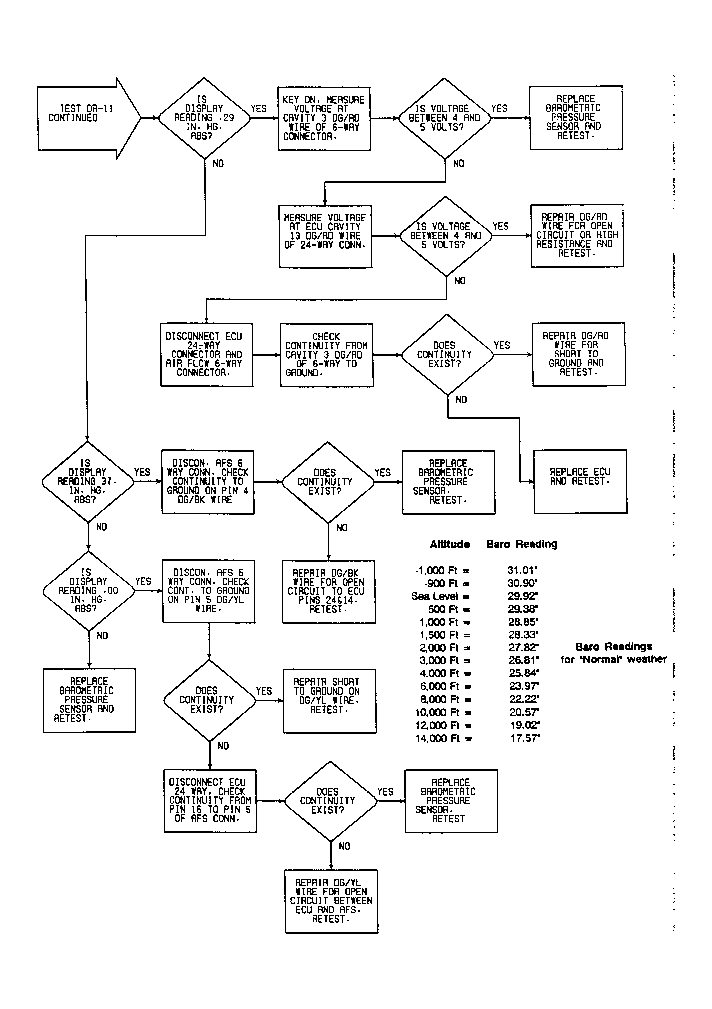

Fig 3: Flow Chart DR-11 (1.5L) (2 of 2)

G90B15454
