Engine Controls - Tests W/Codes
›
Test Charts - 1.5L
›
Dr-13: Code 42 Fuel Pump Circuit
Dr-13: Code 42 Fuel Pump Circuit
Fig 1: Circuit Diagram DR-13 (1.5L)

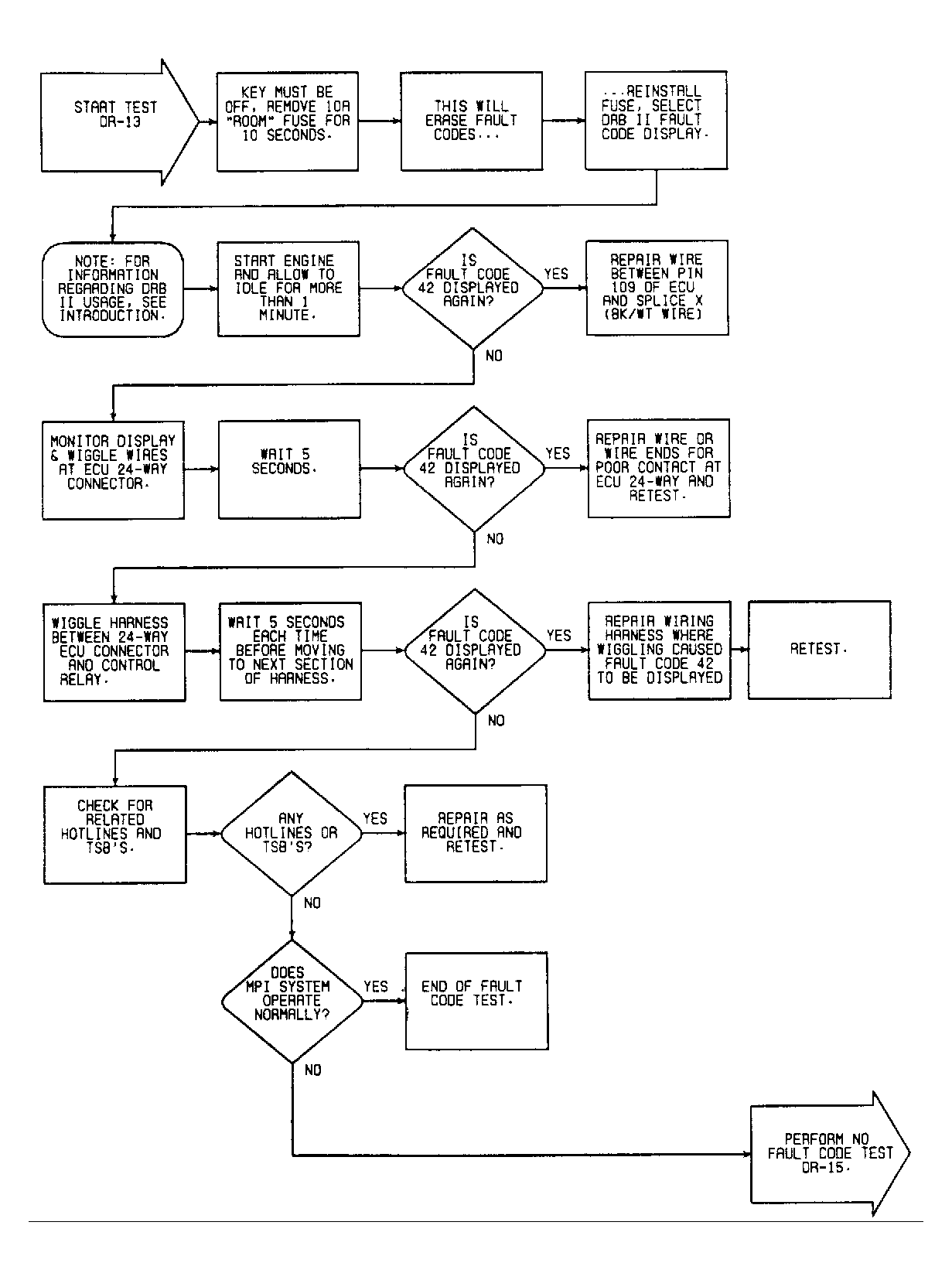

Fig 2: Flow Chart DR-13 (1.5L)
