Dr-14: Code 43 EGR Temperature Sensor Circuit

Fig 1: Circuit Diagram DR-14 (1.5L)

G90I15386

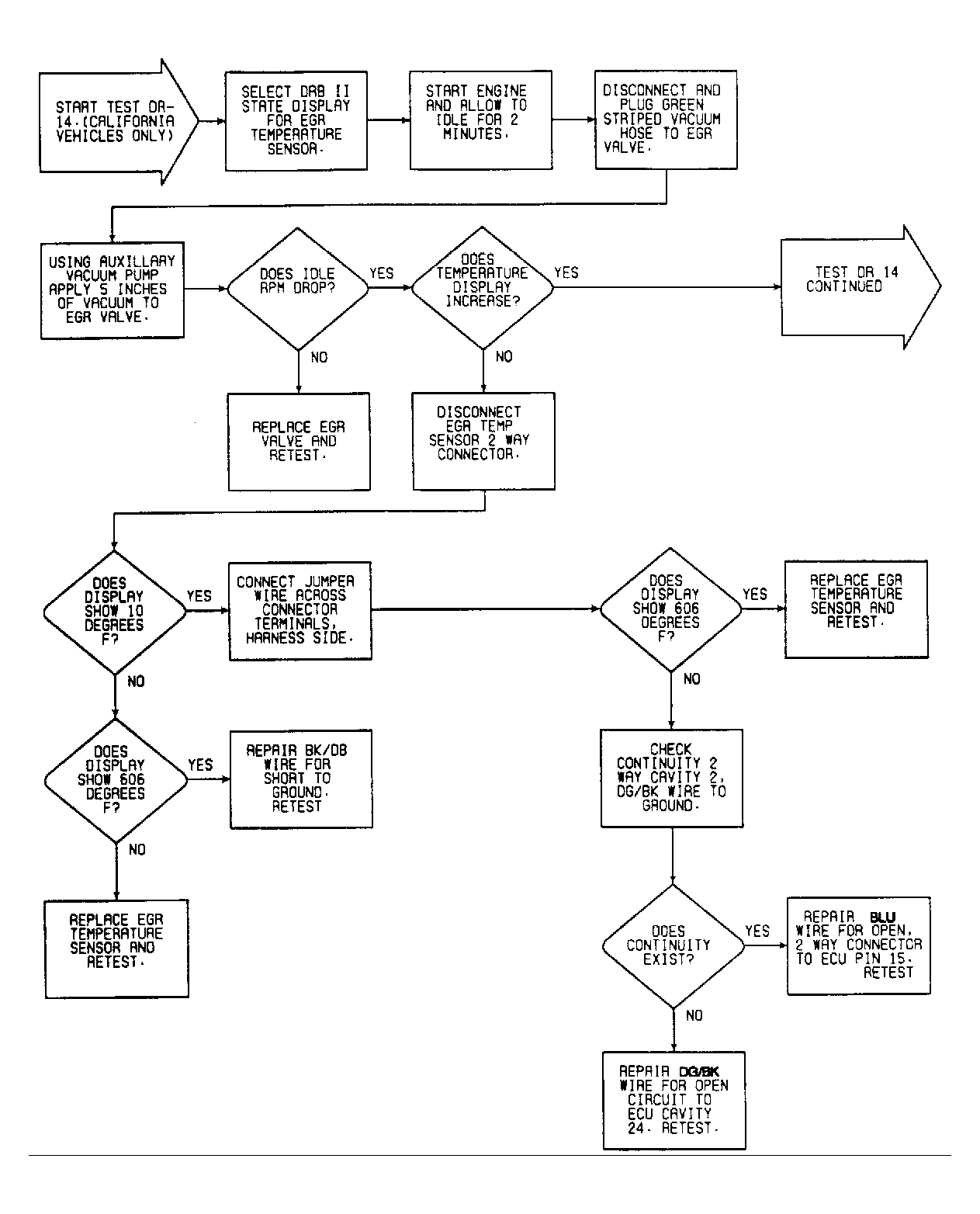

Fig 2: Flow Chart DR-14 (1.5L) (1 of 3)

G90F15458

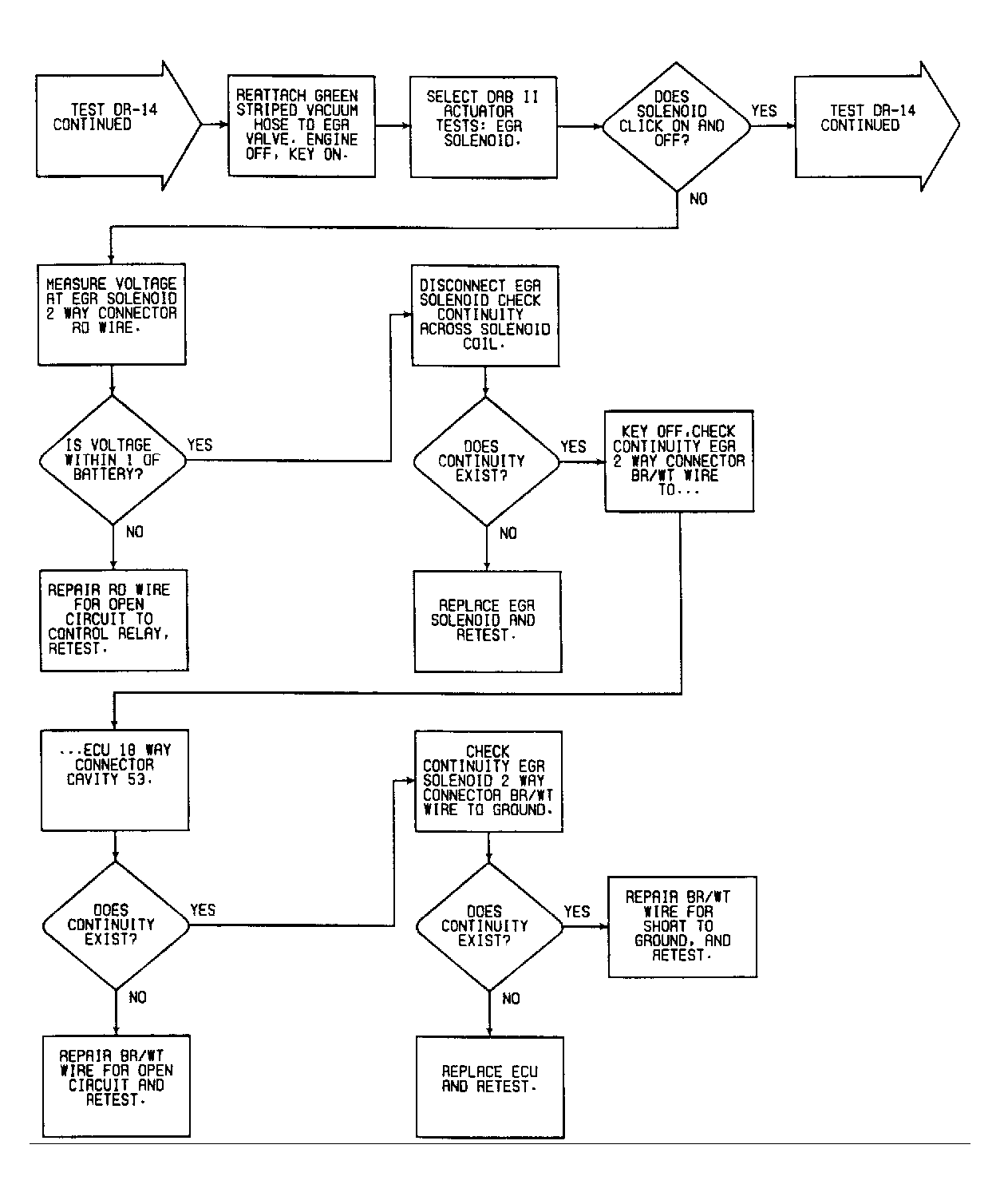

Fig 3: Flow Chart DR-14 (1.5L) (2 of 3)

G90G15459

Fig 4: Flow Chart DR-14 (1.5L) (3 of 3)

G90J15460
