Dr-5: Code 14 Throttle Position Sensor Circuit

Fig 1: Circuit Diagram DR-5 (1.5L)

G90H15377

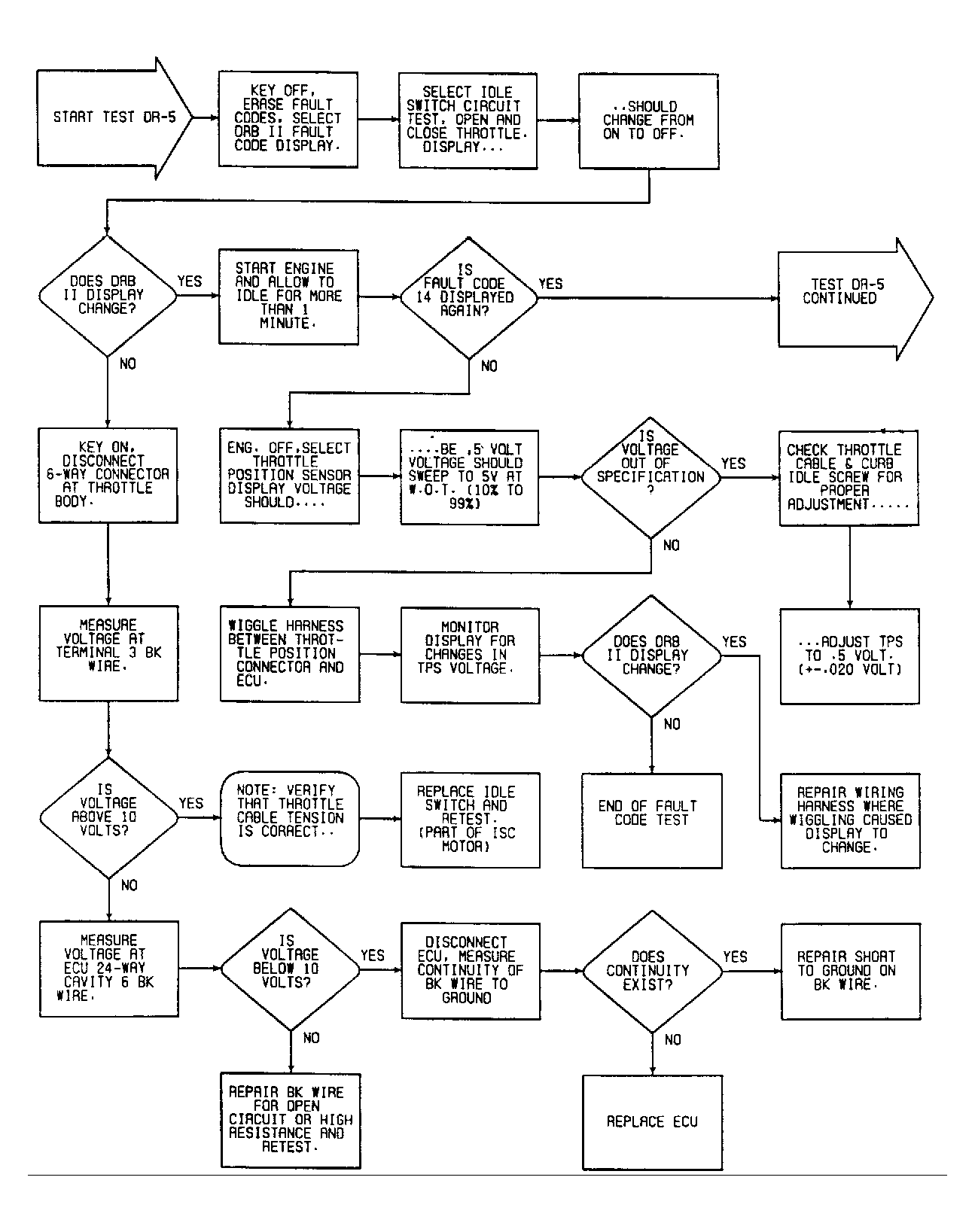

Fig 2: Flow Chart DR-5 (1.5L) (1 of 2)

G90H15443

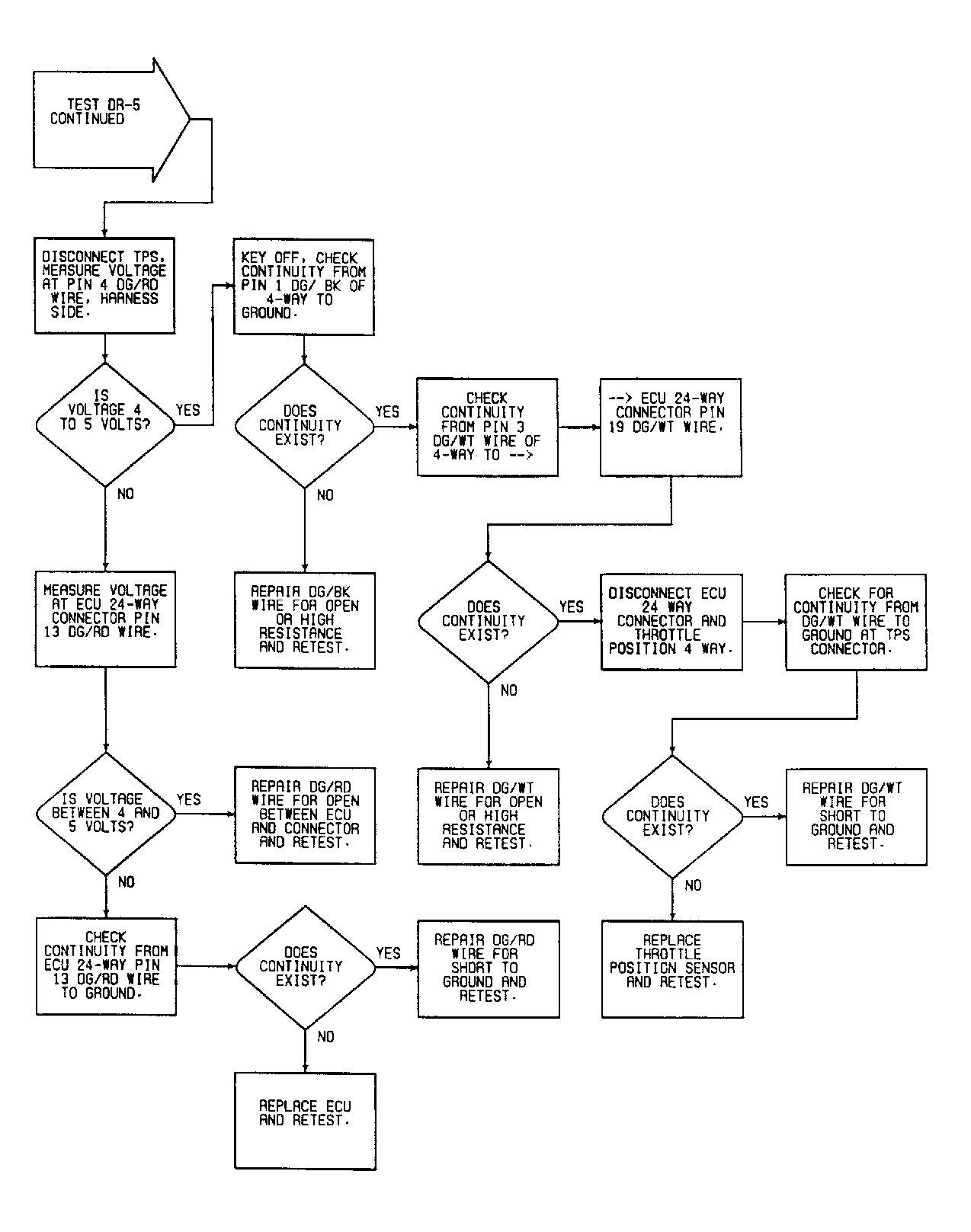

Fig 3: Flow Chart DR-5 (1.5L) (2 of 2)

G90I15444
