Dr-7: Code 21 Coolant Temperature Sensor Circuit

Fig 1: Circuit Diagram DR-7 (1.5L)

G90J15379

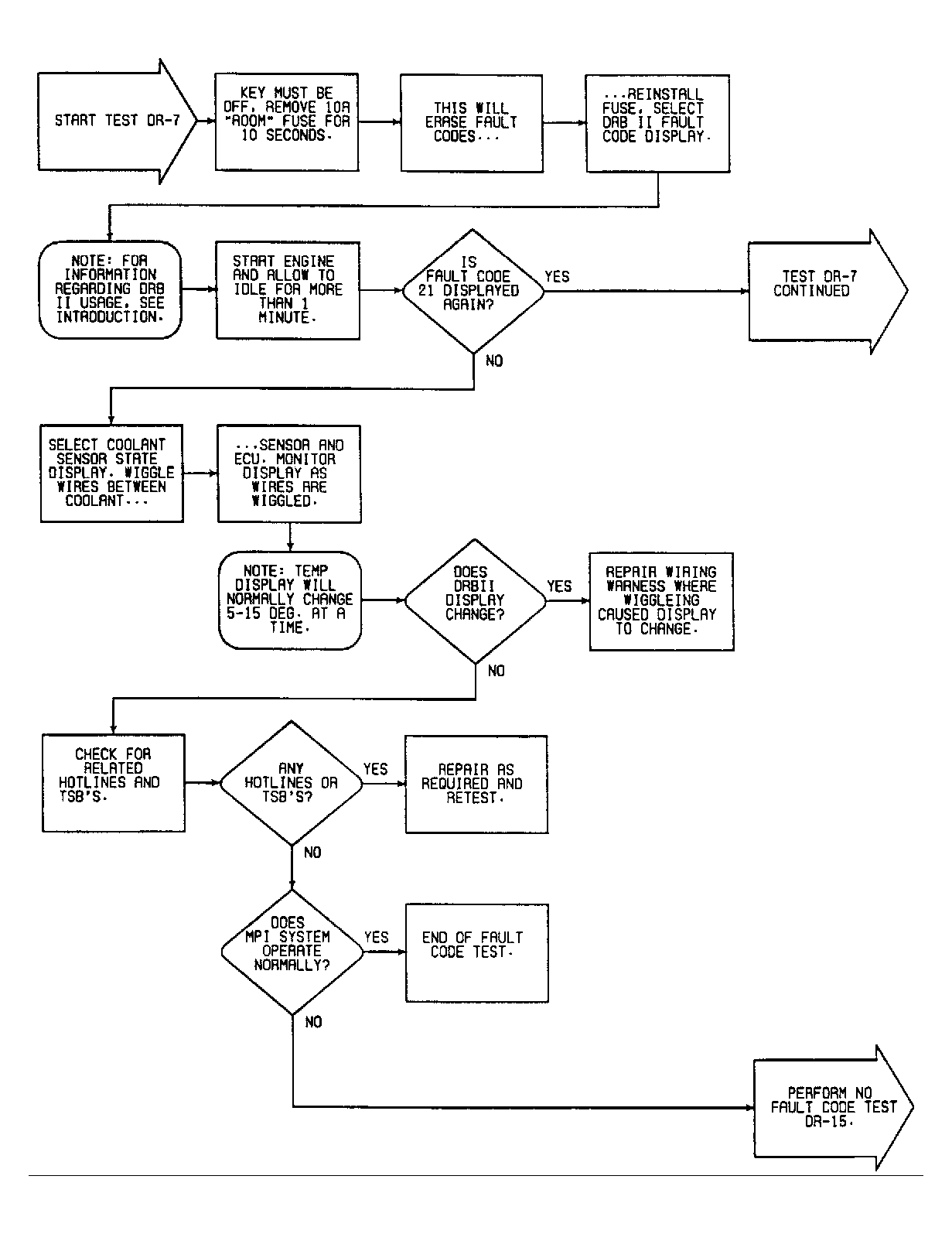

Fig 2: Flow Chart DR-7 (1.5L) (1 of 2)

G90B15447

Fig 3: Flow Chart DR-7 (1.5L) (2 of 2)

G90C15448
