NS-2: Checking For Fuel Pressure
NS-2: Checking For Fuel Pressure
Fig 1: Circuit Diagram NS-2 (1.5L)

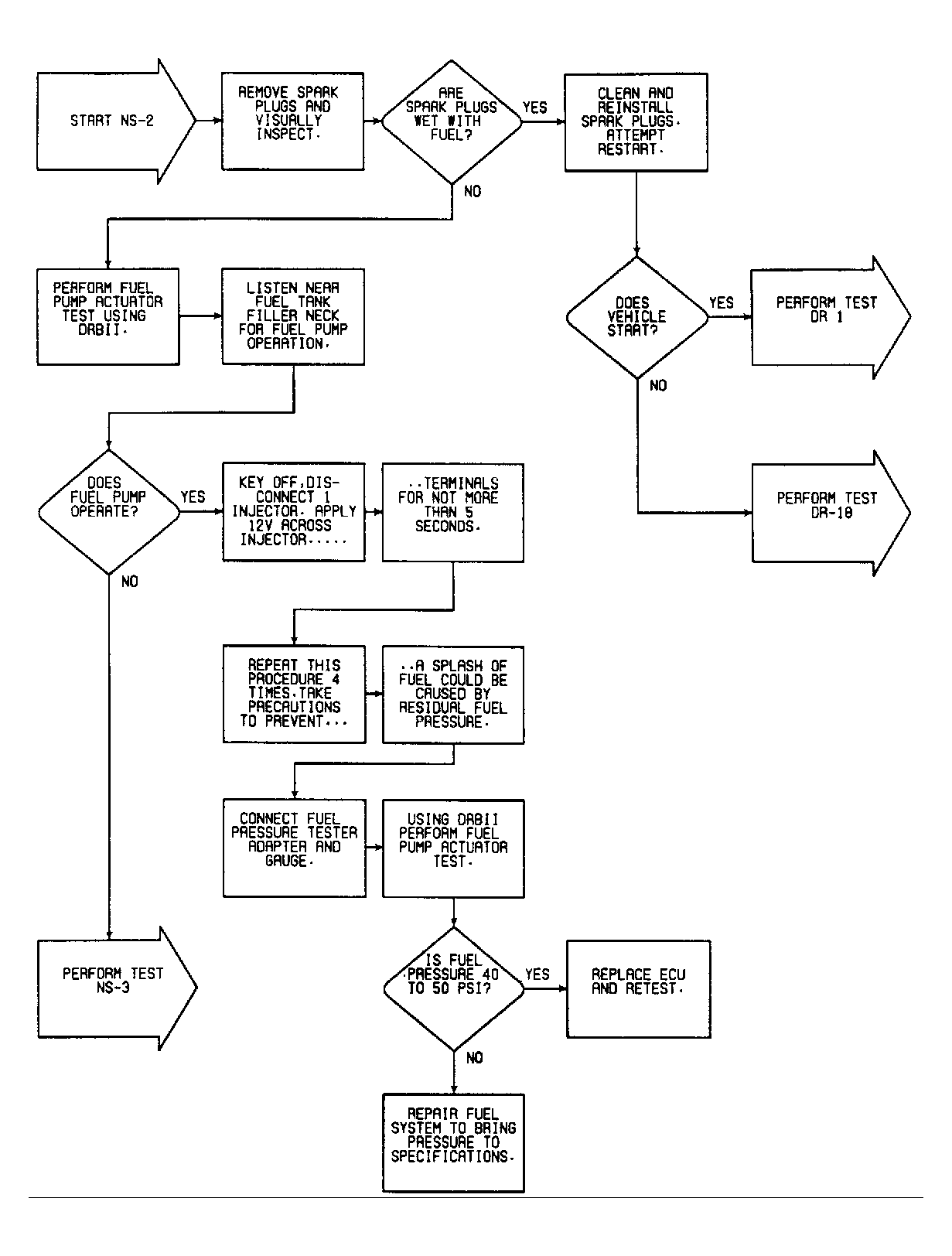

Fig 2: Flow Chart NS-2 (1.5L)
