NS-5: Testing Crank Angle Sensor Circuit

Fig 1: Circuit Diagram NS-5 (1.5L)

G90C15372

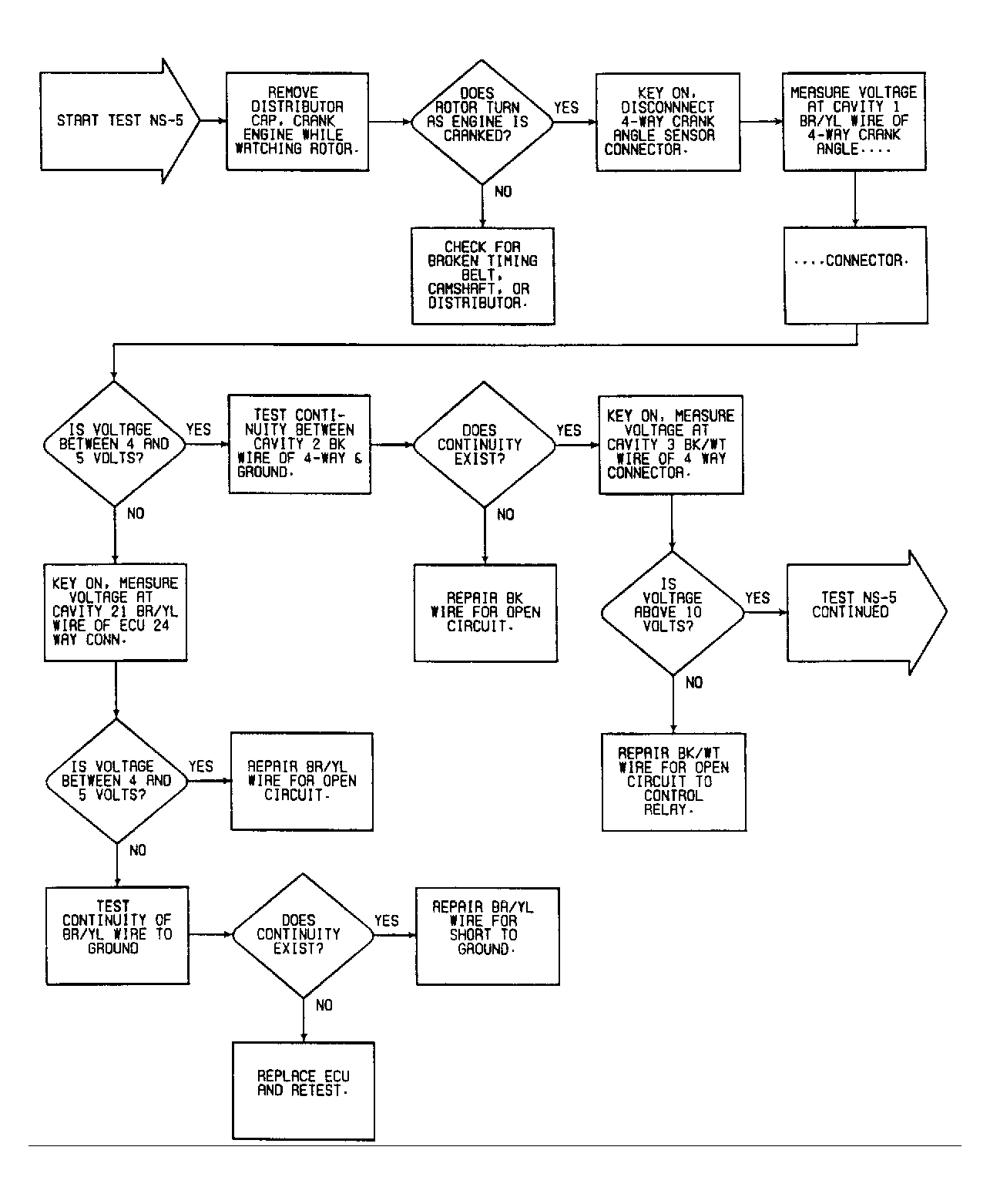

Fig 2: Flow Chart NS-5 (1.5L) (1 of 2)

G90F15433

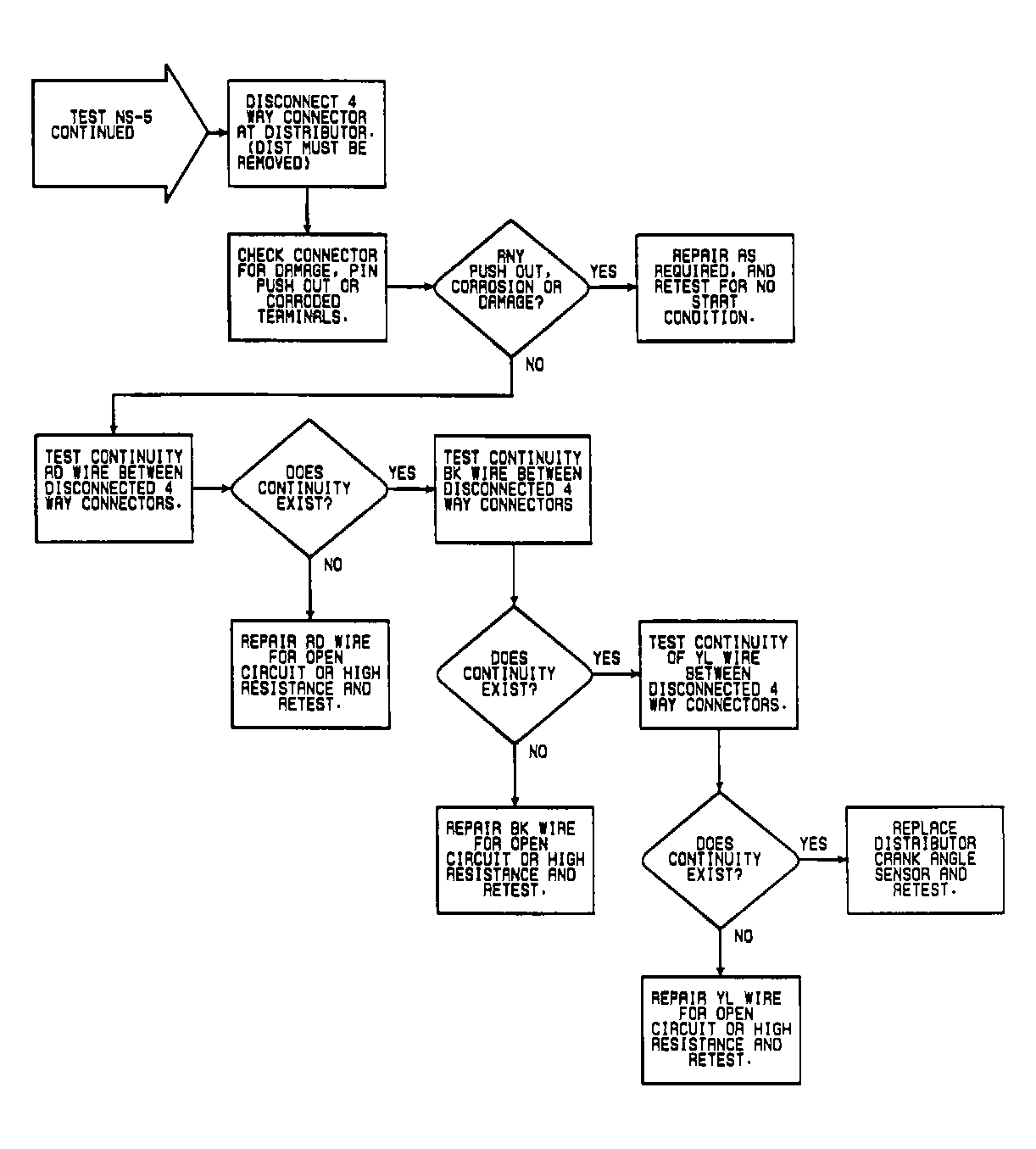

Fig 3: Flow Chart NS-5 (1.5L) (2 of 2)

G90G15434
