Dr-12: Code 41 Injector Circuit

Fig 1: Circuit Diagram DR-12 (1.6L)

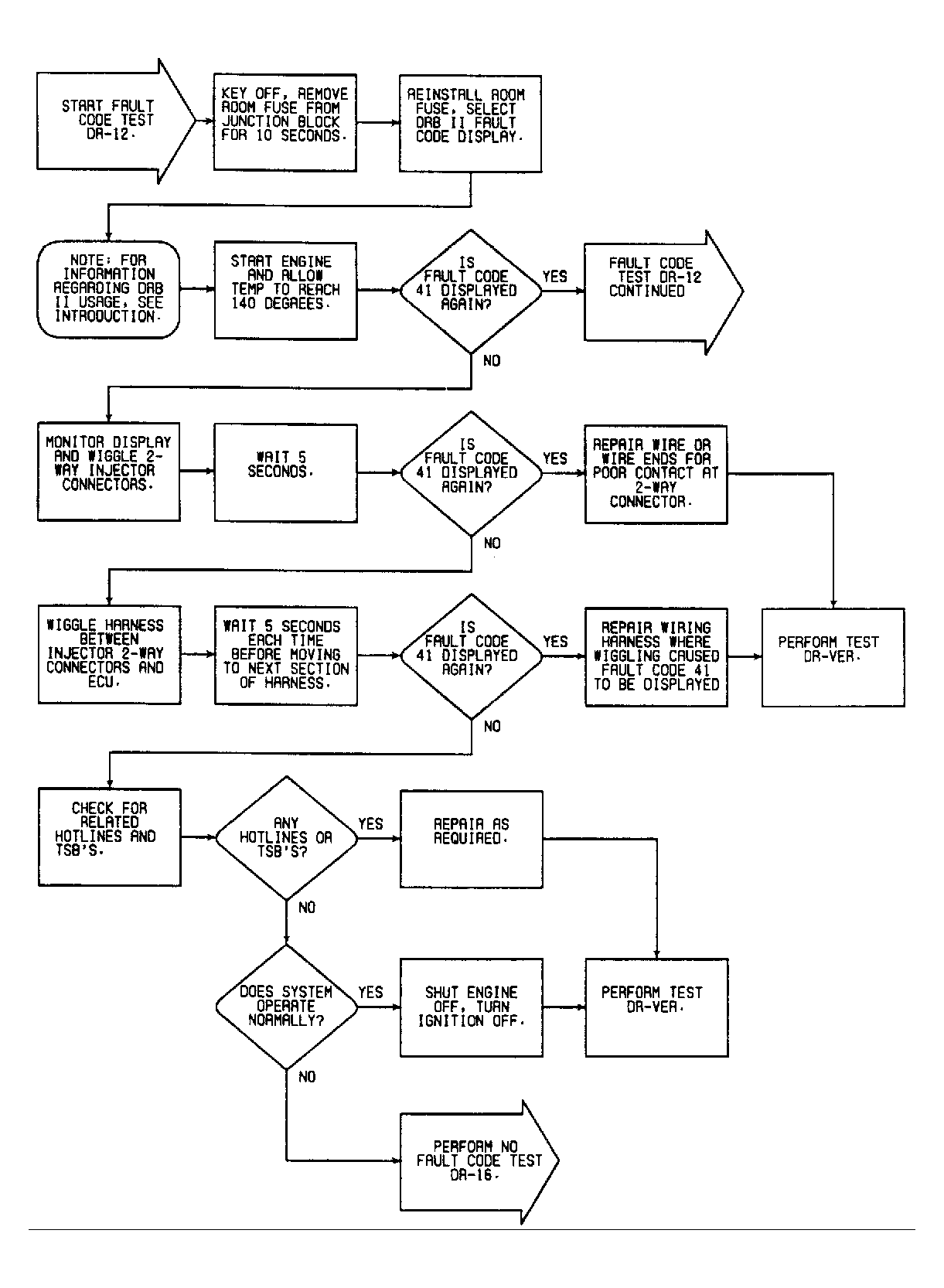

Fig 2: Flow Chart DR-12 (1.6L) (1 of 5)

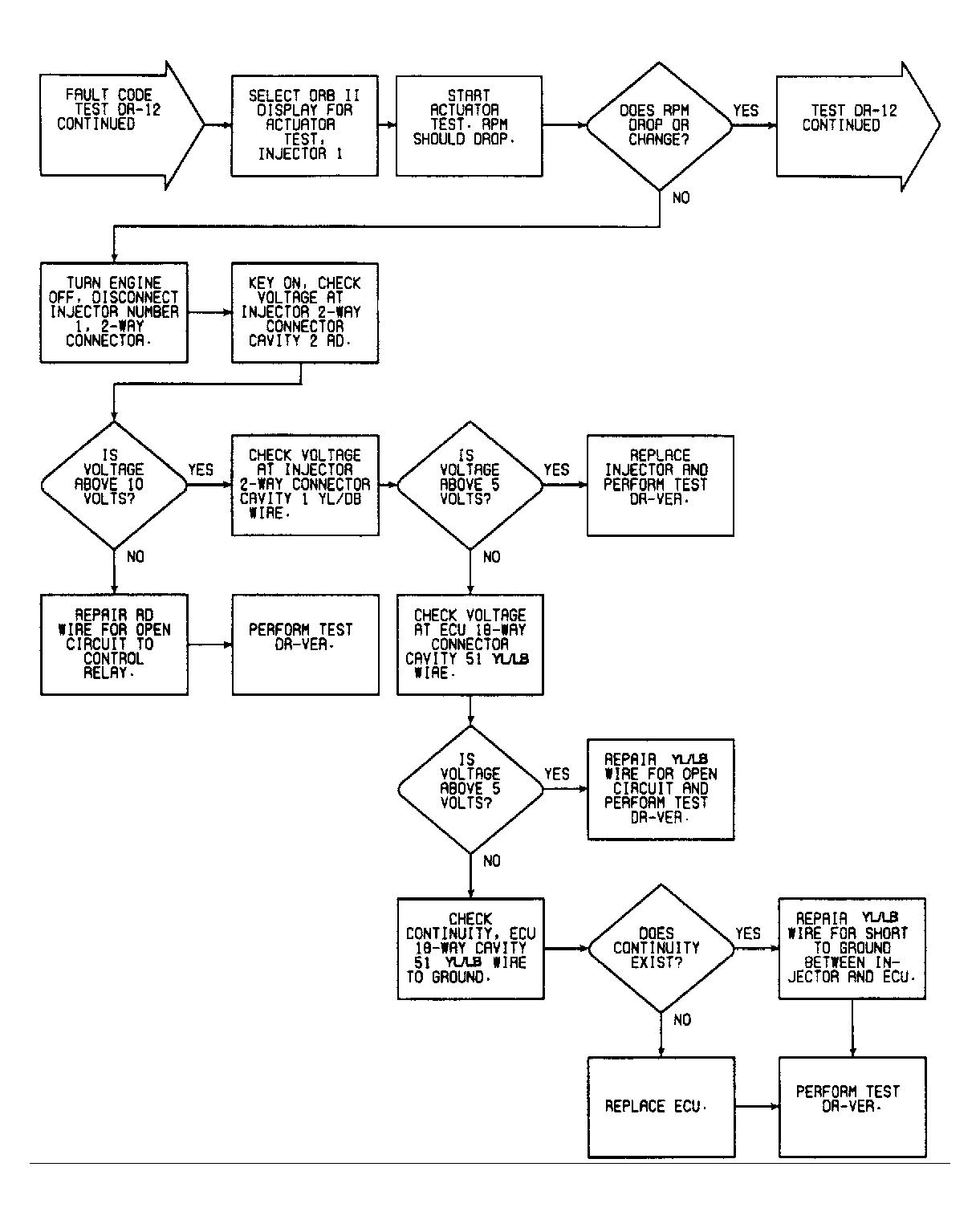

Fig 3: Flow Chart DR-12 (1.6L) (2 of 5)

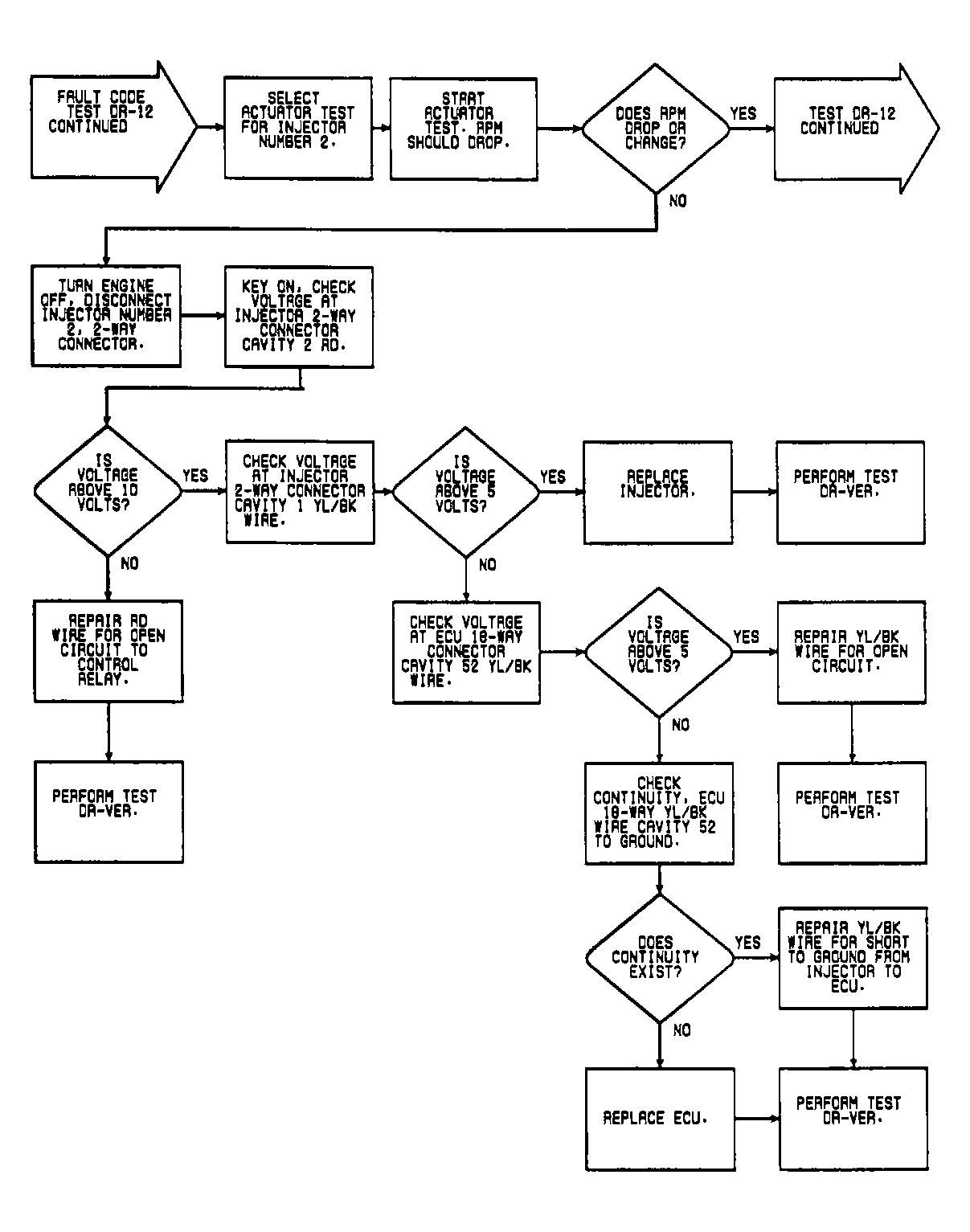

Fig 4: Flow Chart DR-12 (1.6L) (3 of 5)

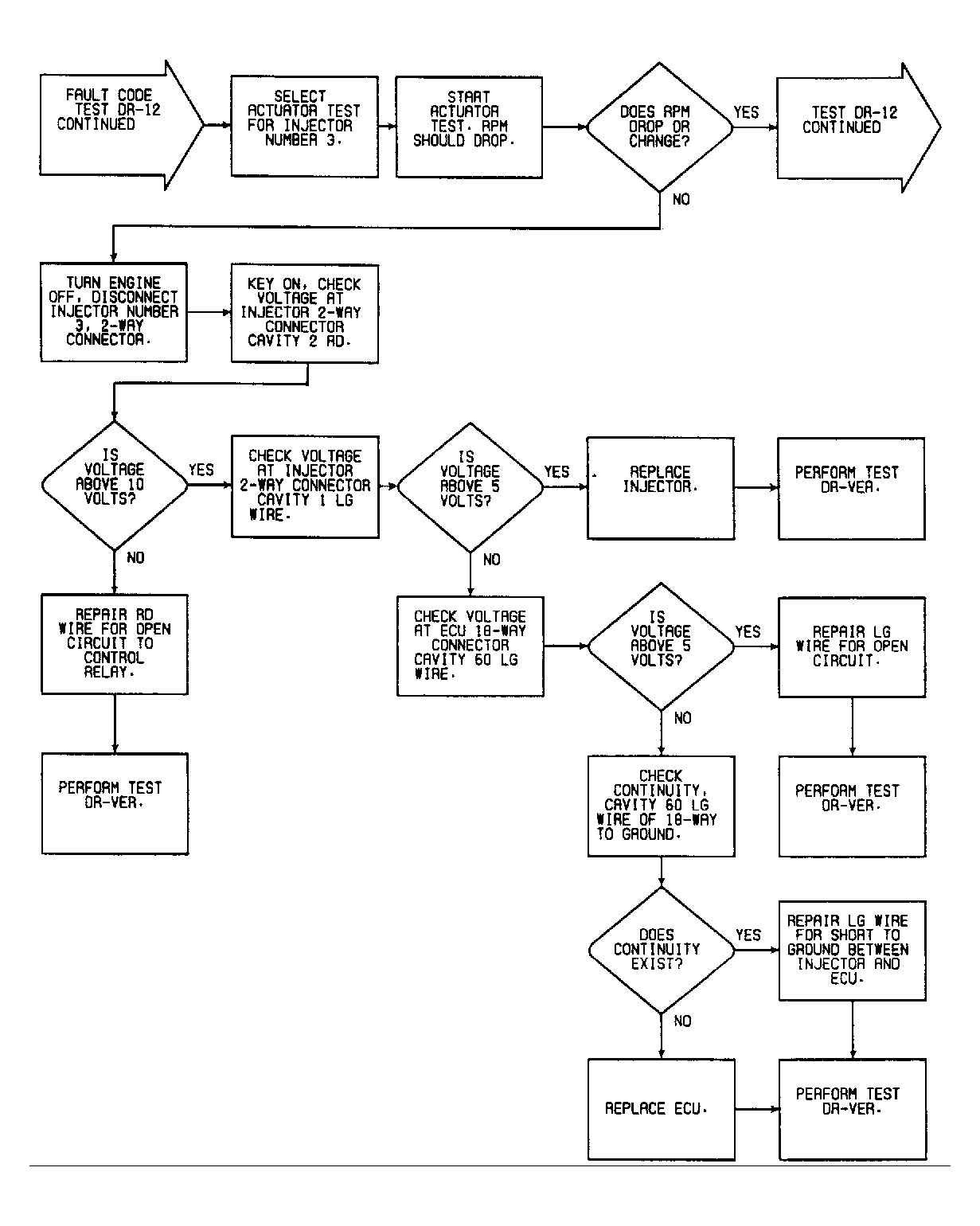

Fig 5: Flow Chart DR-12 (1.6L) (4 of 5)

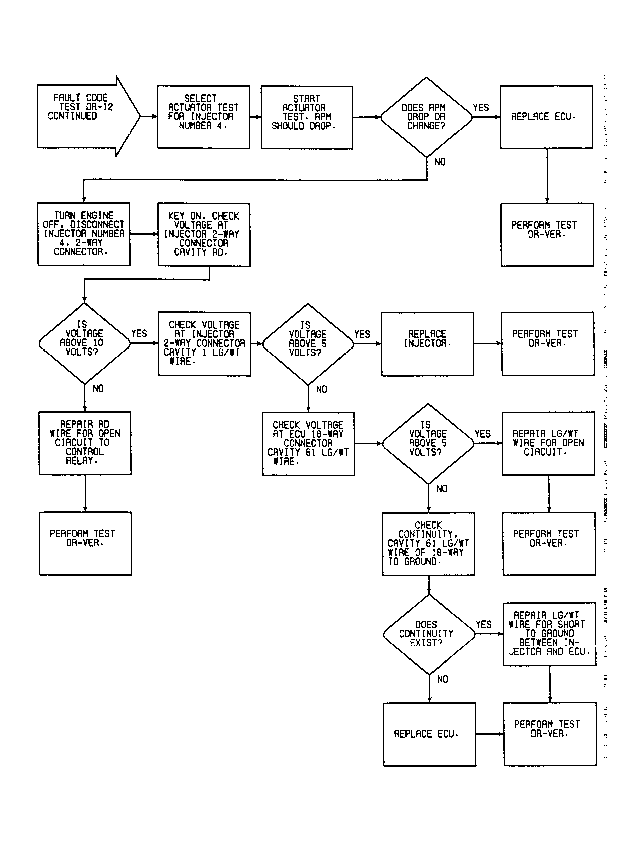

Fig 6: Flow Chart DR-12 (1.6L) (5 of 5)
