Dr-18: No Fault Code Fuel Pressure Test
Dr-18: No Fault Code Fuel Pressure Test

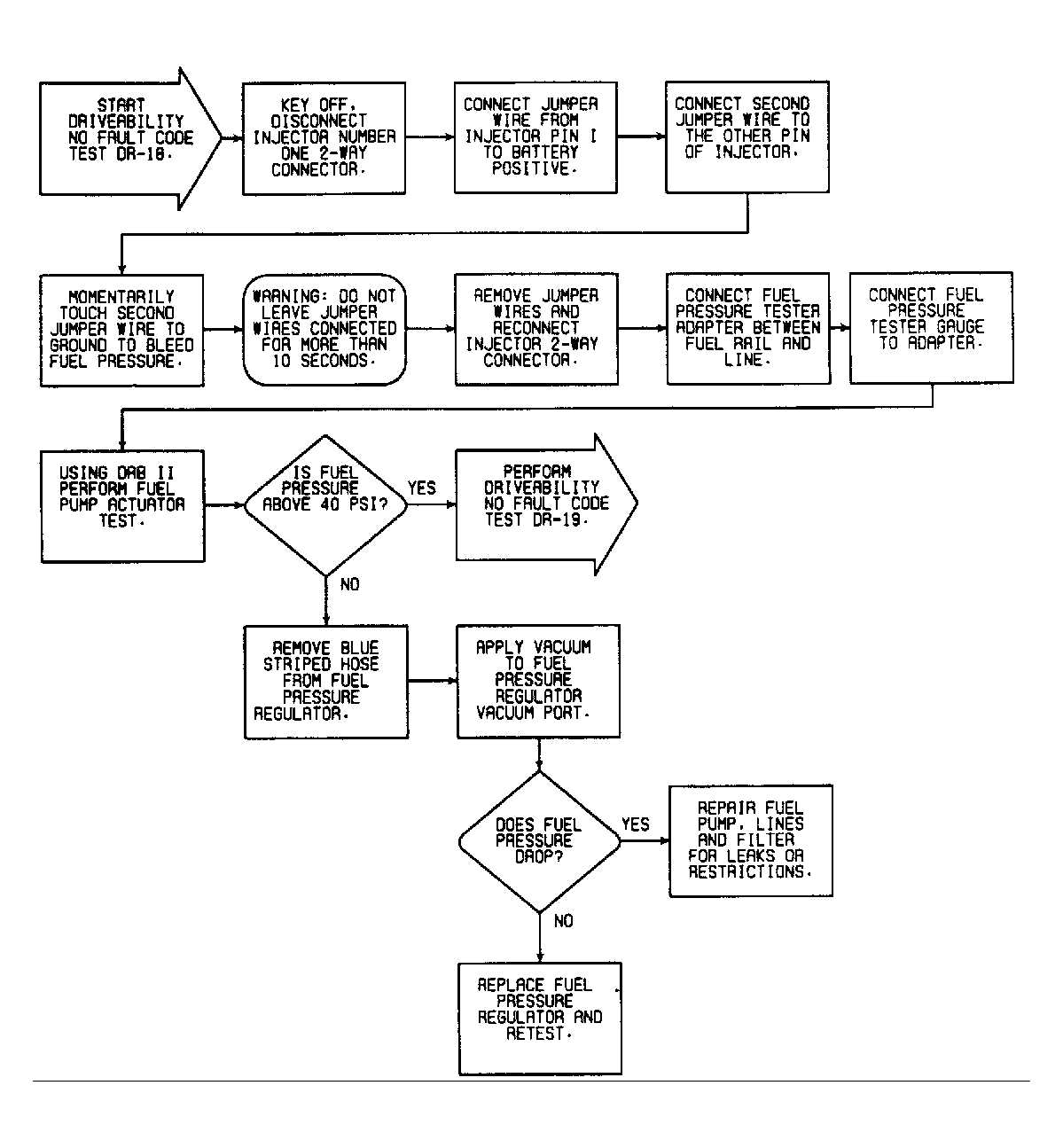

Fig 1: Flow Chart DR-18 (1.6L)
