Dr-20: No Fault Code Purge Control Circuit Test
Dr-20: No Fault Code Purge Control Circuit Test

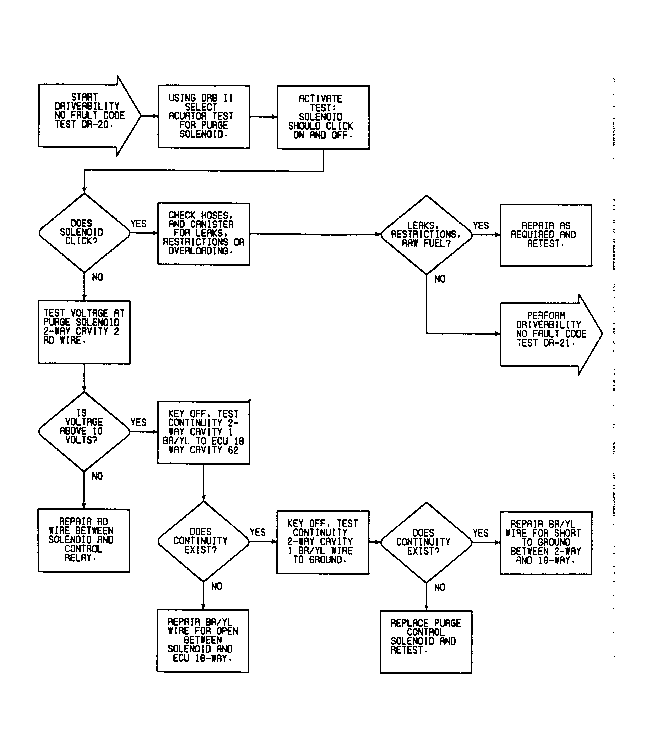

Fig 1: Flow Chart DR-19 (1.6L)
