NS-3: Testing Fuel System

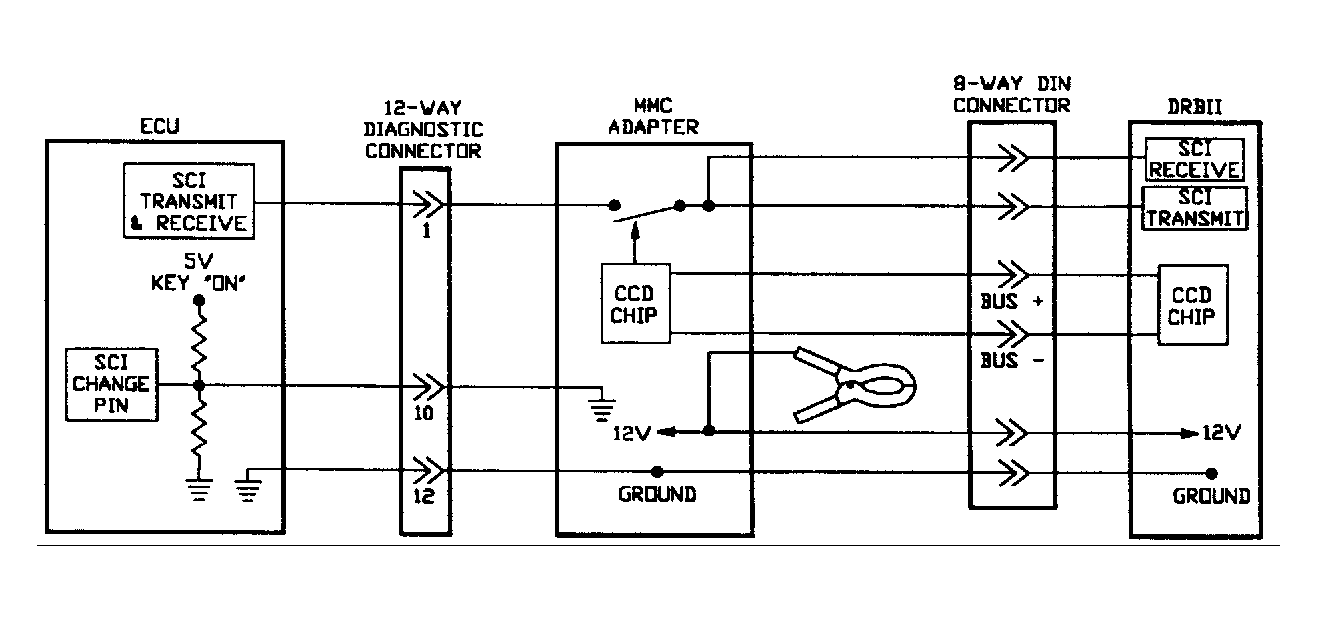

Fig 1: Circuit Diagram NS-3 (1.6L)

G90A15396

Fig 2: Circuit Diagram NS-3 (1.6L)

G90G15400

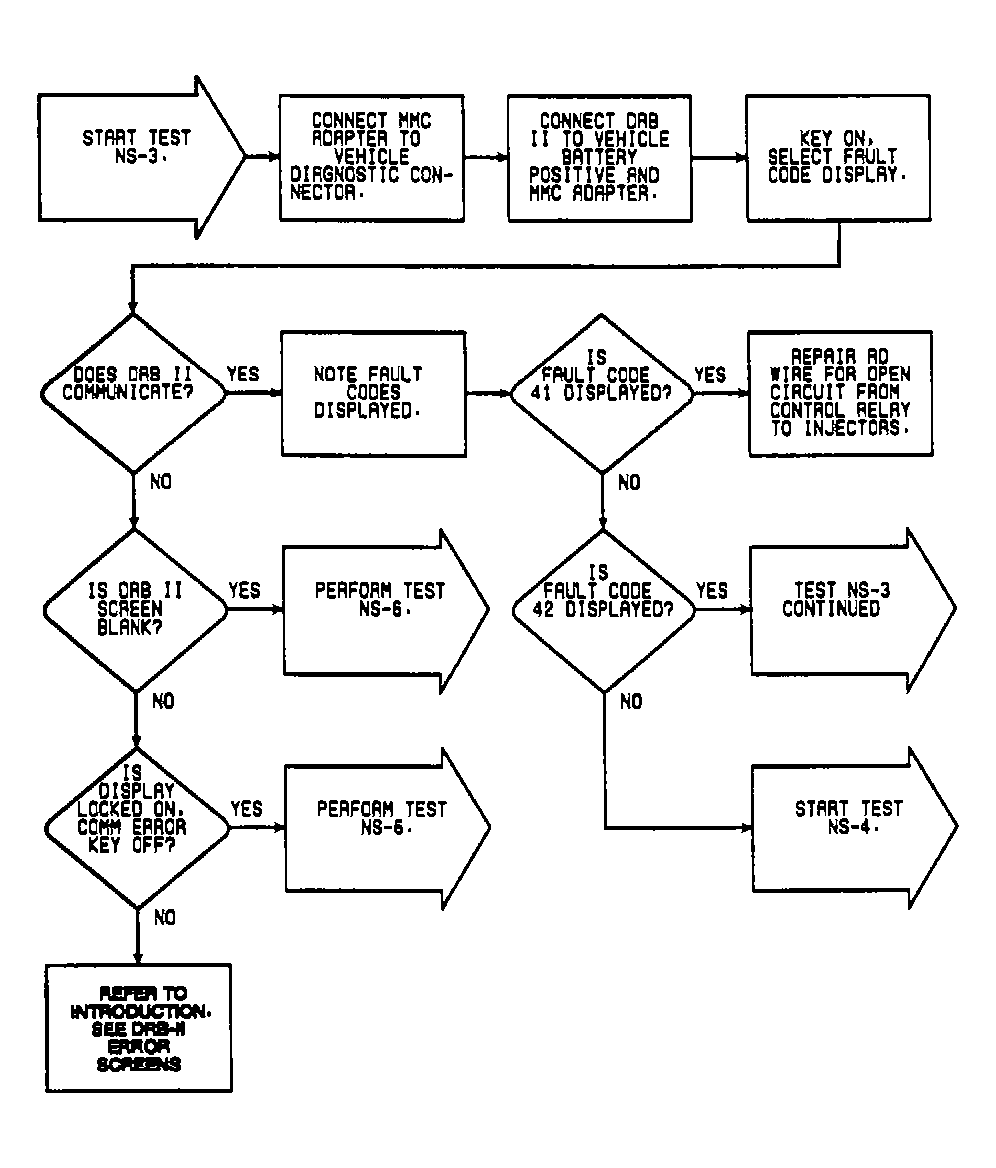

Fig 3: Flow Chart NS-3 (1.6L) (1 of 3)

G90D19920

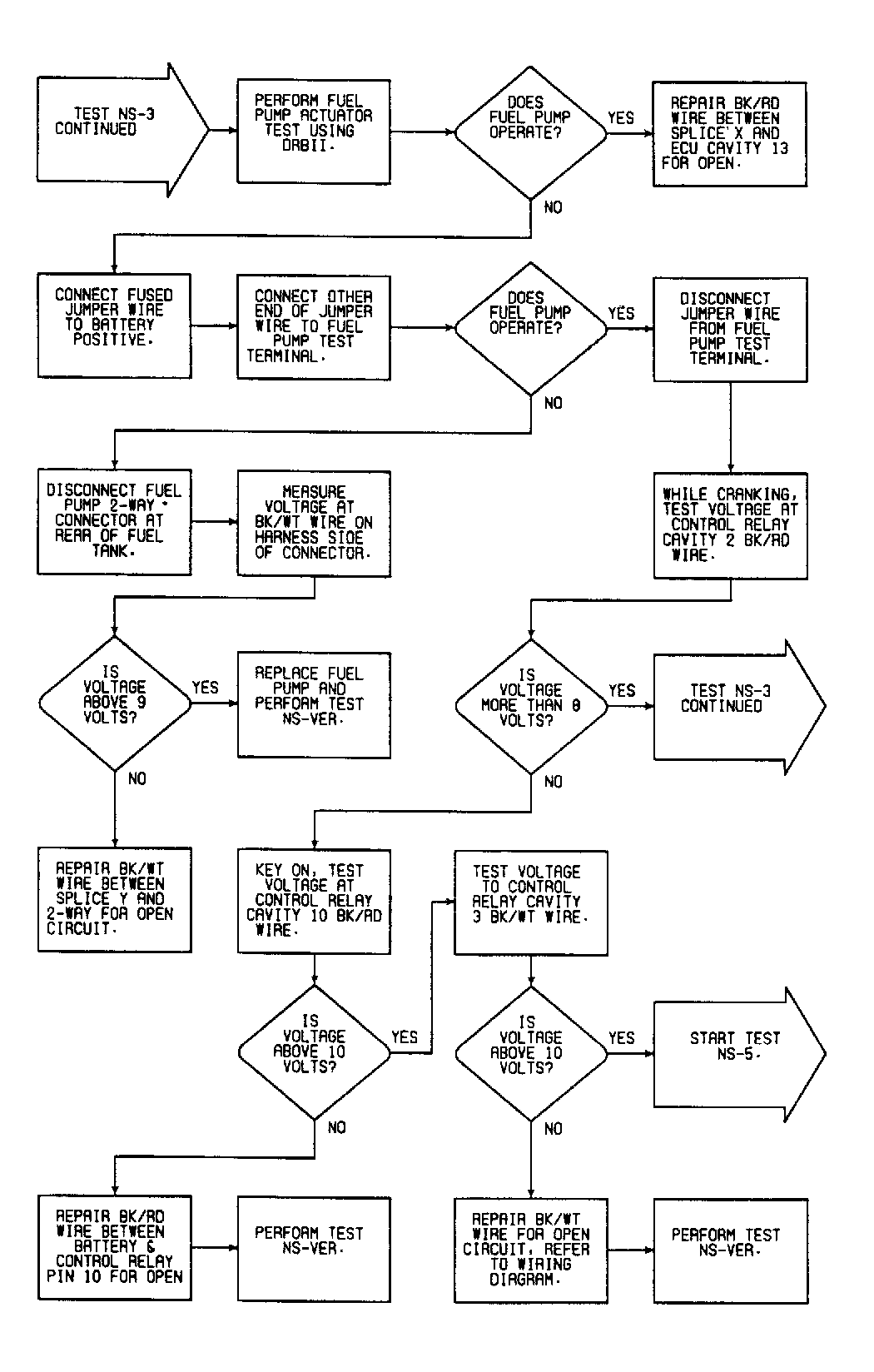

Fig 4: Flow Chart NS-3 (1.6L) (2 of 3)

G90E19921

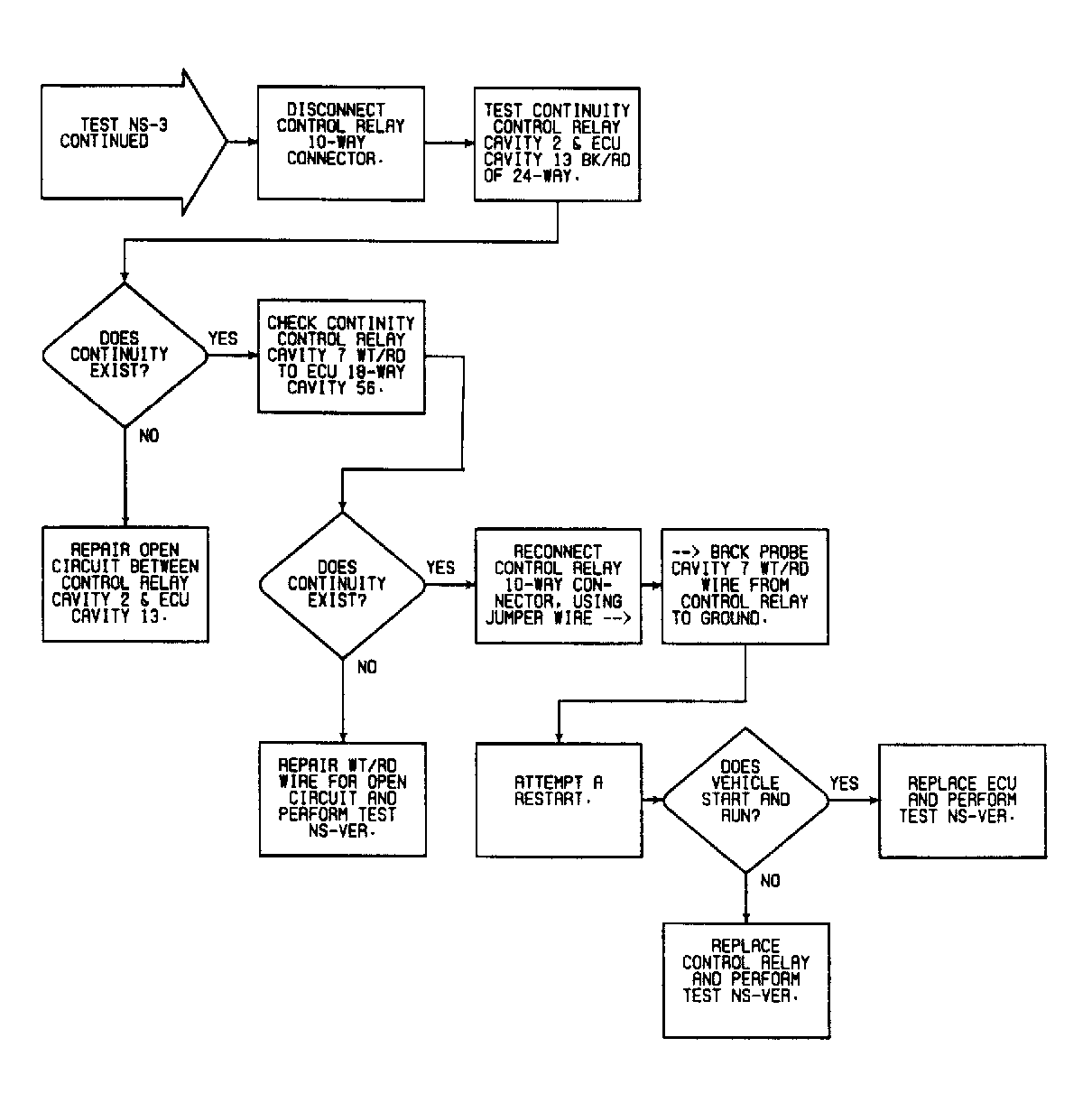

Fig 5: Flow Chart NS-3 (1.6L) (3 of 3)

G90F19922
