NS-5: Testing Control Relay Circuit
NS-5: Testing Control Relay Circuit

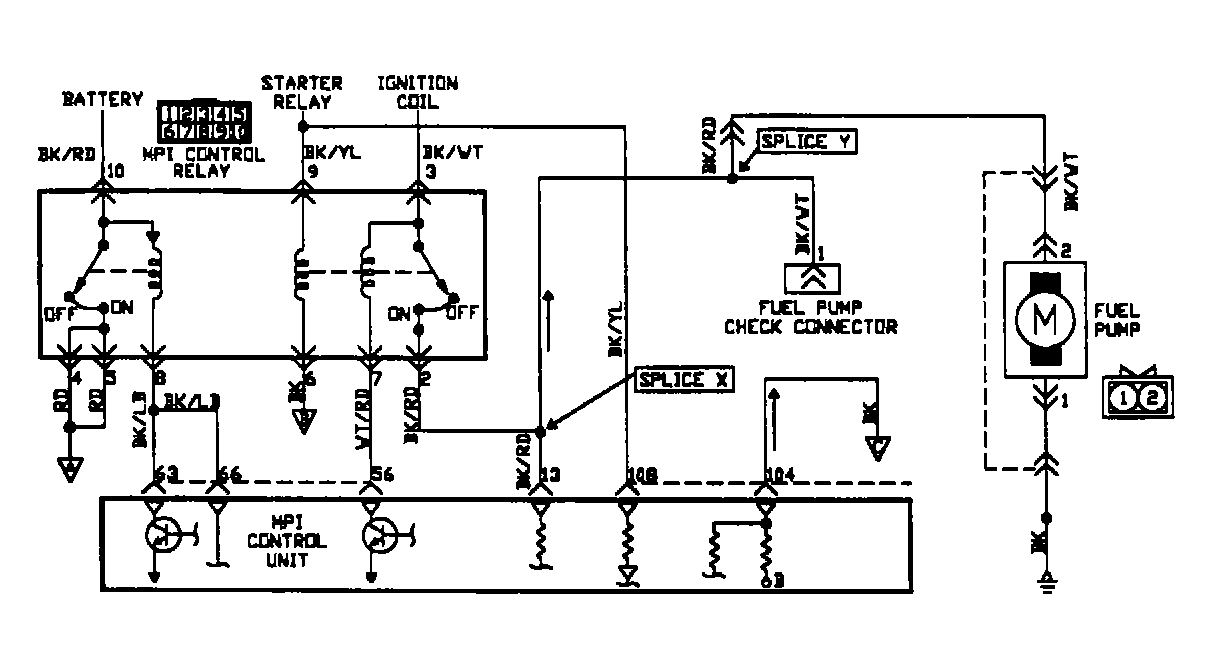

Fig 1: Circuit Diagram NS-5 (1.6L)

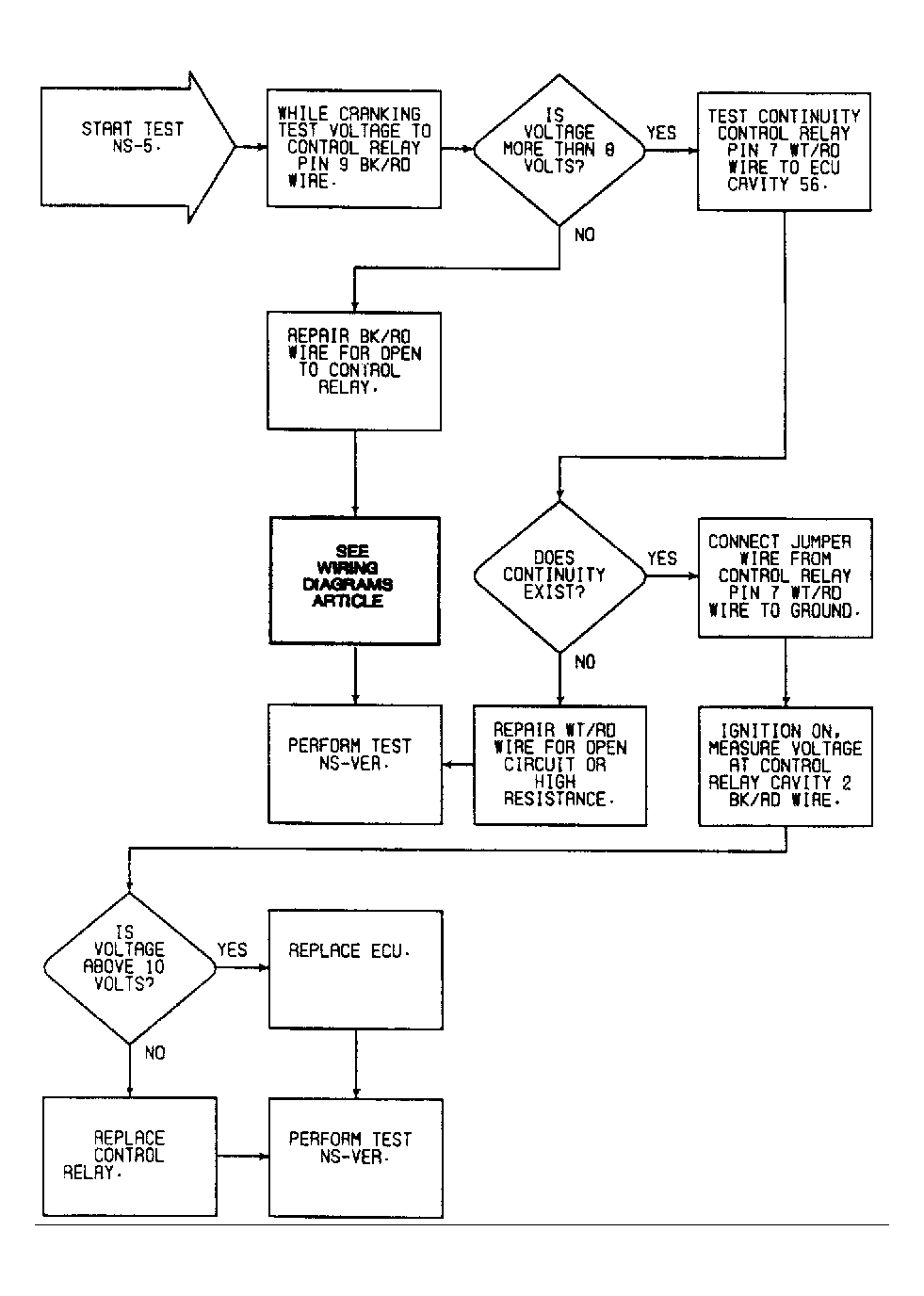

Fig 2: Flow Chart NS-5 (1.6L)
