Dr-16: No Fault Code Sensor Test

Fig 1: Circuit Diagram DR-16 (1.8L) (1 Of 2)

Fig 2: Circuit Diagram DR-16 (1.8L) (2 Of 2)

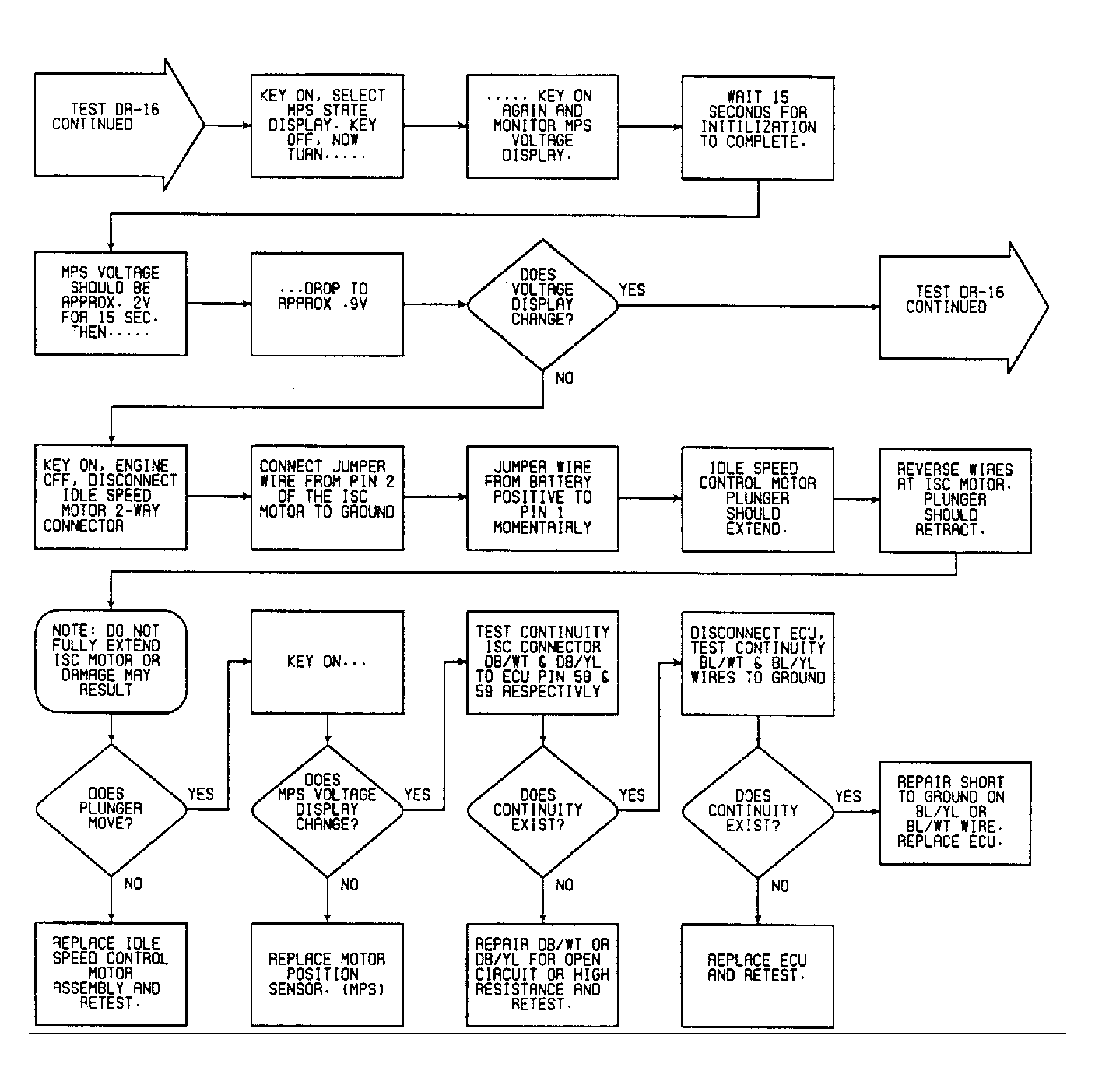

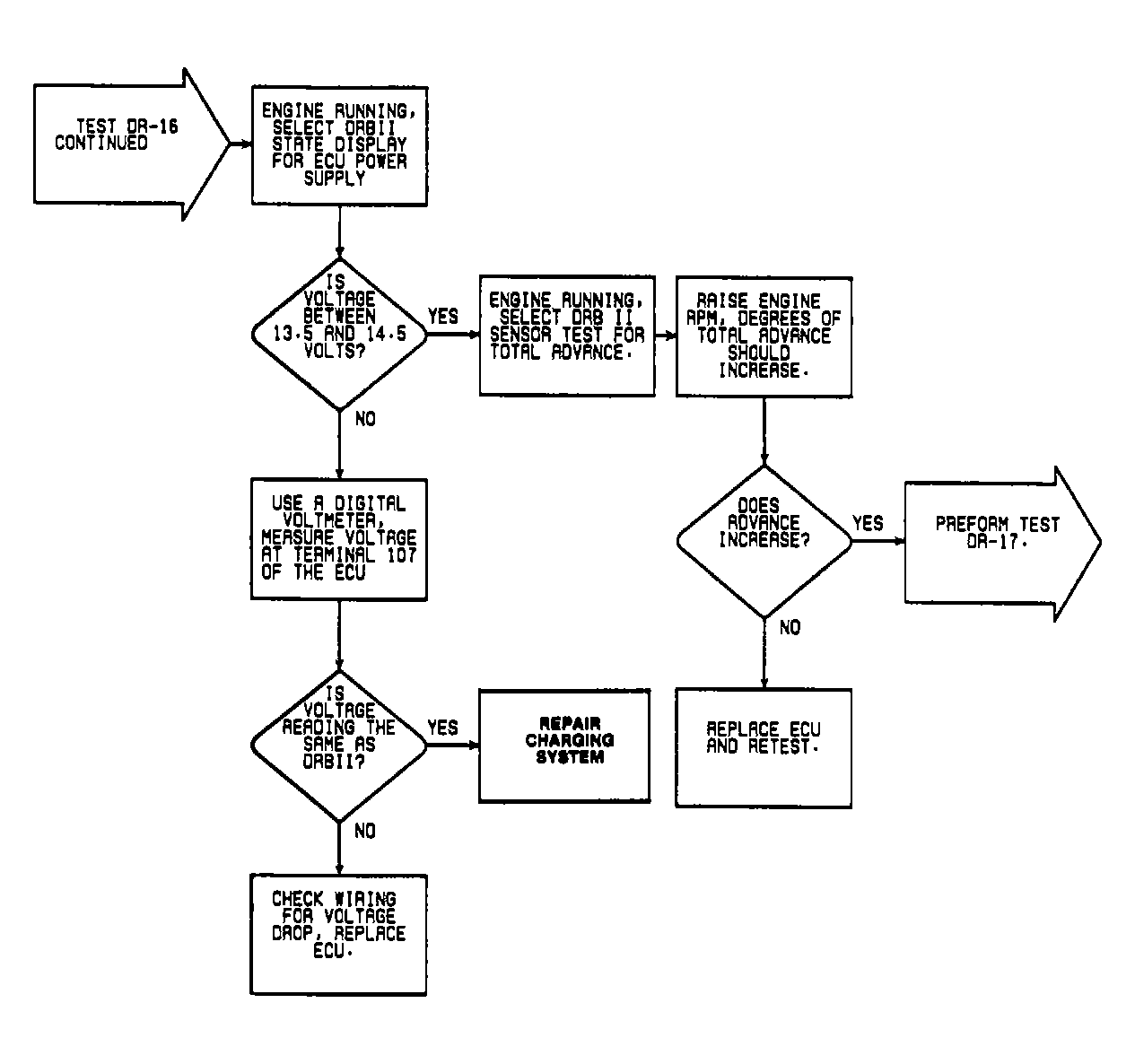

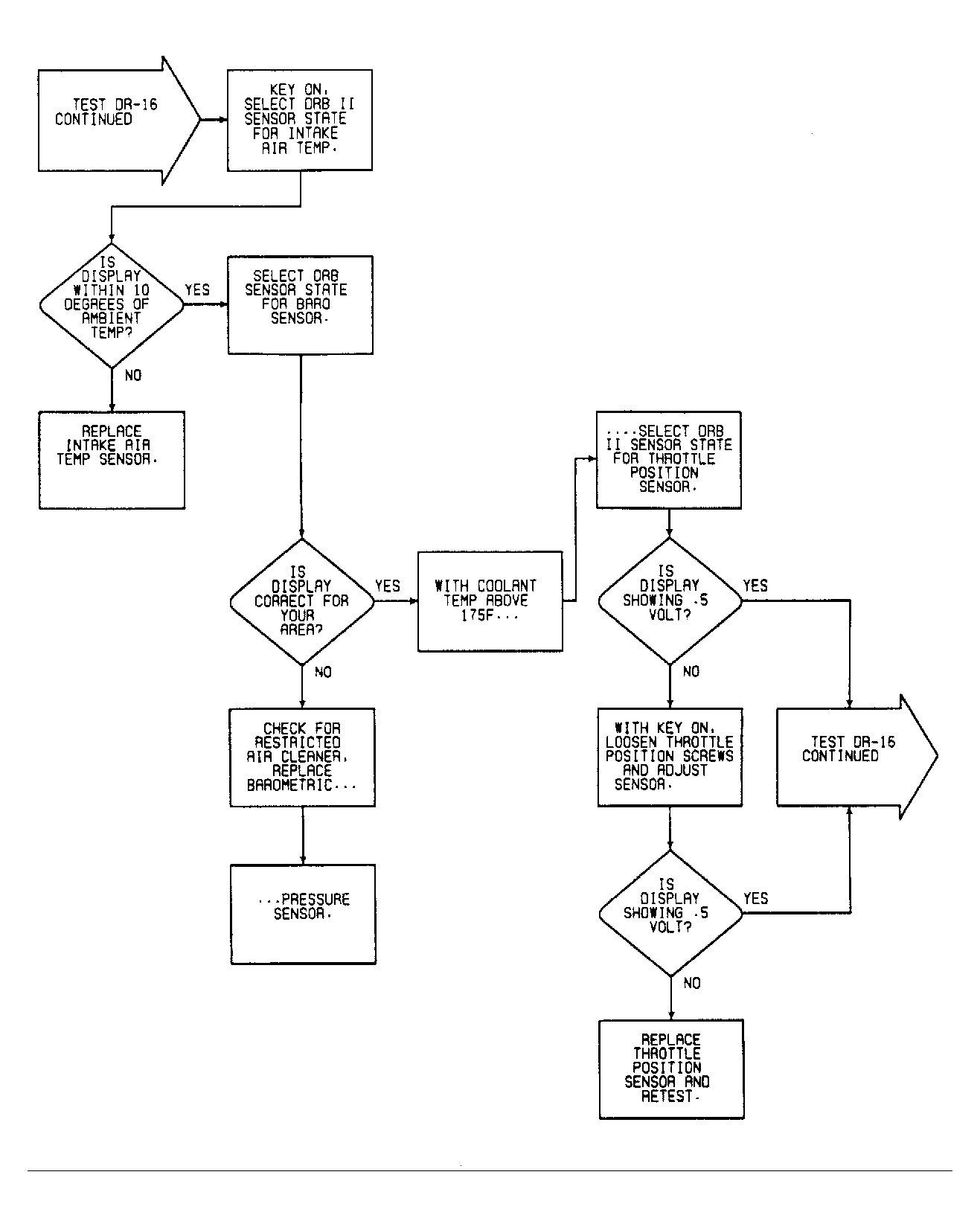

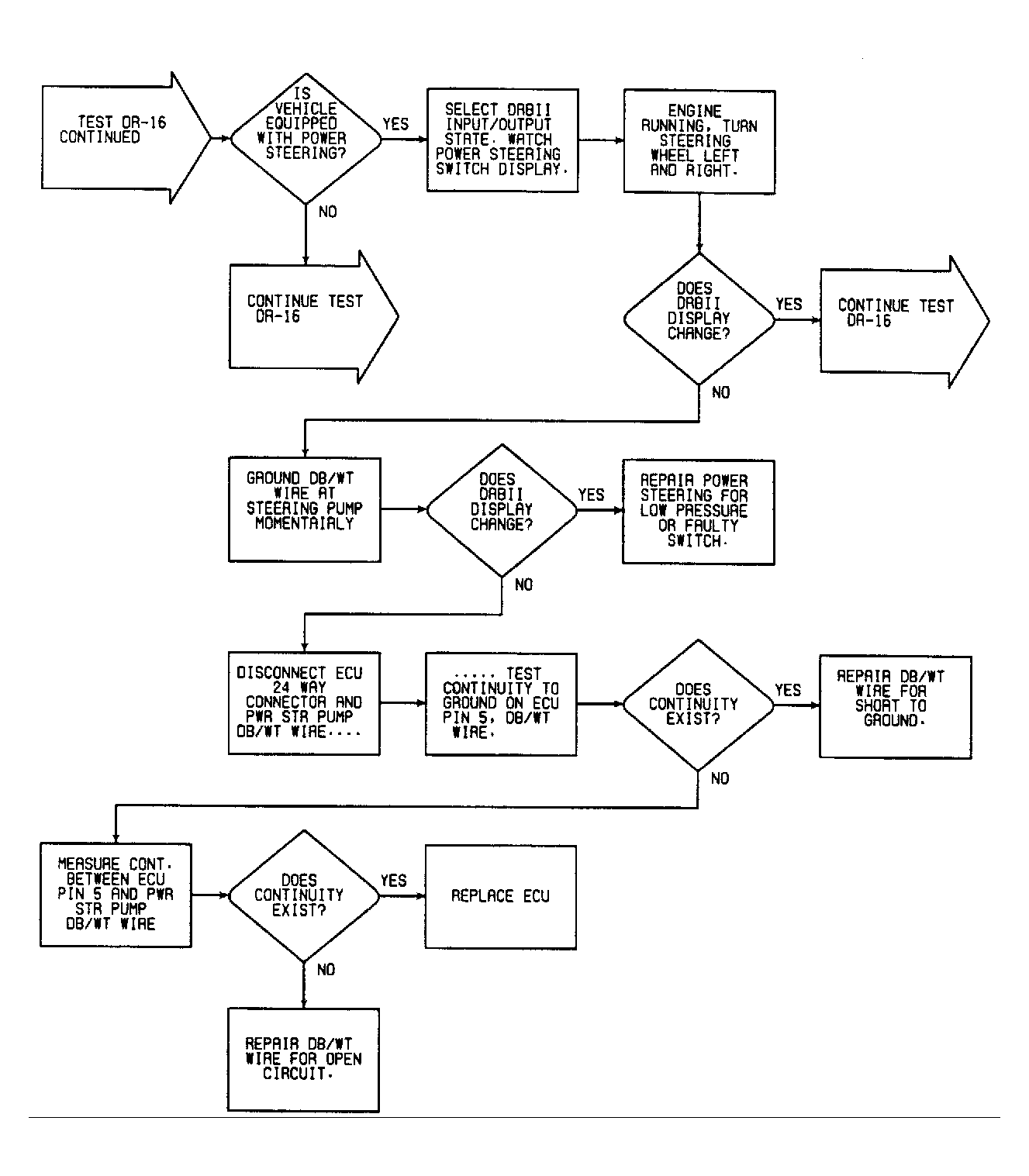

Fig 3: Flow Chart DR-16 (1.8L) (1 of 5)

Fig 4: Flow Chart DR-16 (1.8L) (2 of 5)

Fig 5: Flow Chart DR-16 (1.8L) (3 of 5)

Fig 6: Flow Chart DR-16 (1.8L) (4 of 5)

Fig 7: Flow Chart DR-16 (1.8L) (5 of 5)
