Dr-8: Testing Diagnostic Connector
Dr-8: Testing Diagnostic Connector
Fig 1: Circuit Diagram DR-8 (1.8L)

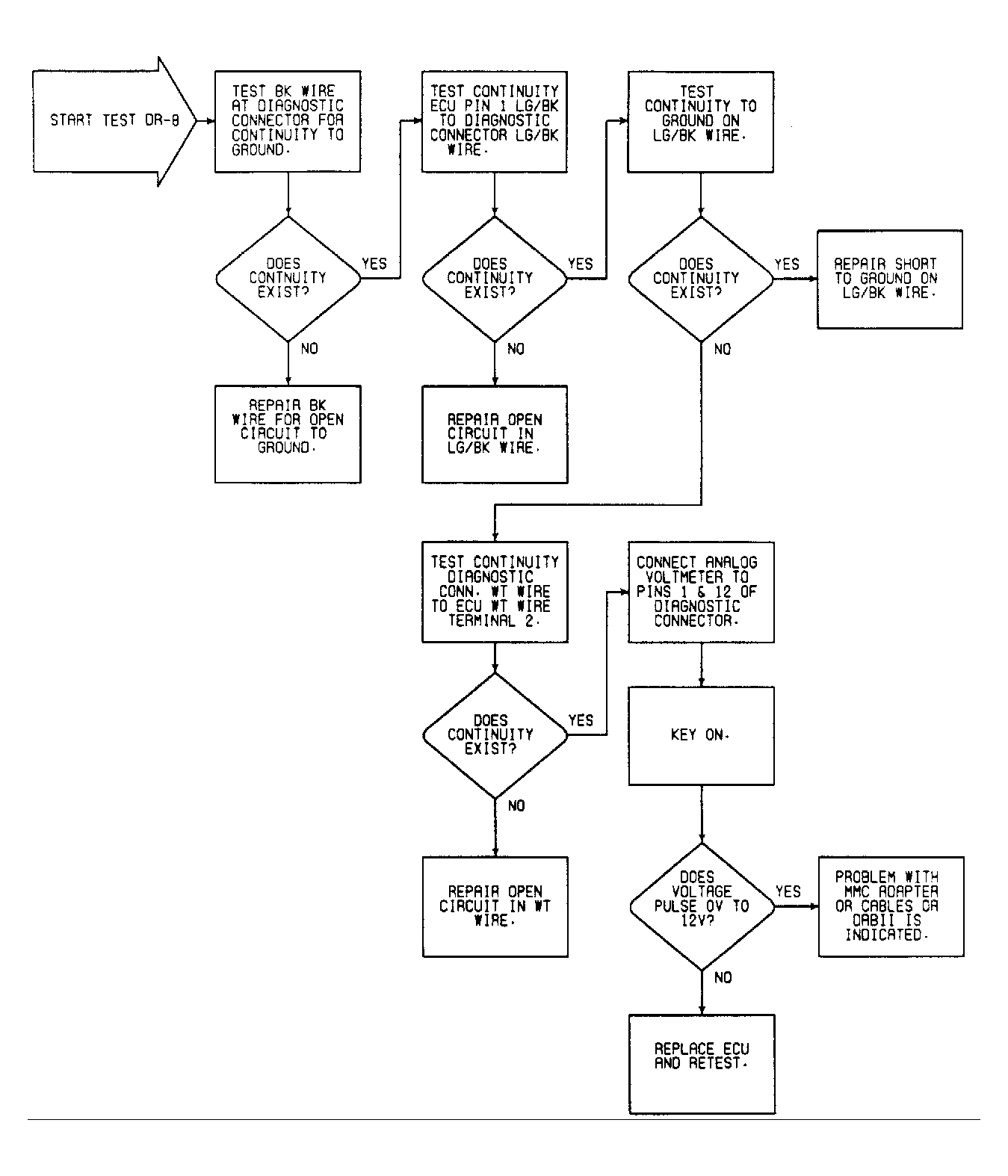

Fig 2: Flow Chart DR-8 (1.8L)
