Dr-11: Checking Vehicle Speed Sensor
Dr-11: Checking Vehicle Speed Sensor

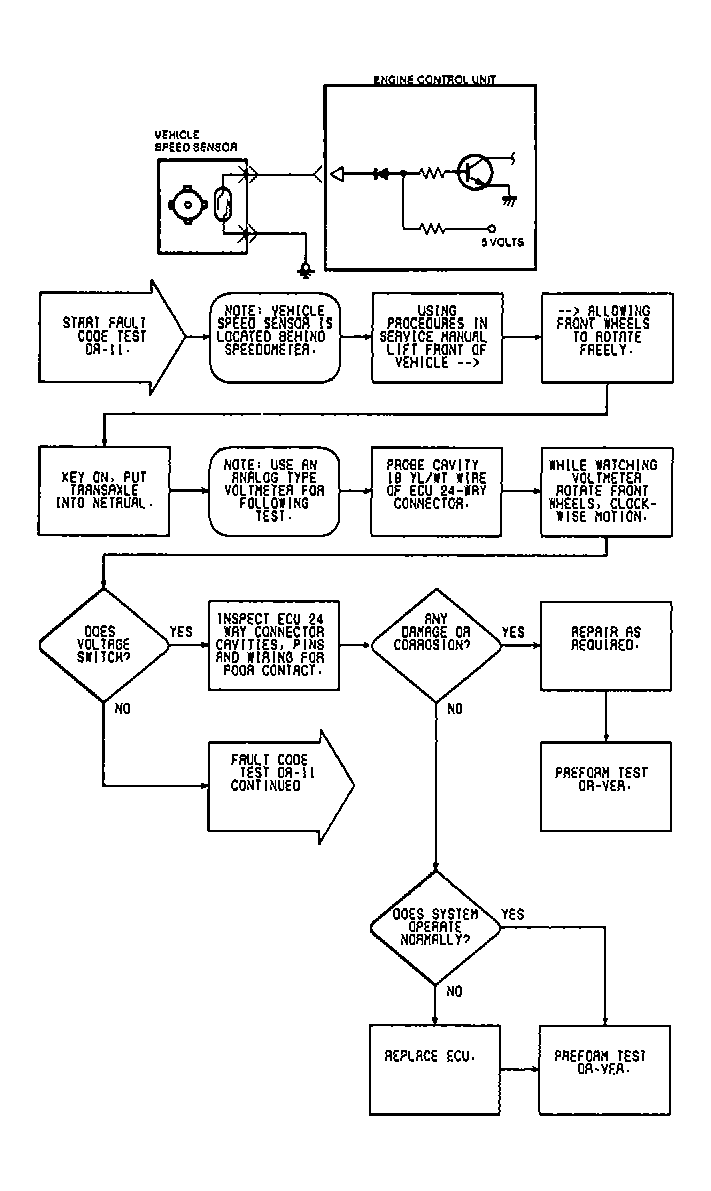

Fig 1: DR-11 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

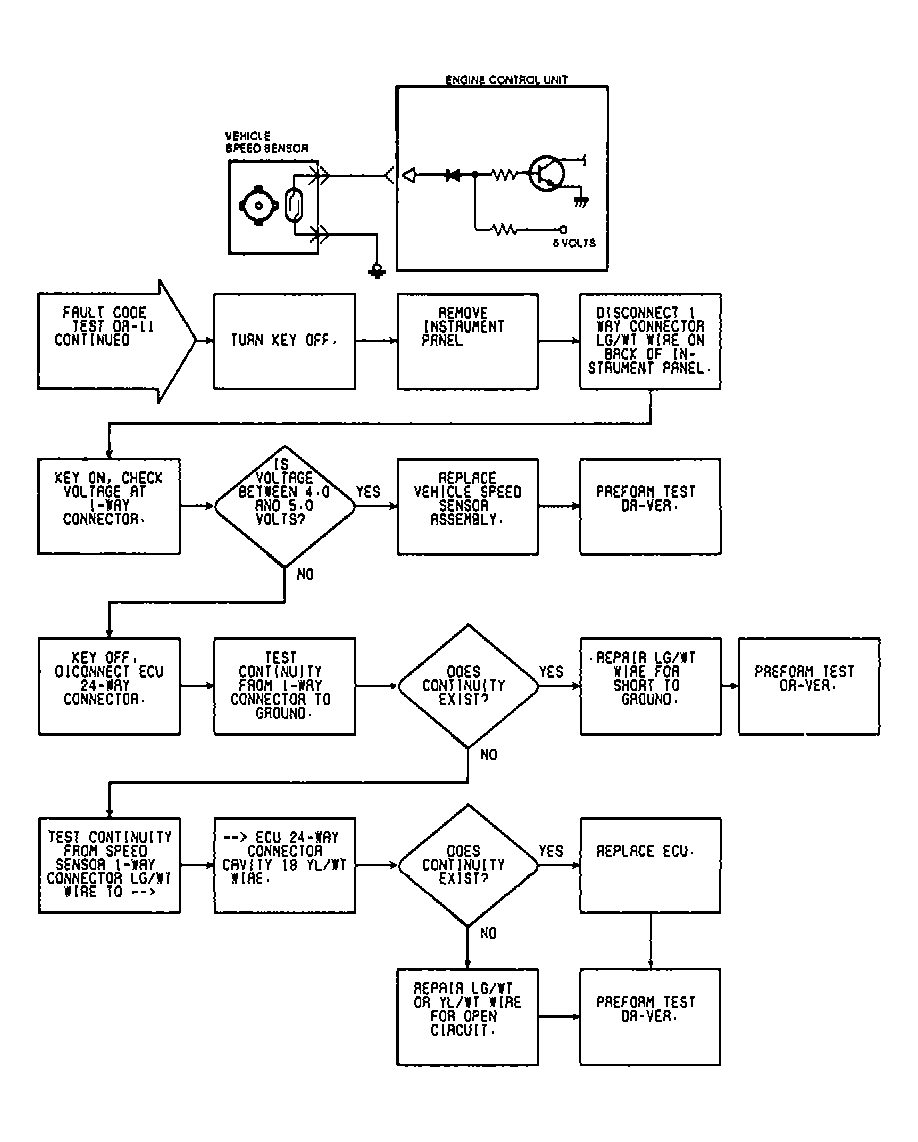

Fig 2: DR-11 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
