Dr-15: Checking Injector Circuit

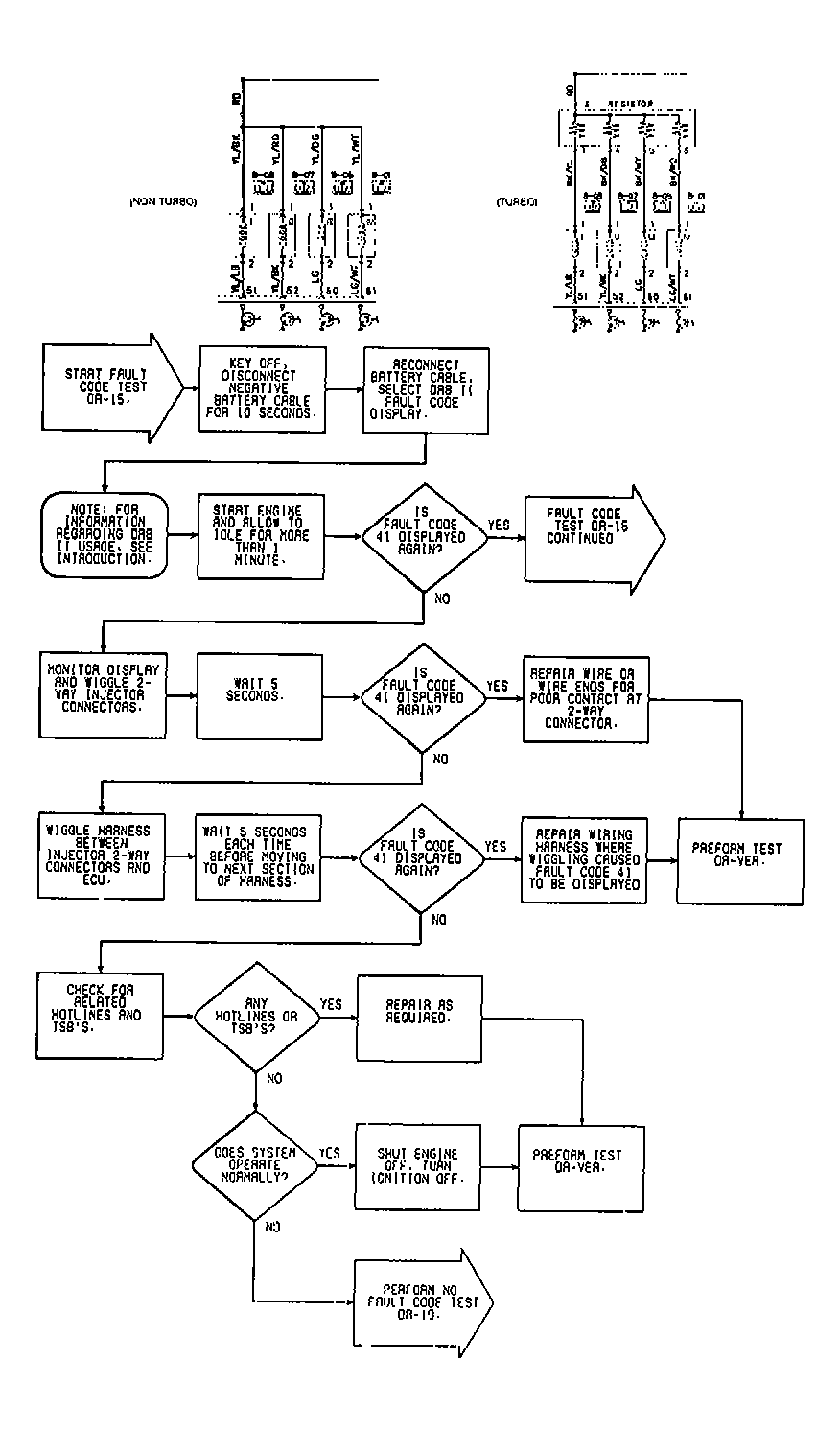

Fig 1: DR-15 Flow Chart & Circuit Diagram (2.0L) (1 of 5)

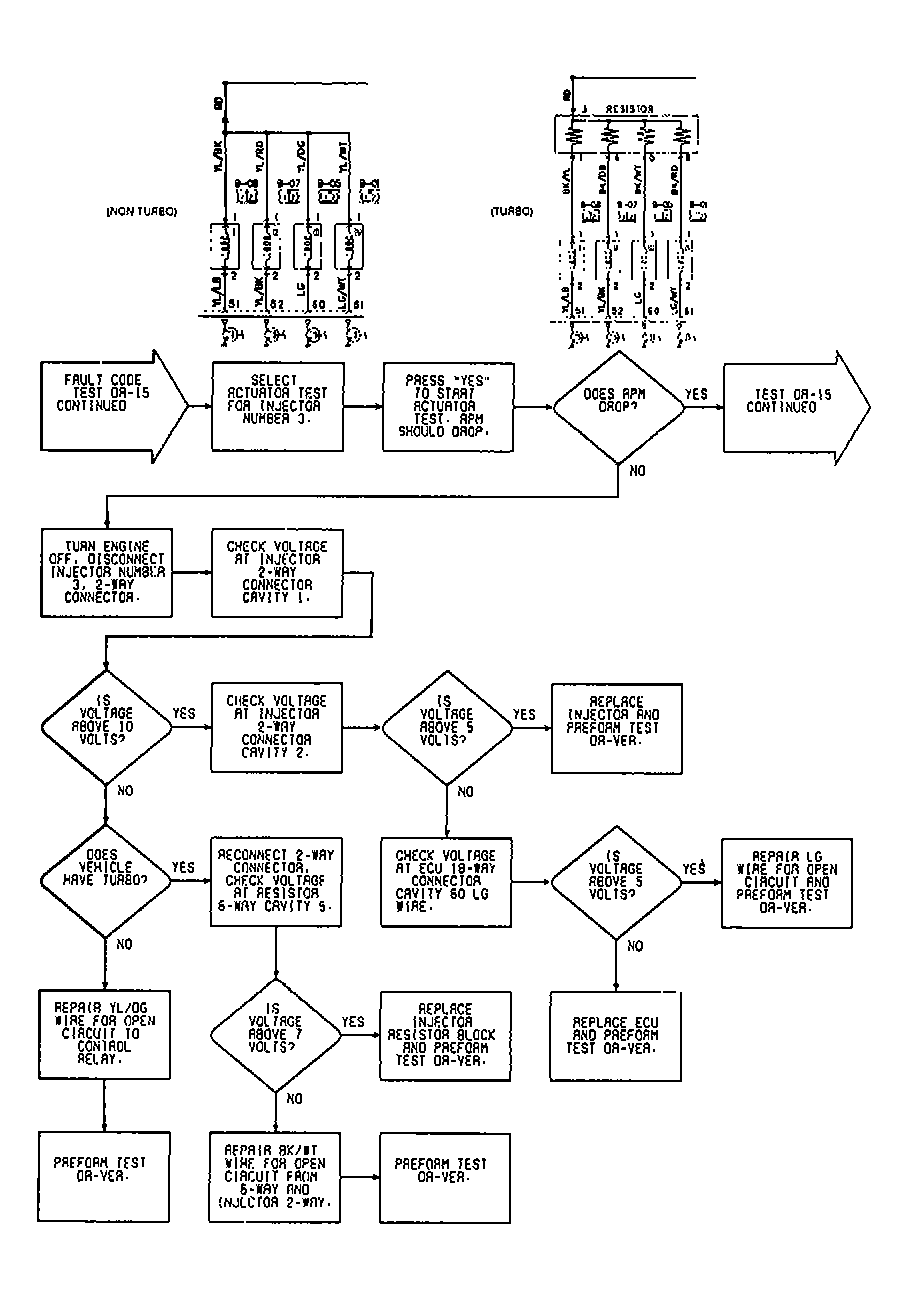

Fig 2: DR-15 Flow Chart & Circuit Diagram (2.0L) (2 of 5)

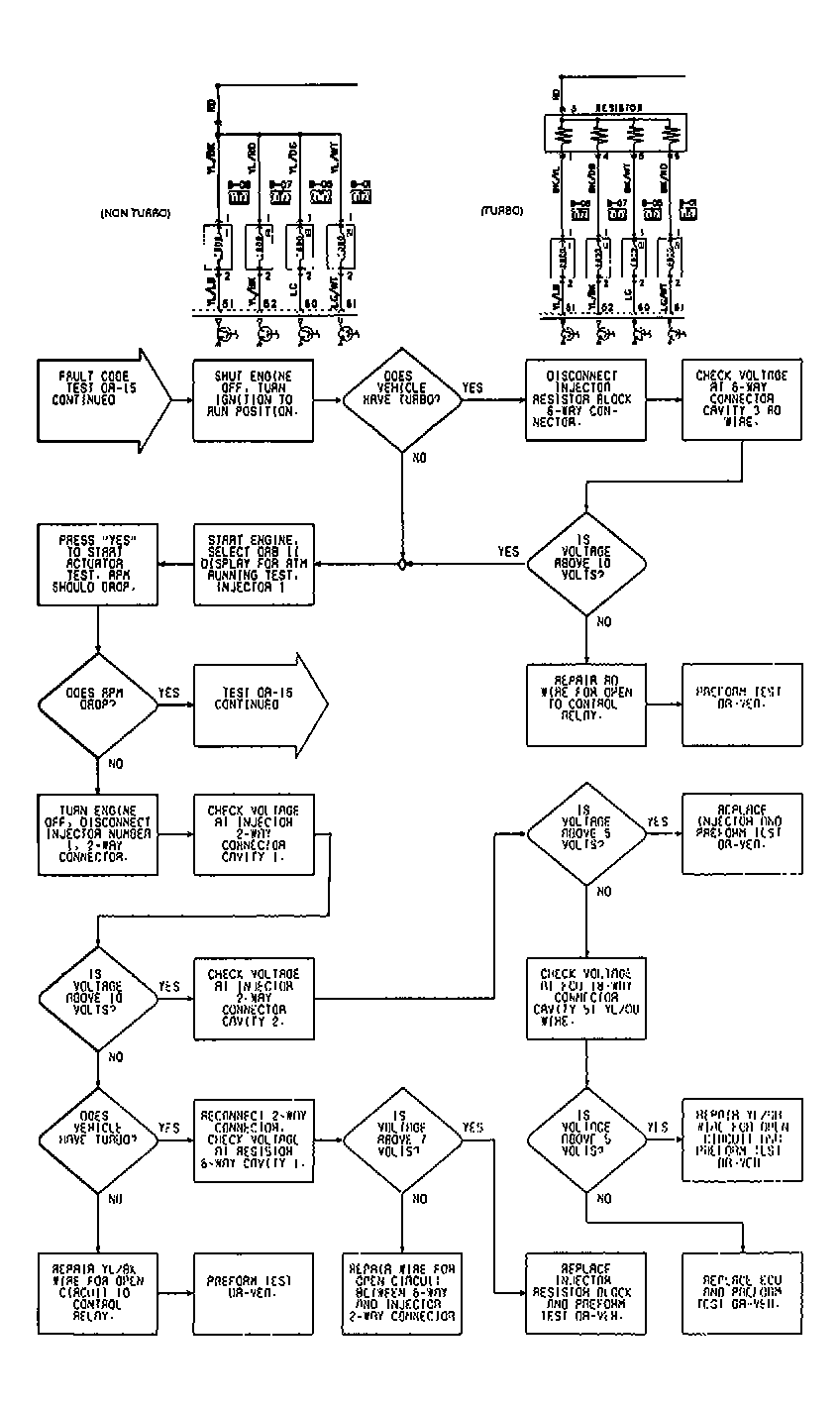

Fig 3: DR-15 Flow Chart & Circuit Diagram (2.0L) (3 of 5)

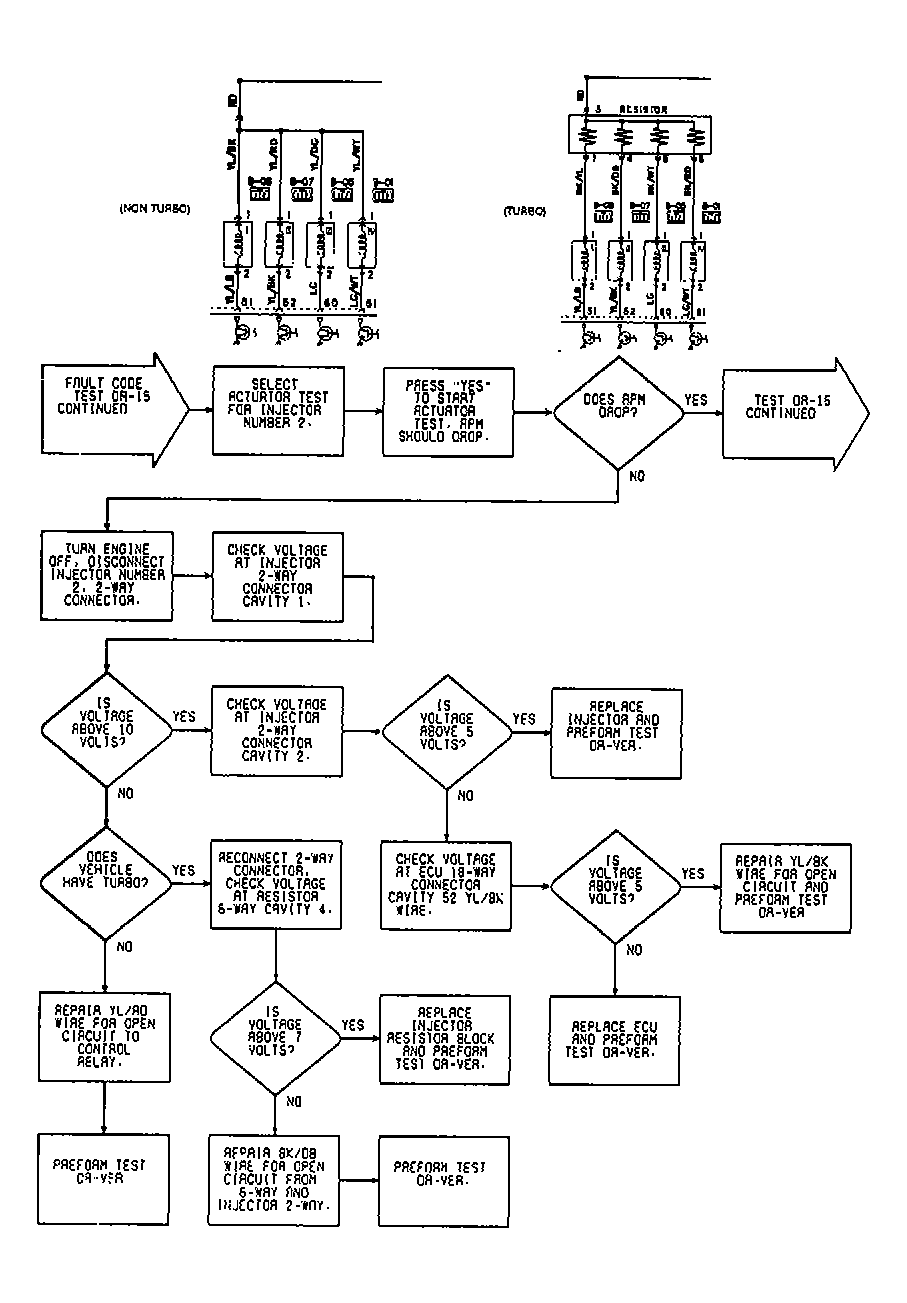

Fig 4: DR-15 Flow Chart & Circuit Diagram (2.0L) (4 of 5)

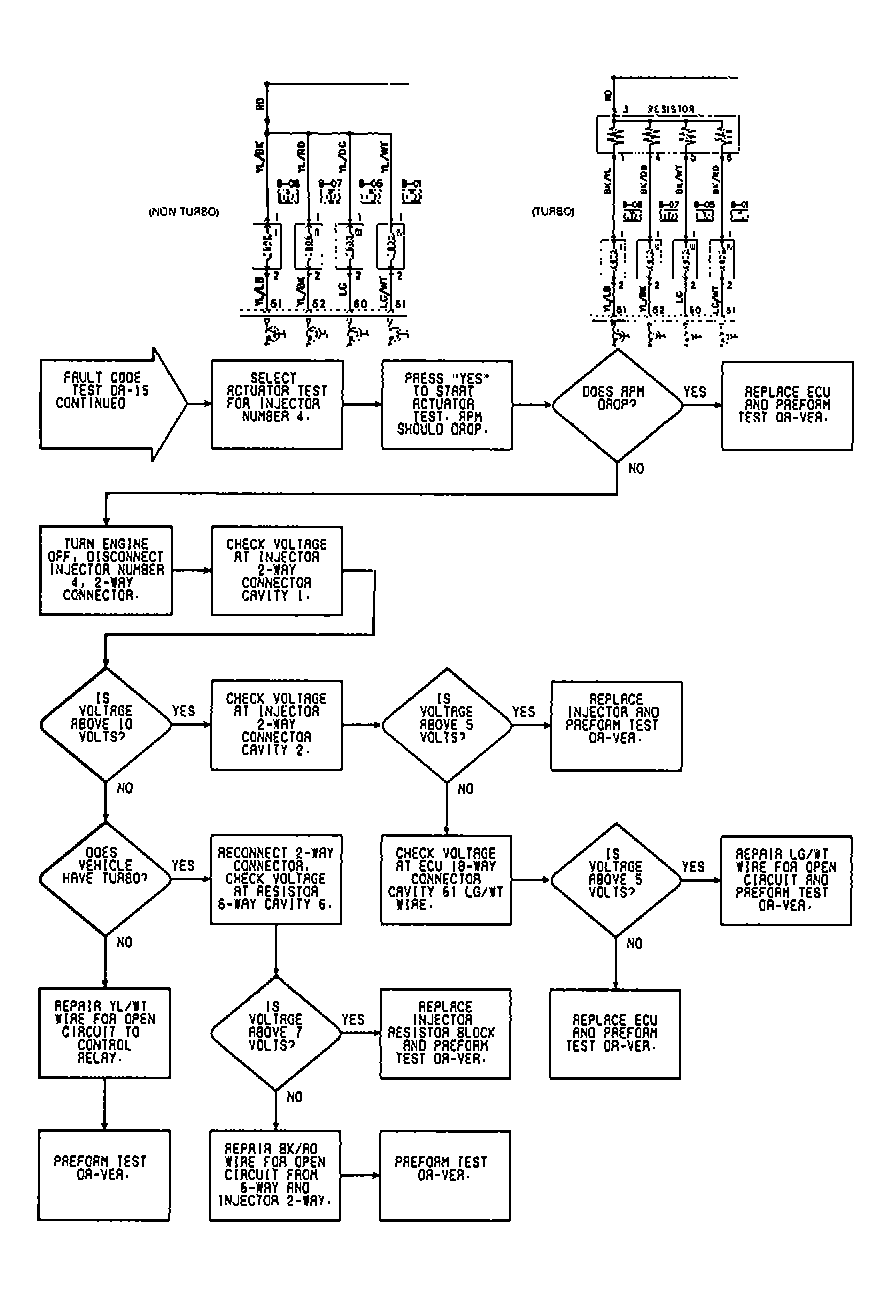

Fig 5: DR-15 Flow Chart & Circuit Diagram (2.0L) (5 of 5)
