Engine Controls - Tests W/Codes
›
Test Charts - 2.0L
›
Dr-2: Checking Oxygen Sensor
Dr-2: Checking Oxygen Sensor

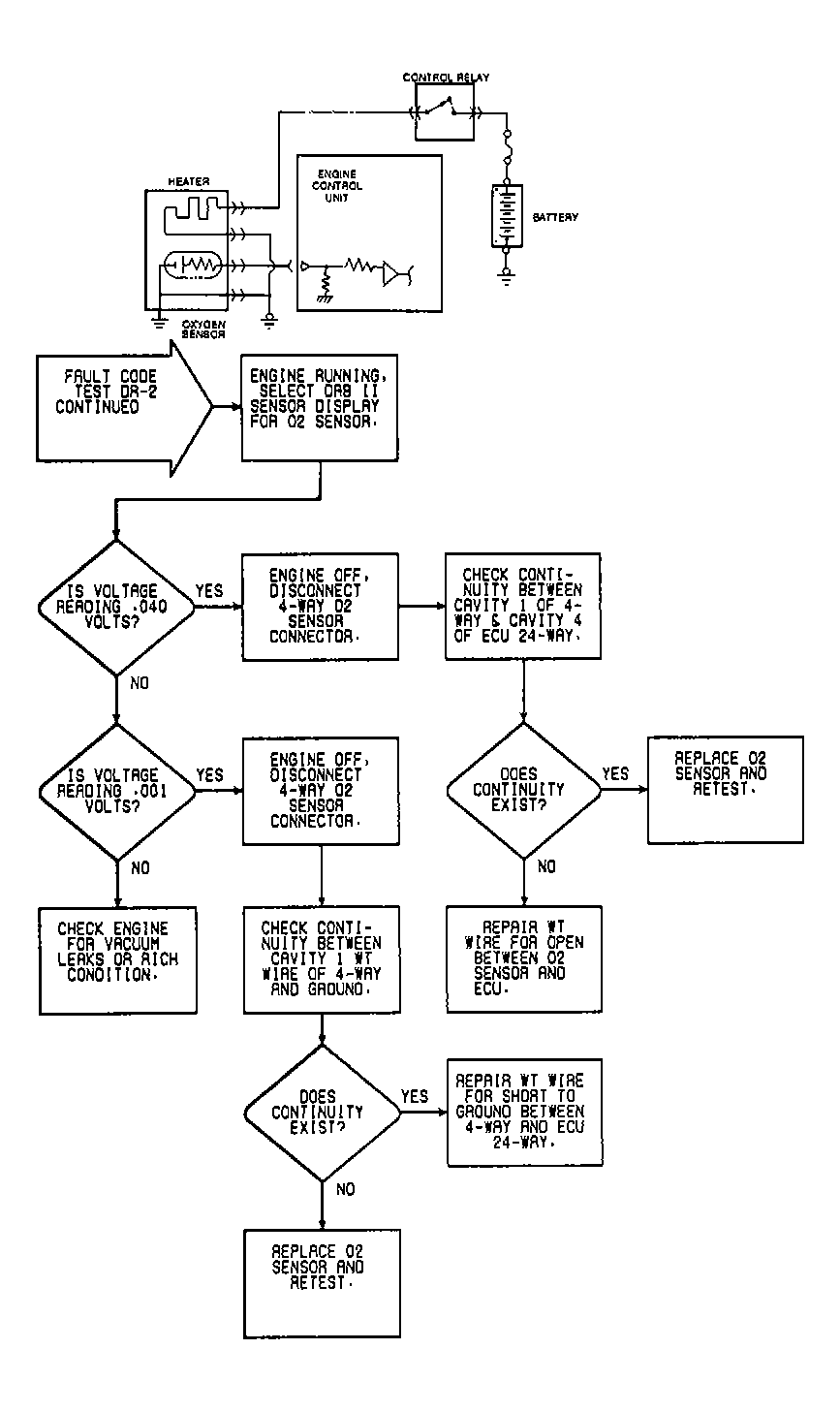

Fig 1: DR-2 Flow Chart & Circuit Diagram (2.0L) (1 of 2)
Fig 2: DR-2 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
