NS-VER: No Start Verification Test
NS-VER: No Start Verification Test

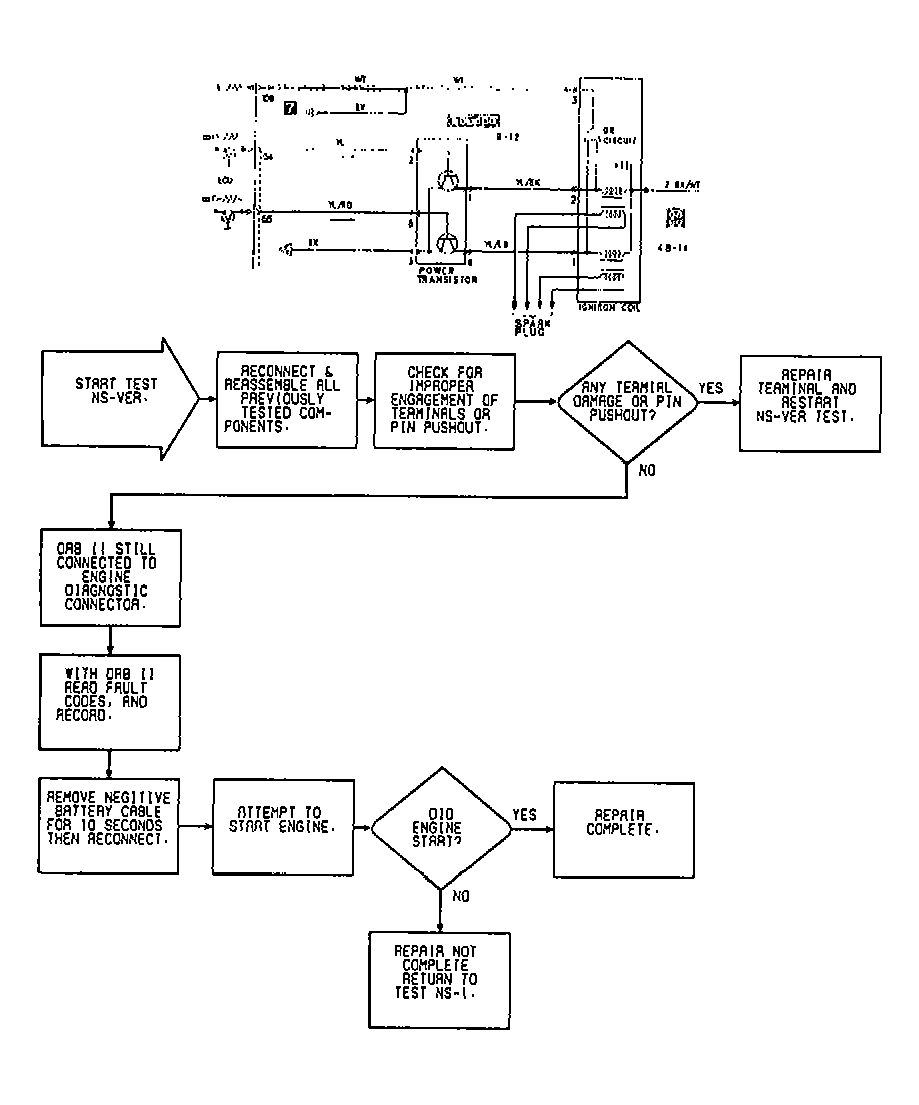

Fig 1: NS-VER Flow Chart & Circuit Diagram (2.0L)
