Check Eng Light On Code 15 Idle Speed Position SENSO (18-19-94)

CHECK ENG LIGHT ON CODE 15 IDLE SPEED POSITION SENSO

TECHNICAL SERVICE BULLETIN

CHECK ENGINE LIGHT ON, FAULT CODE 15, IDLE SPEED POSITION SENSOR

Model(s): 1990-92 Dodge (B2) Colt w/1.5L Engine

1990-92 Eagle (B2) Summit w/1.5L Engine

1990-92 Plymouth (B2) Colt w/1.5L Engine

1990-94 Eagle (BD) Talon w/1.8L SOHC Engine

1990-94 Plymouth (BD) Laser w/1.8L SOHC Engine

Group: Vehicle Performance

Bulletin No.: 18-19-94

Date: October 7, 1994

SYMPTOM/CONDITION

Intermittent rough idle or drive way die out with fault code 15 (idle speed control motor position sensor) set and the Check Engine Lamp may be illuminated.

DIAGNOSIS

1. Inspect the condition of the 5 engine compartment ground connections shown in Fig 1 . Also, check the condition of the ECU ground connection shown in Fig 2 . Disassemble, clean and install/tighten these ground connections.

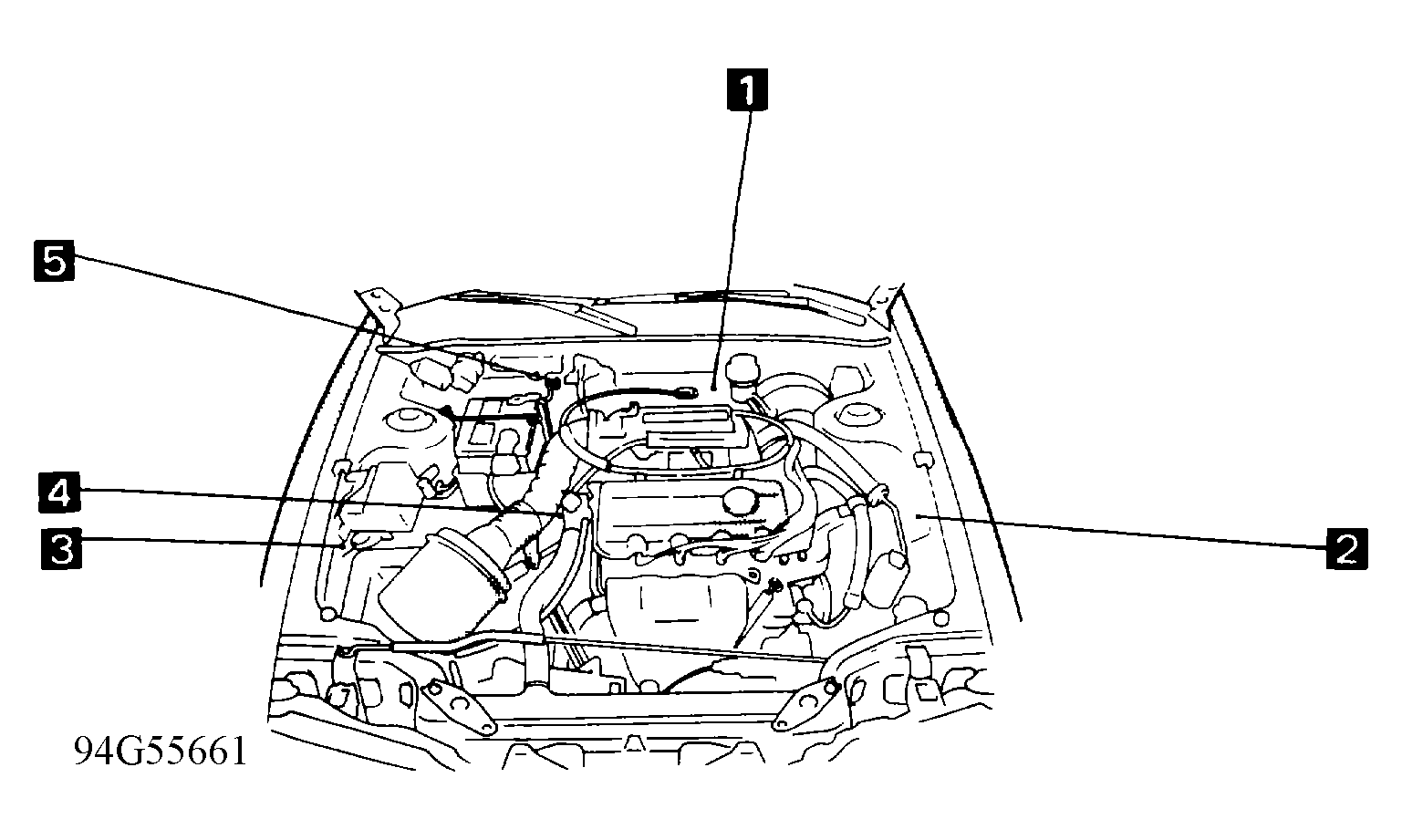

   Fig 1: 5 Engine Compartment Ground Connections

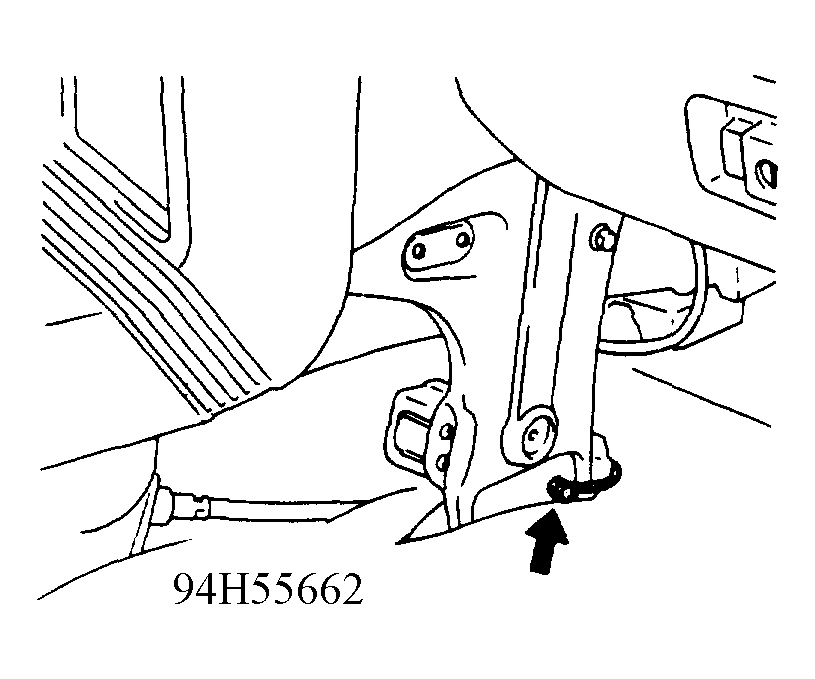

   Fig 2: ECU Ground Connection


2. Test the throttle position sensor and the idle speed control motor position sensor following the procedures listed in the 1993 Laser/Talon Service Manual (Publication No. 81-270-3500), Pages 14M-48 through 14M-53. Both sensors must test OK. Perform any repairs required prior to proceeding to the repair procedure.

Part Name	Part No.	Qty.
Electrical Tape	NPN	AR
Solder - Rosin Core	NPN	AR
10" length of 18 Ga. Wire	NPN	1
Electrical Terminal - 8 mm	NPN	1

REPAIR PROCEDURE

This bulletin involves installing an additional ground lead to a splice connector and soldering a second splice connector.

1. Note the radio station presets and record them. Remove the battery to gain access to the main engine compartment wiring harness that runs along the top of the engine side of the dash panel.
2. Remove the tape covering the plastic corrugated harness protector. Uncover the area from behind the battery to the junction where the harness splits behind the engine.
3. Isolate the green/black stripe wire in the harness. Follow its length and locate the two taped splice connections. See Fig 3 . Remove the tape from the splices.

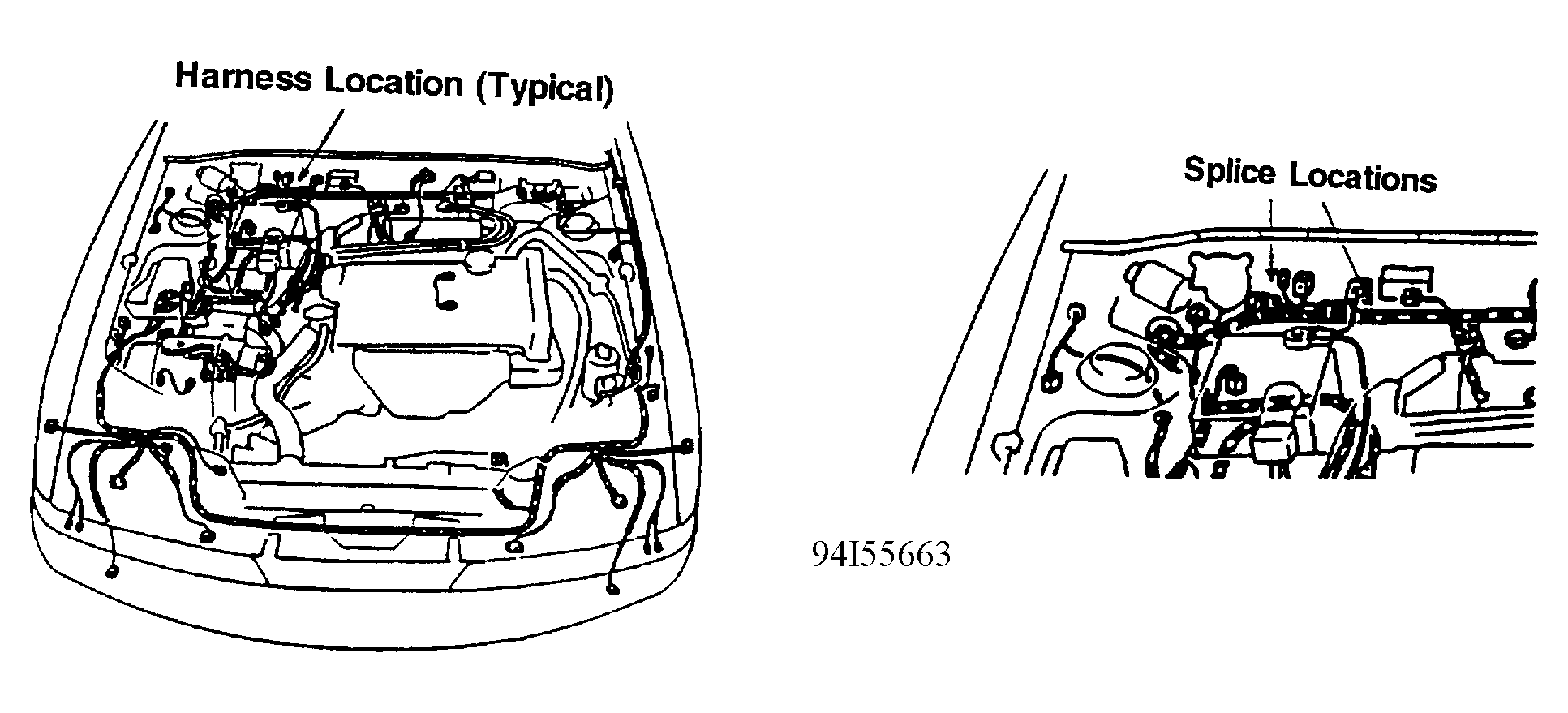

   Fig 3: Splice Locations


4. Fabricate a short jumper using the 10" length of wire and a suitable terminal that will fit the battery ground connector/stud on the battery. Solder this jumper wire to the inboard splice located in step 3. It is recommended that the splice be cleaned and soldered to assure a good electrical connection to the jumper wire. Connect the terminated end of the jumper wire to the battery ground connector/stud on the battery.
5. Clean and solder the outboard splice, located in step 3, to assure a good electrical connection at this splice.
6. Perform a continuity check of the green/black stripe wire from the outboard splice to the battery ground connector/stud on the battery.
7. Tape the splices with electrical tape and install the wire harness back into the plastic corrugated harness protector. Tape the entire length of the plastic protector that was opened to gain access to the harness.
8. Install the battery
9. Restore the radio station presets recorded in step 1.

WARRANTY INFORMATION

POLICY: Reimbursable within the provisions of the warranty.

LABOR OPERATION NO: 08-90-65-91

TIME ALLOWANCE: 0.5 Hrs.

FAILURE CODE: XX - Service Adjustment
