FixVault
Home
›
Eagle
›
1990
›
Summit Base, Automatic
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Passive Restraint Systems
›
Component Tests
›
Ignition & Key Reminder Switch
Ignition & Key Reminder Switch

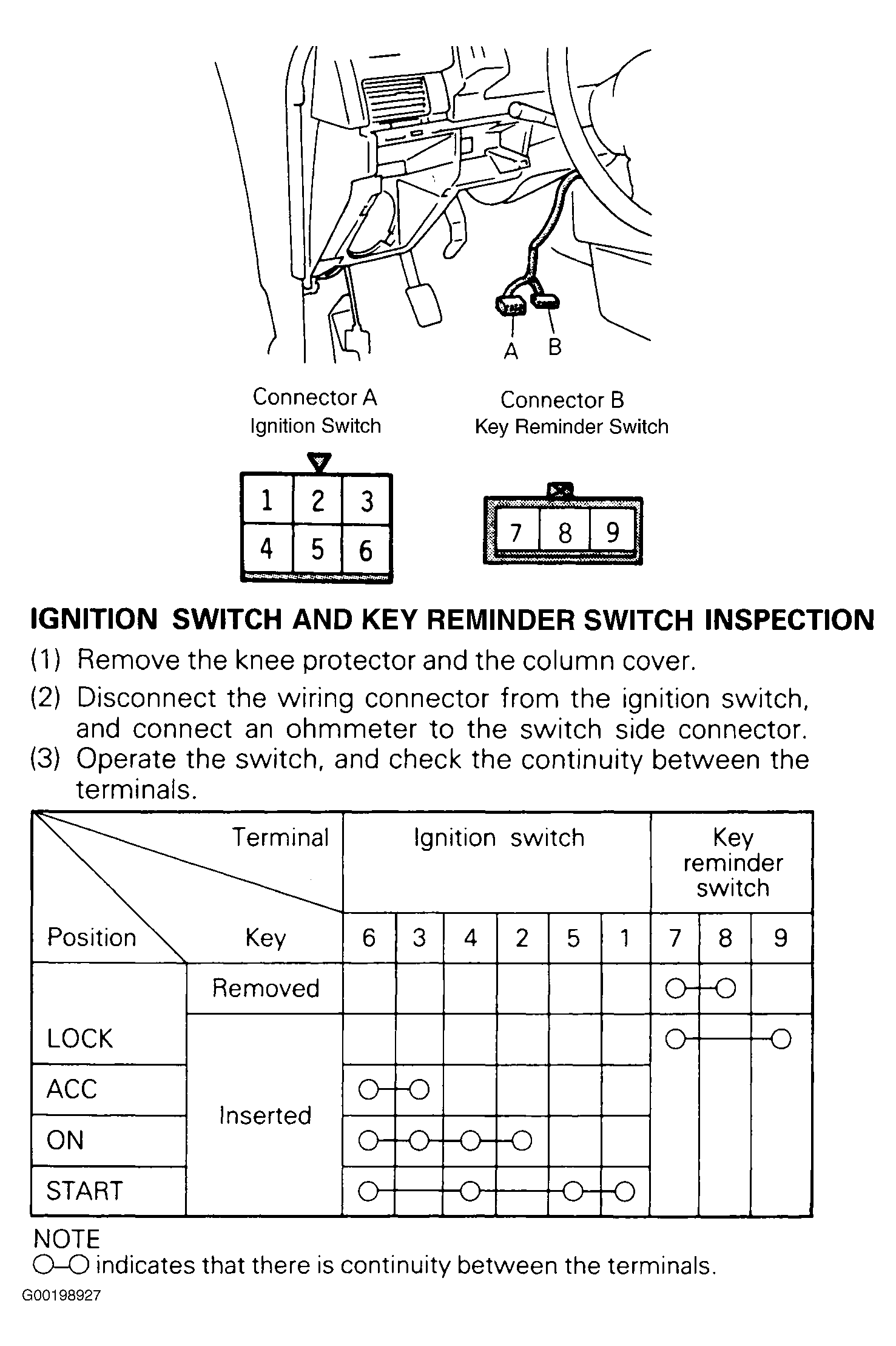

Fig 1: Testing Ignition & Key Reminder Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
