Home › Eagle › 1990 › Summit Base, Automatic › Repair and Diagnosis › Restraints › Passive Restraints › Passive Restraint Systems › Component Tests › Release Switch

Release Switch

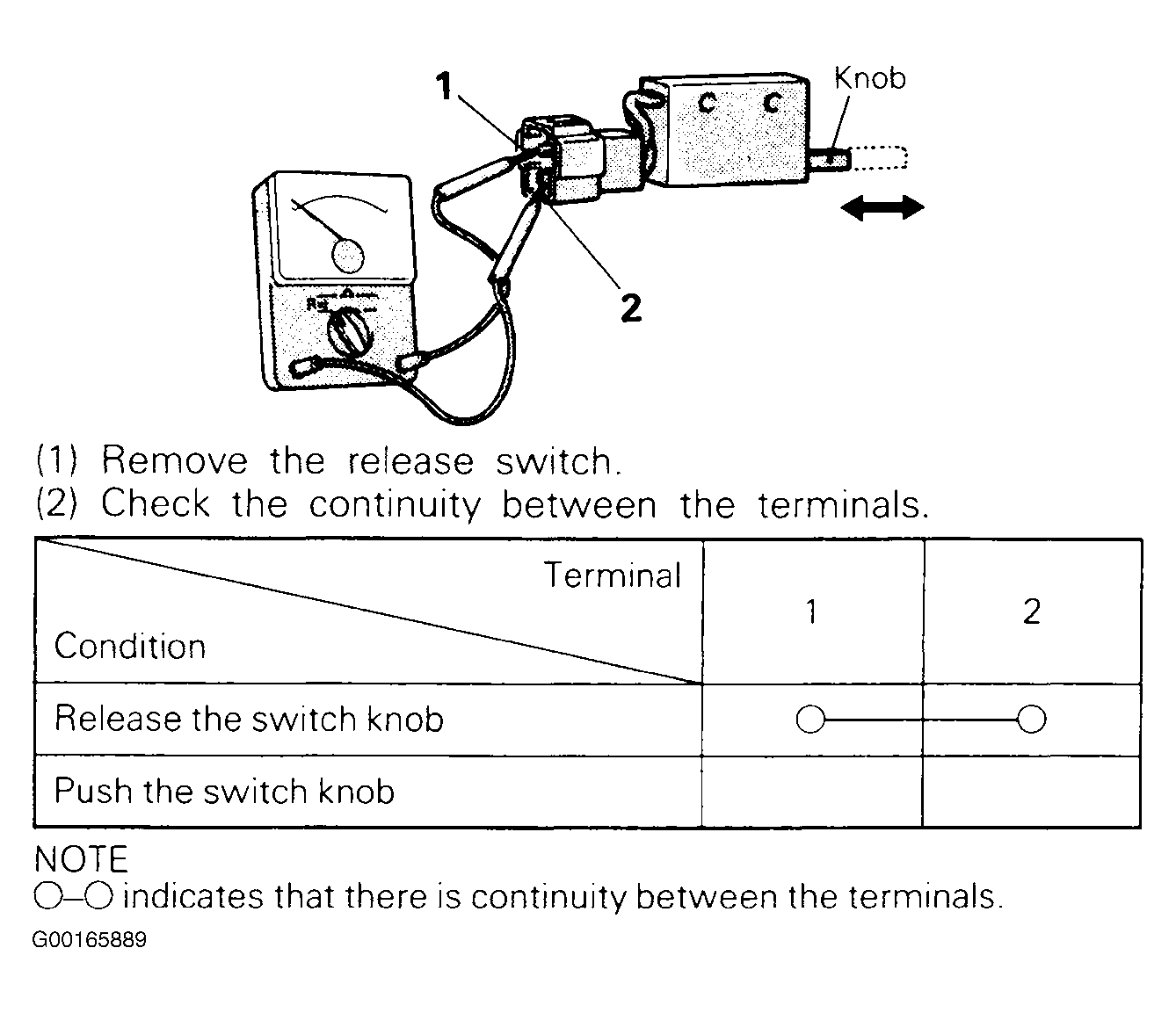

Fig 1: Testing Release Switch
G00165889Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
