Repair and Diagnosis
›
Body & Frame
›
Power Door Locks
›
Component Tests
›
Front Door Lock Actuator
Front Door Lock Actuator

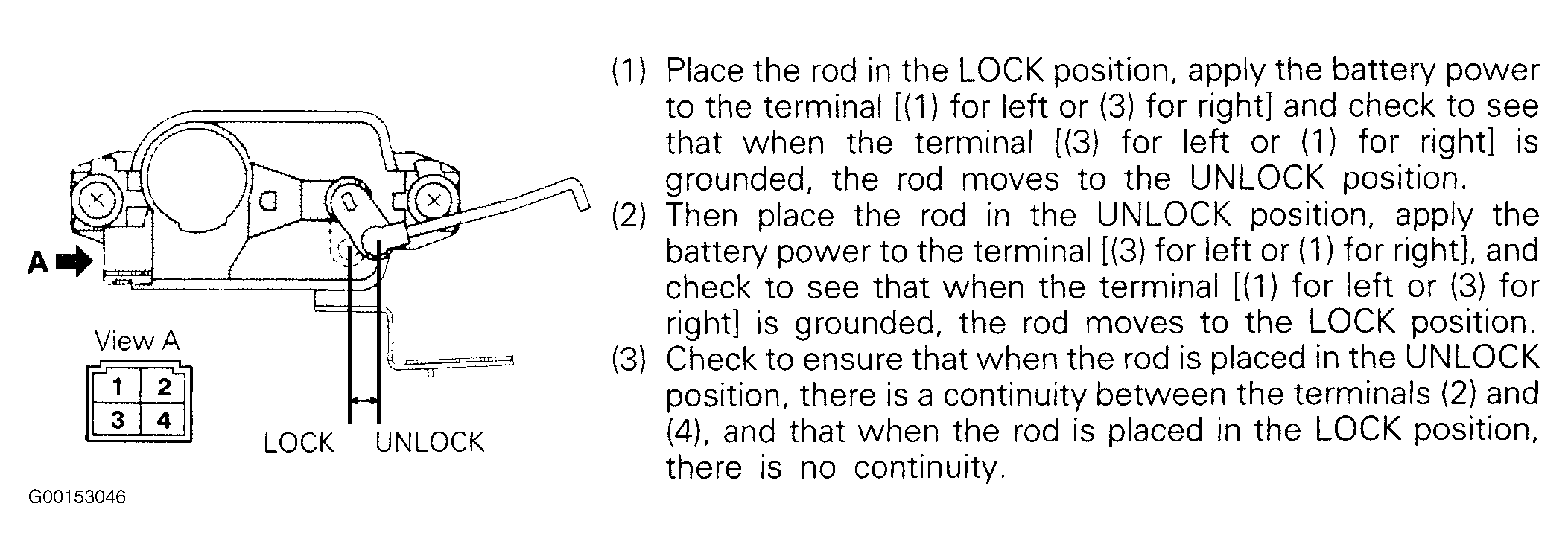

Fig 1: Testing Front Door Lock Actuator
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
