Engine Controls - Tests W/Codes
›
Test Charts - 1.5L
›
Dr-8: Testing Self-Diagnostic Connector
Dr-8: Testing Self-Diagnostic Connector
Fig 1: Circuit Diagram DR-8 (1.5L)

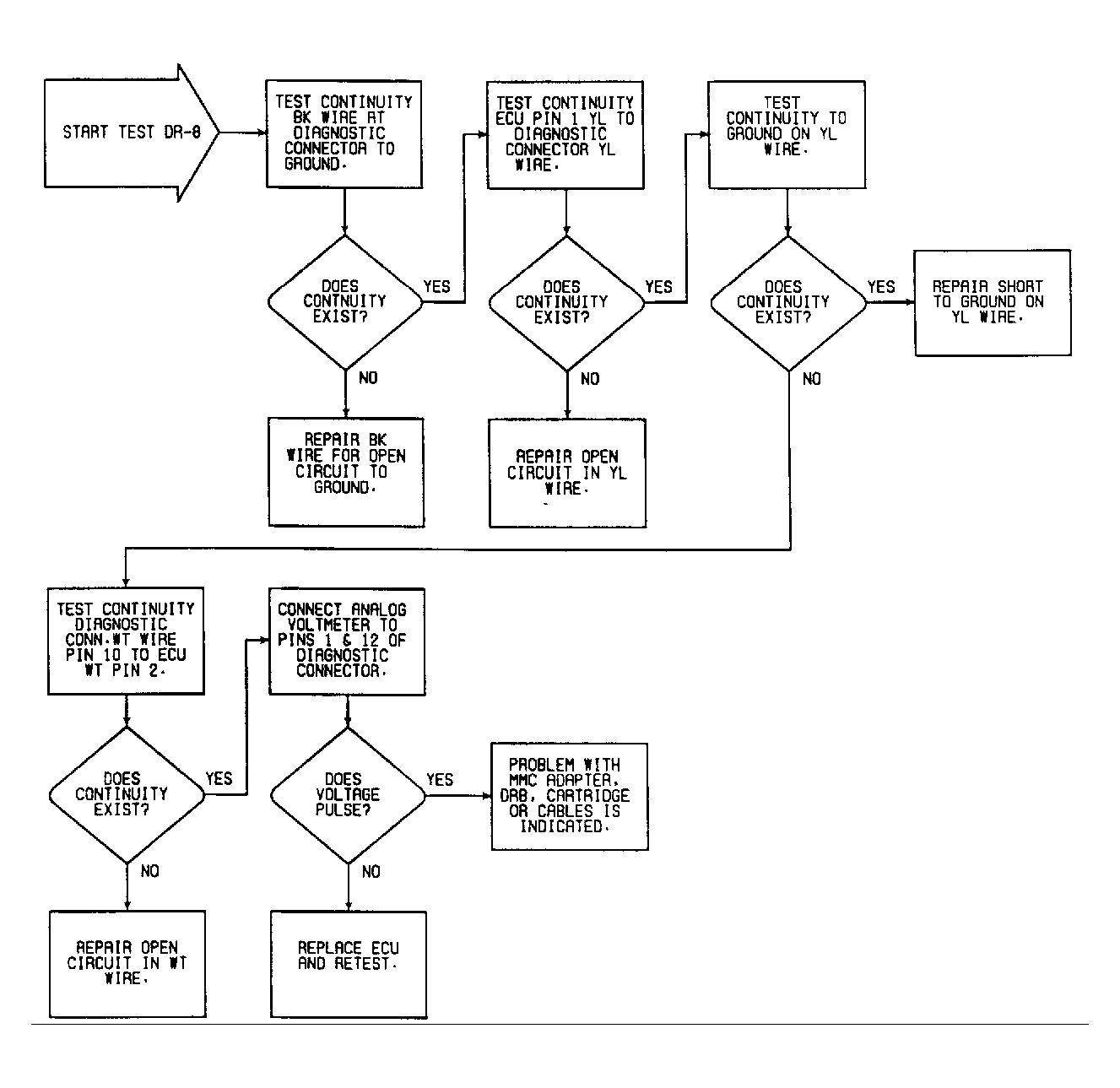

Fig 2: Flow Chart DR-8 (1.5L)
