Dr-15: Code 44 Ignition Coil Circuit

Fig 1: Circuit Diagram DR-15 (1.6L)

G90J15395

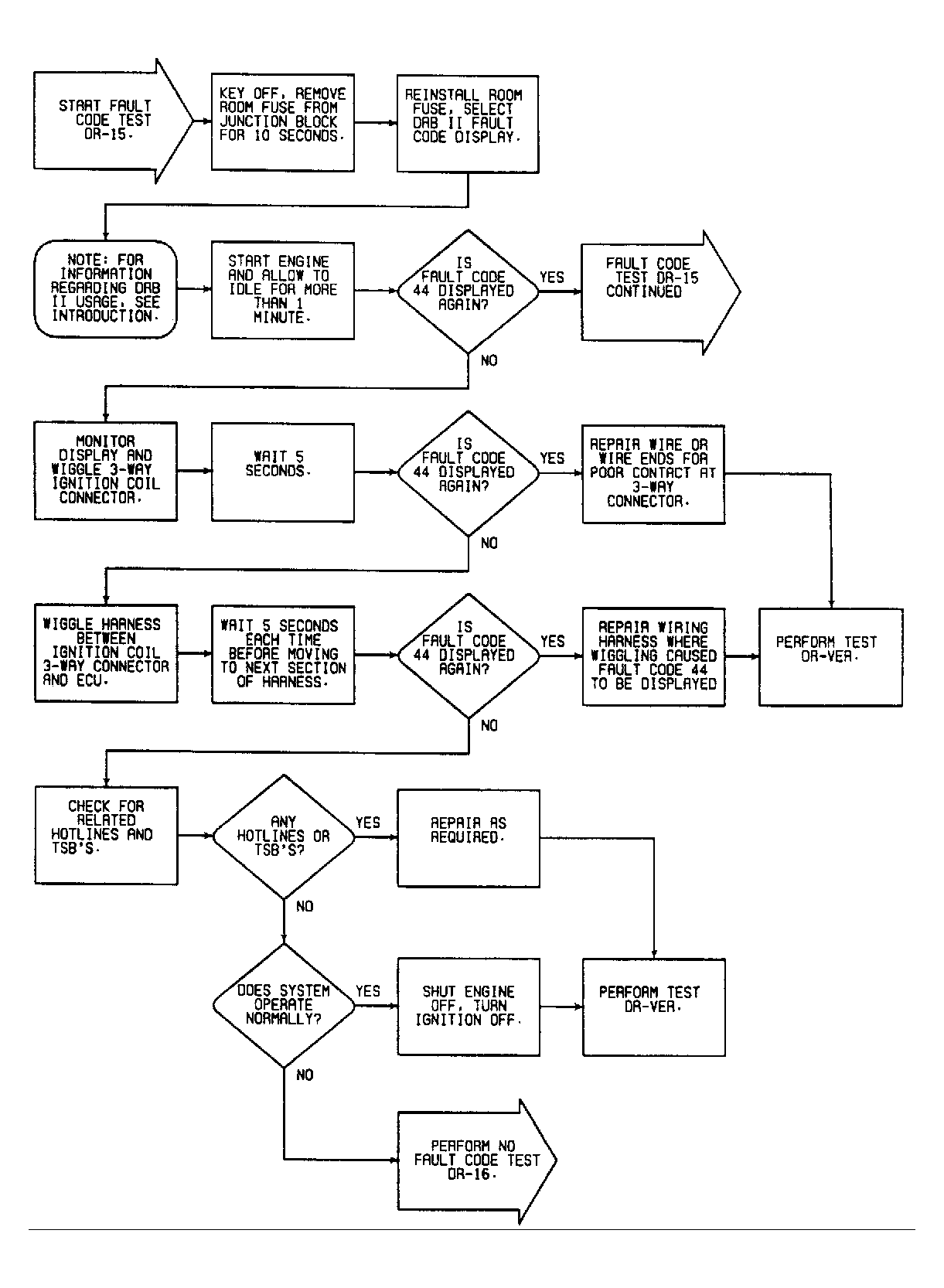

Fig 2: Flow Chart DR-15 (1.6L) (1 of 4)

G90J19959

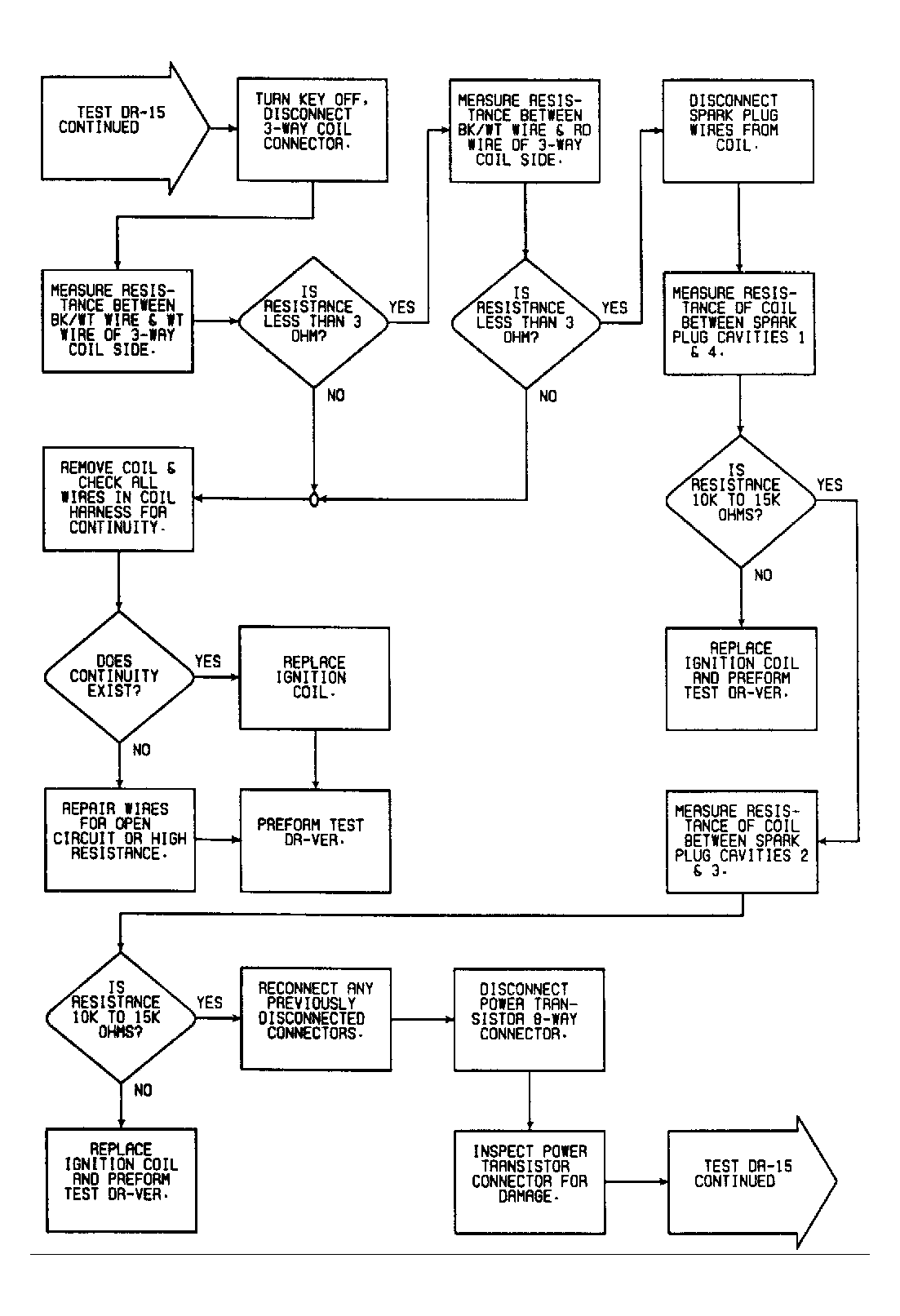

Fig 3: Flow Chart DR-15 (1.6L) (2 of 4)

G90C19960

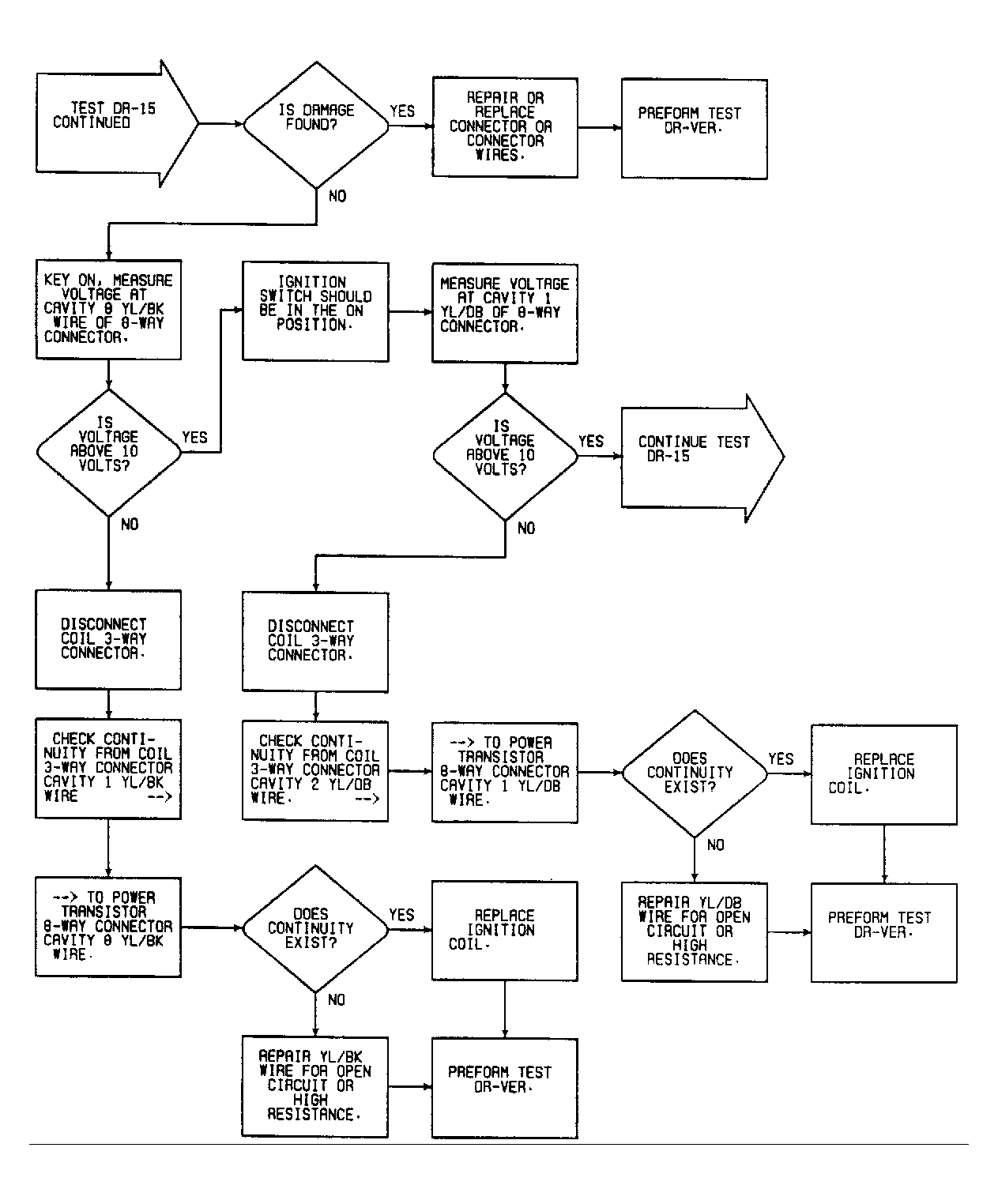

Fig 4: Flow Chart DR-15 (1.6L) (3 of 4)

G90D19961

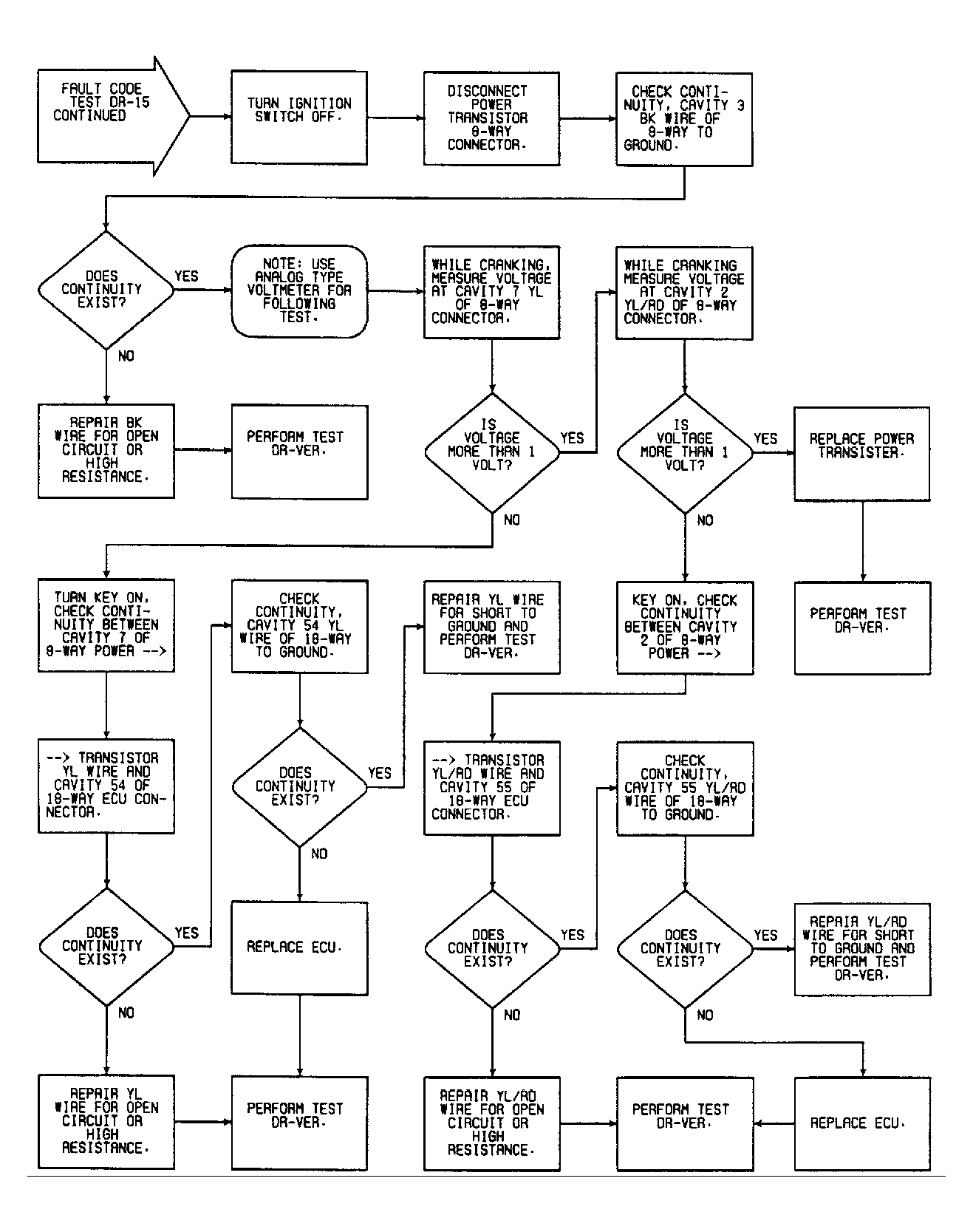

Fig 5: Flow Chart DR-15 (1.6L) (4 of 4)

G90E19962
