Dr-12: Code 41 Injector Circuit

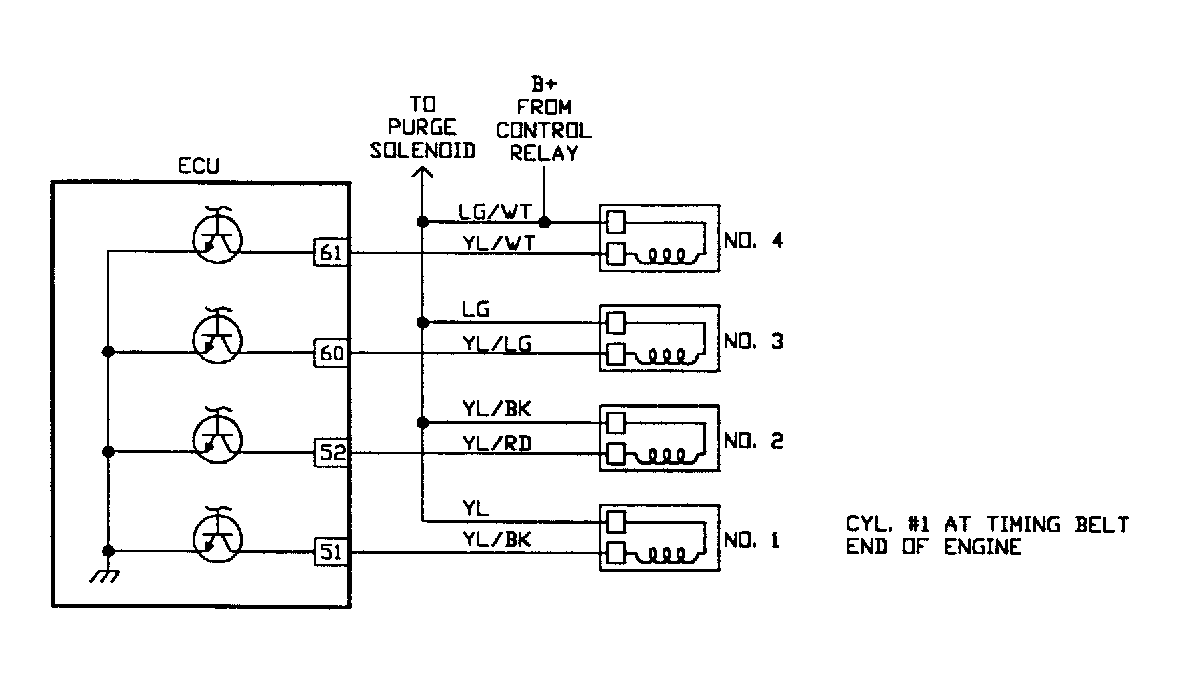

Fig 1: Circuit Diagram DR-12 (1.8L)

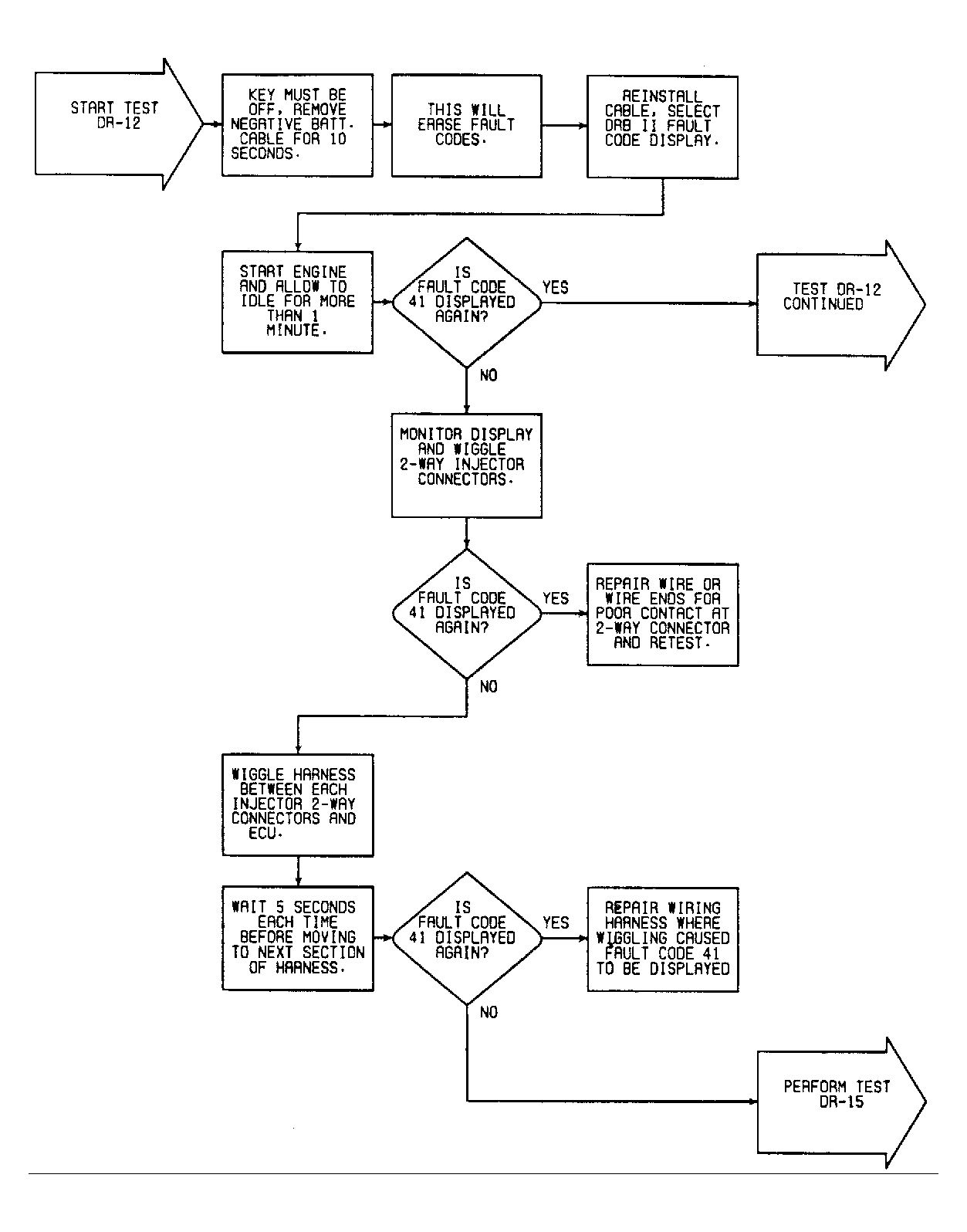

Fig 2: Flow Chart DR-12 (1.8L) (1 of 5)

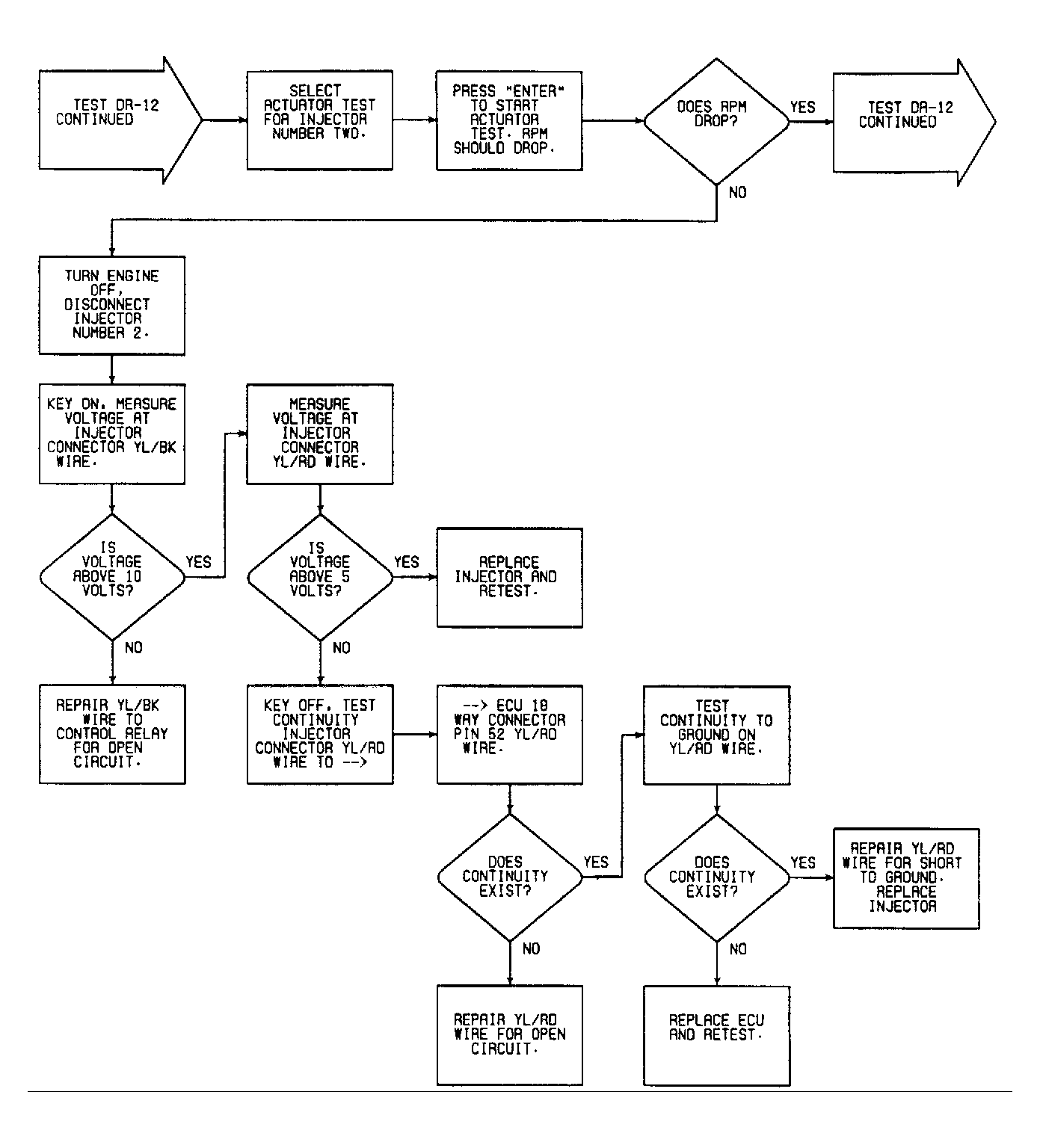

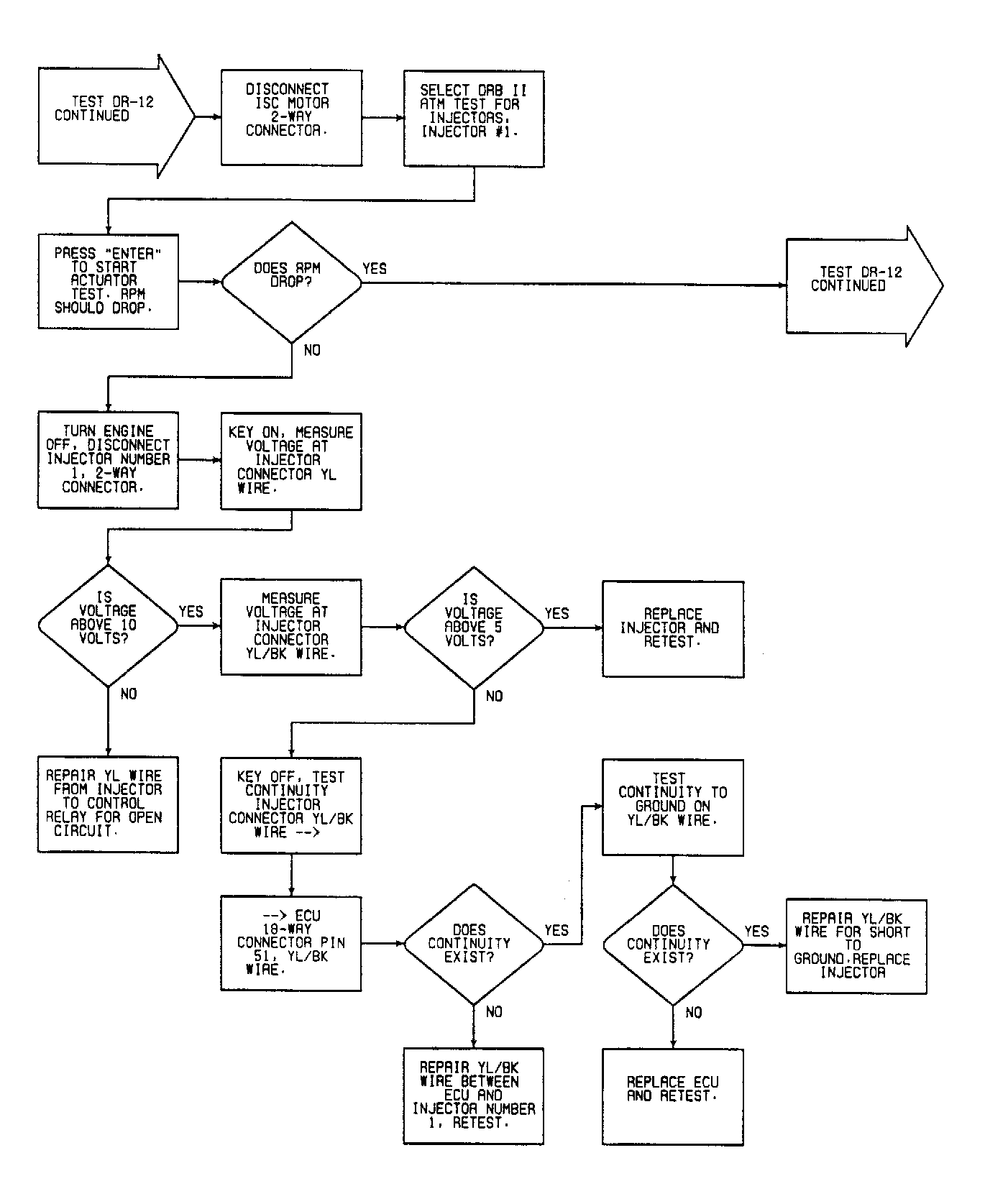

Fig 3: Flow Chart DR-12 (1.8L) (2 of 5)

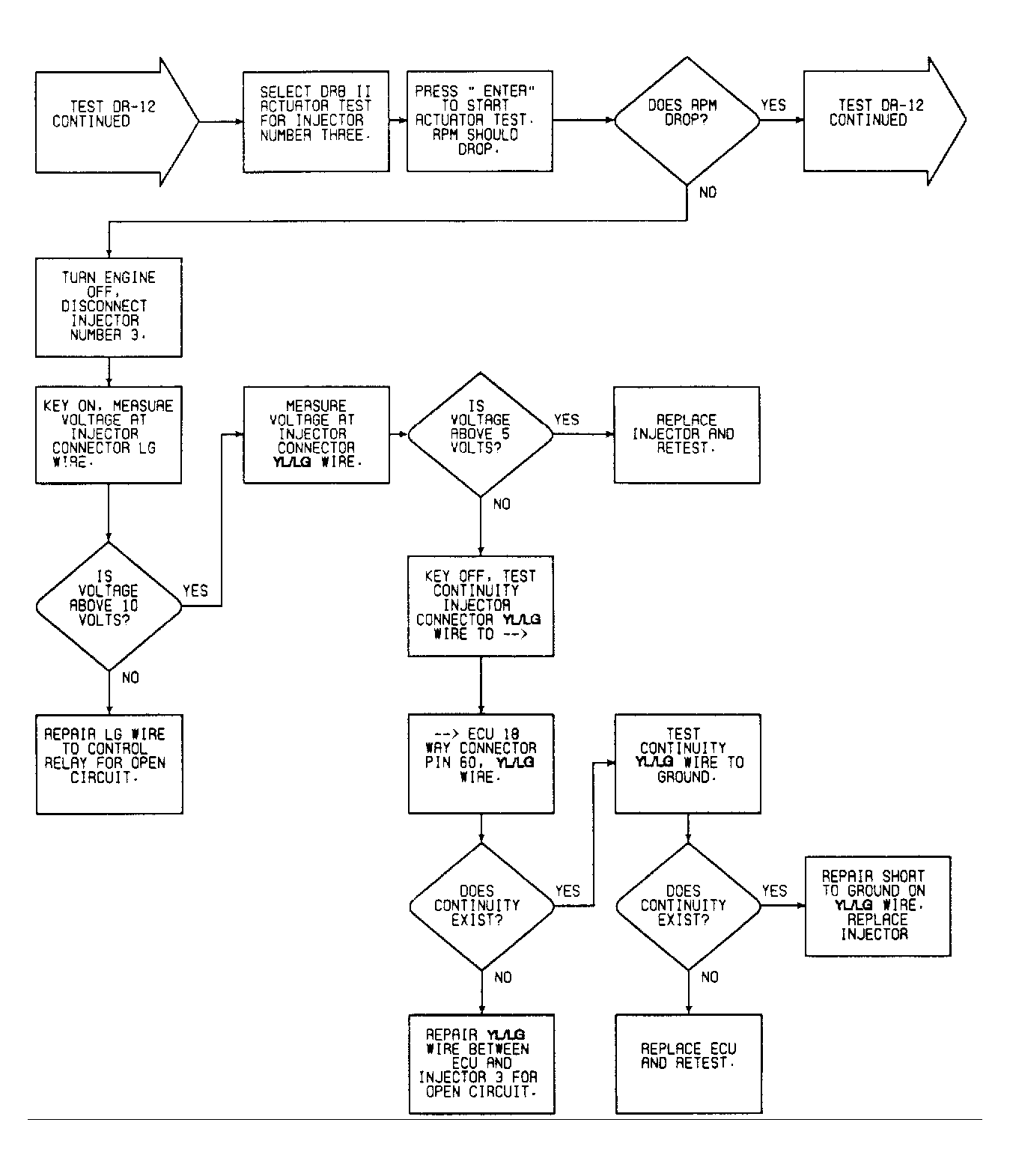

Fig 4: Flow Chart DR-12 (1.8L) (3 of 5)

Fig 5: Flow Chart DR-12 (1.8L) (4 of 5)

Fig 6: Flow Chart DR-12 (1.8L) (5 of 5)
