Dr-12: Checking Barometric Pressure Sensor - Turbo

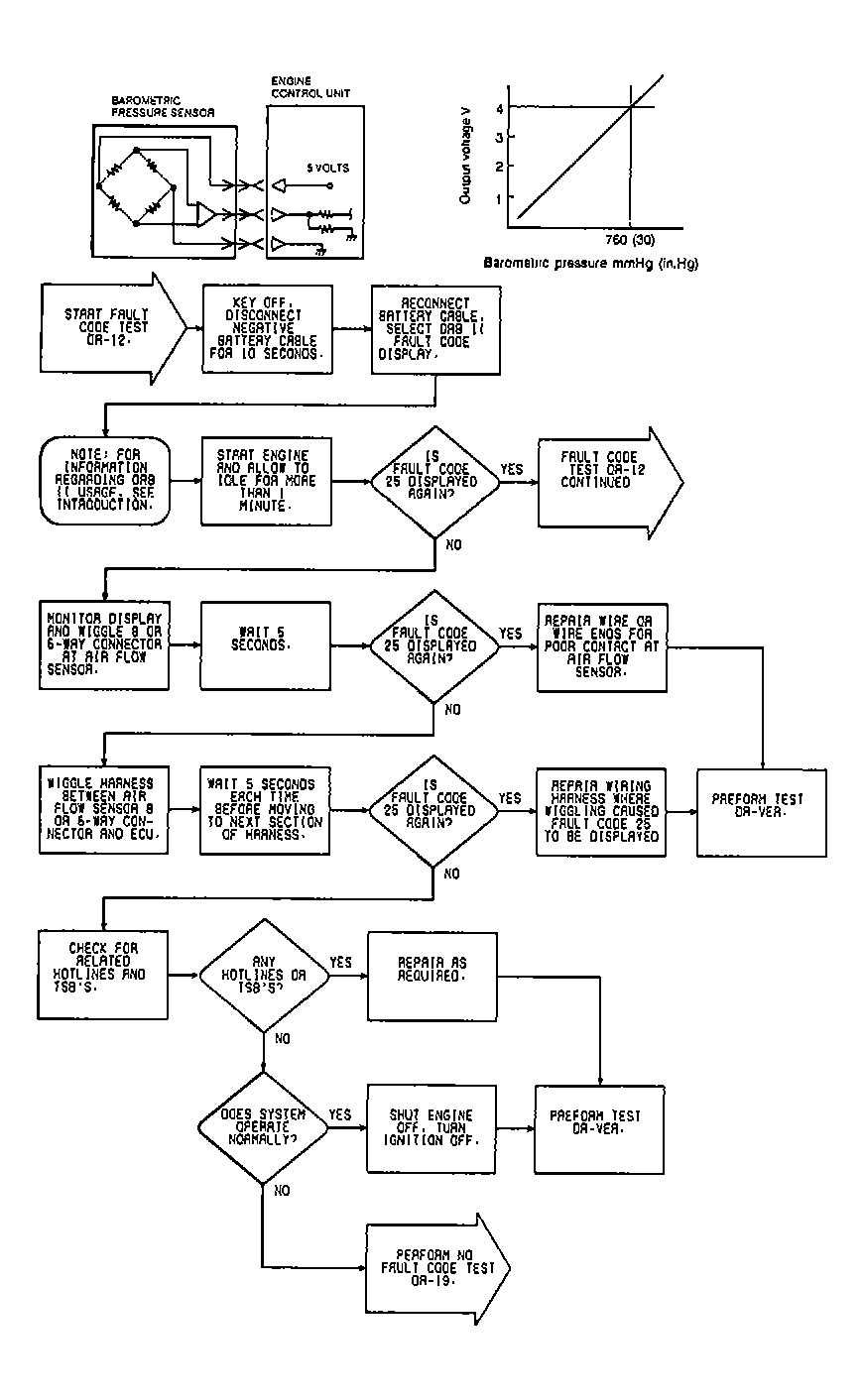

Fig 1: DR-12 Flow Chart & Circuit Diagram (2.0L Turbo) (1 of 2)

G90F12687

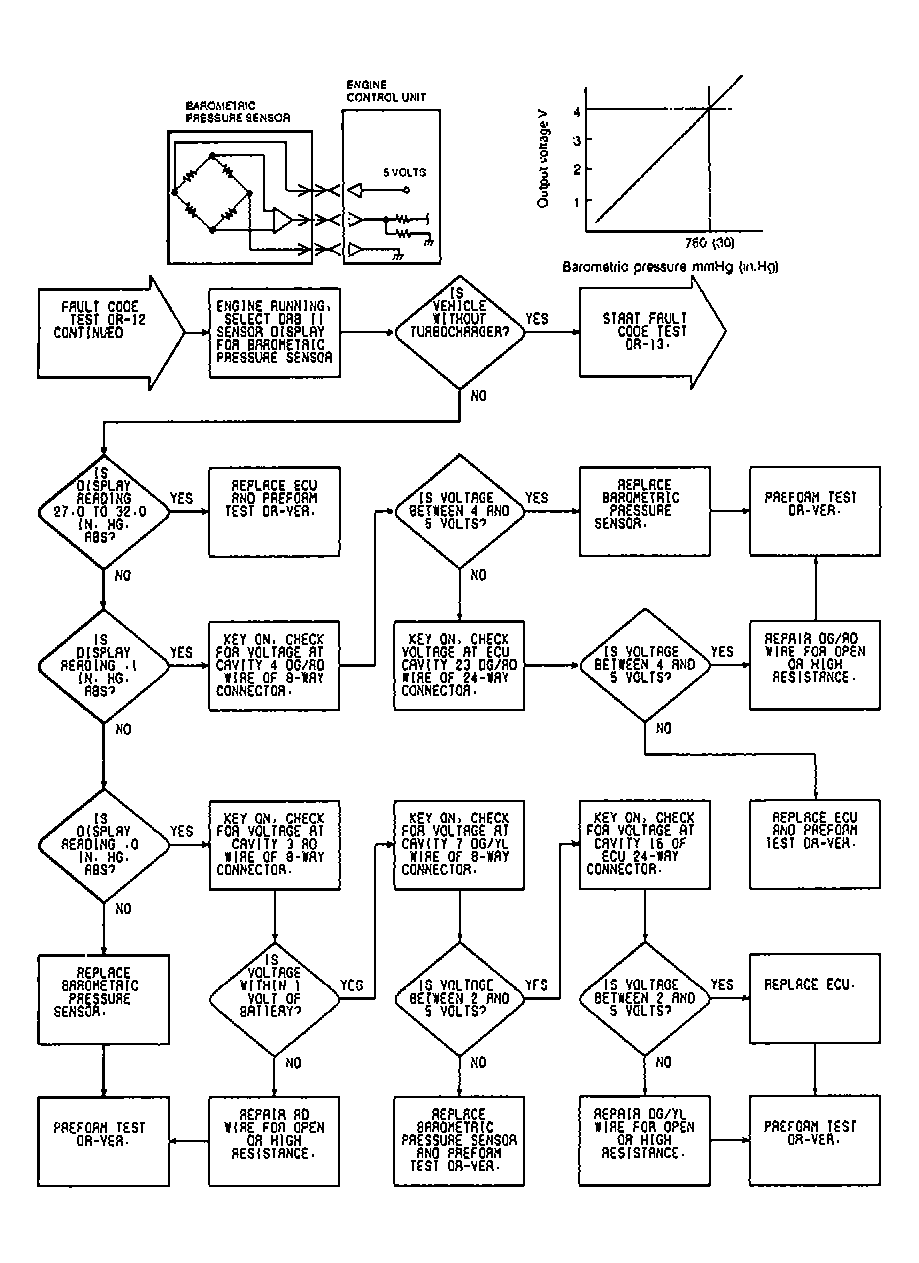

Fig 2: DR-12 Flow Chart & Circuit Diagram (2.0L Turbo) (2 of 2)

G90G12688
