Dr-18: Checking Ignition Coil Circuit

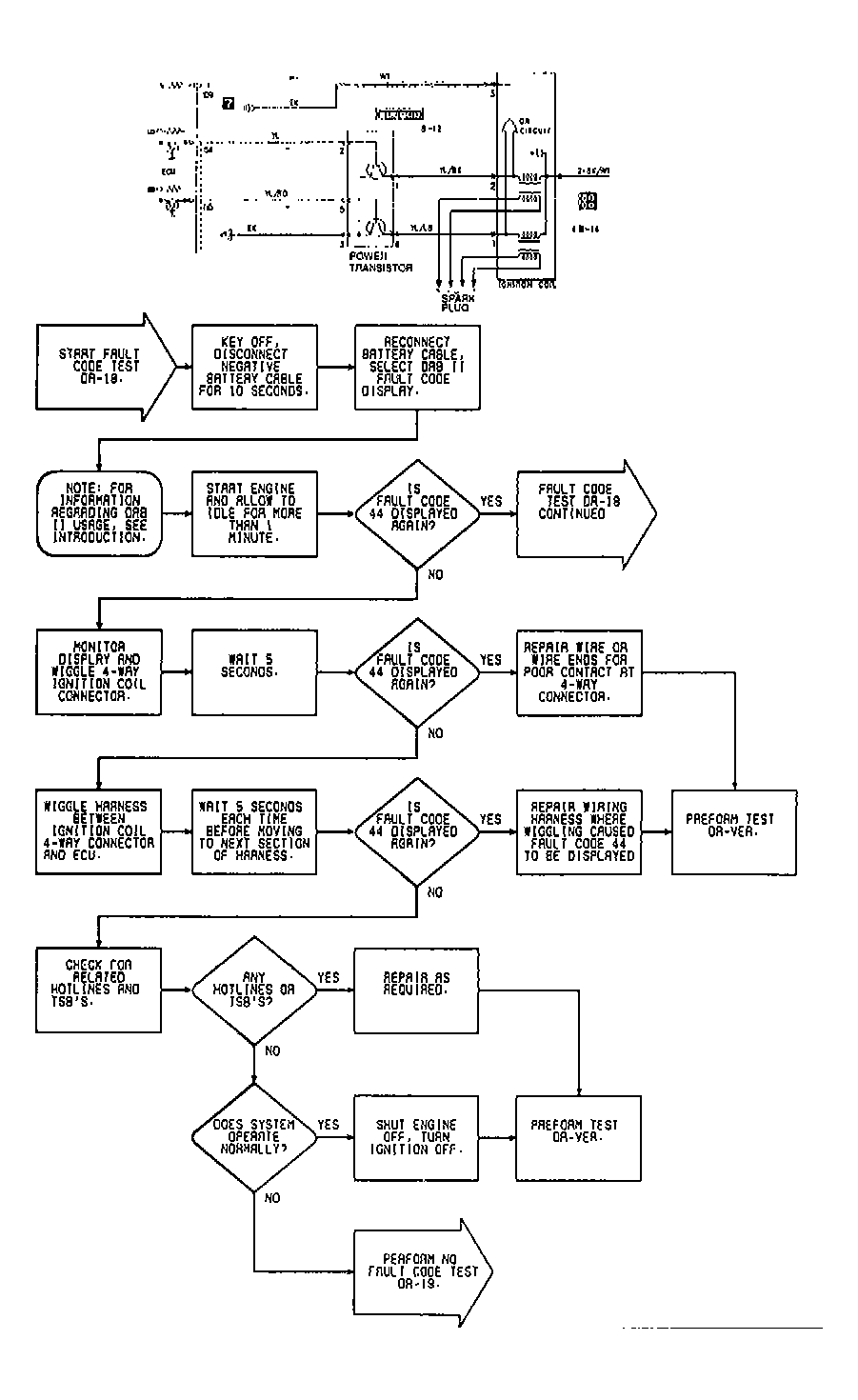

Fig 1: DR-18 Flow Chart & Circuit Diagram (2.0L) (1 of 4)

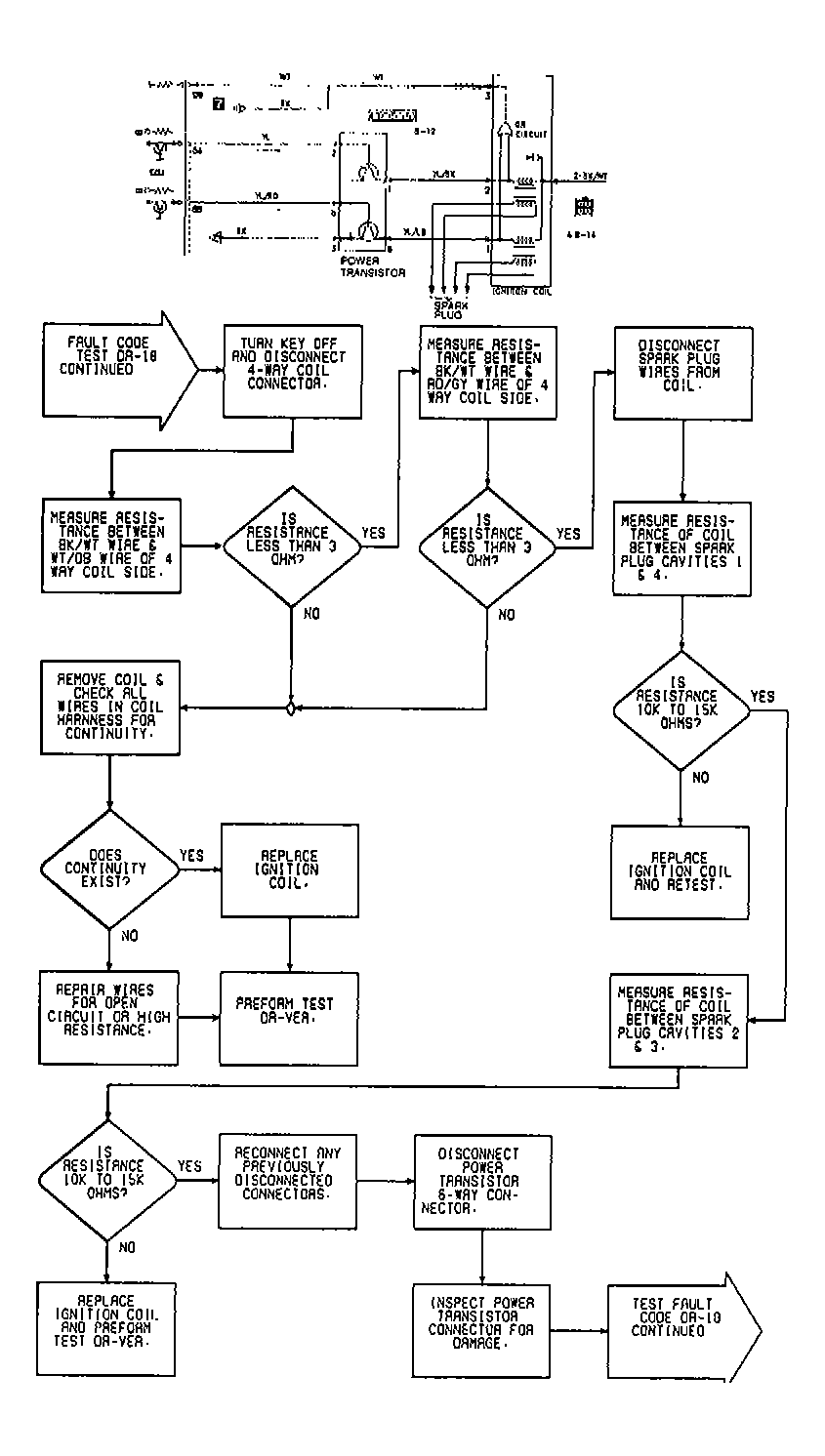

Fig 2: DR-18 Flow Chart & Circuit Diagram (2.0L) (2 of 4)

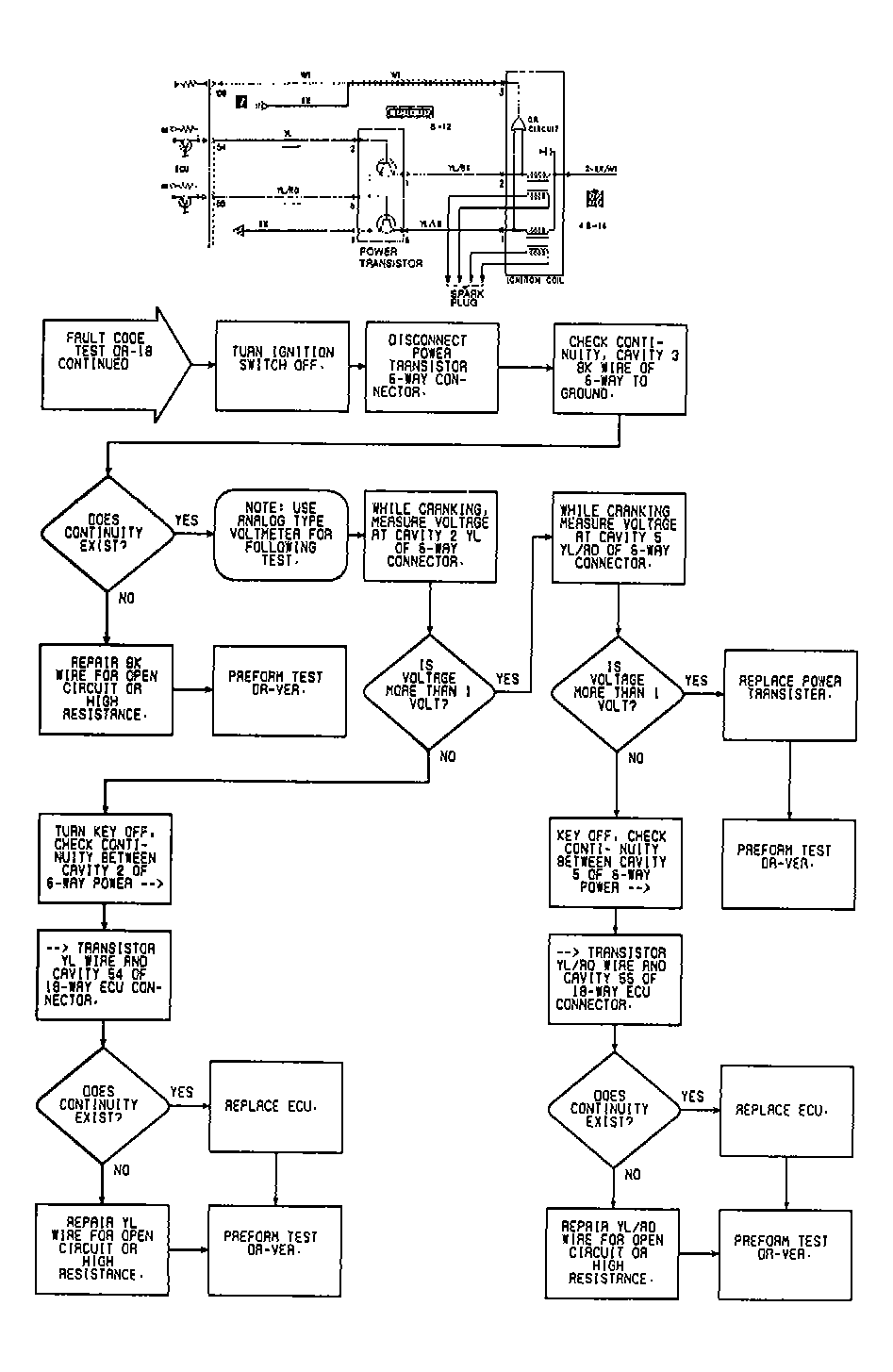

Fig 3: DR-18 Flow Chart & Circuit Diagram (2.0L) (3 of 4)

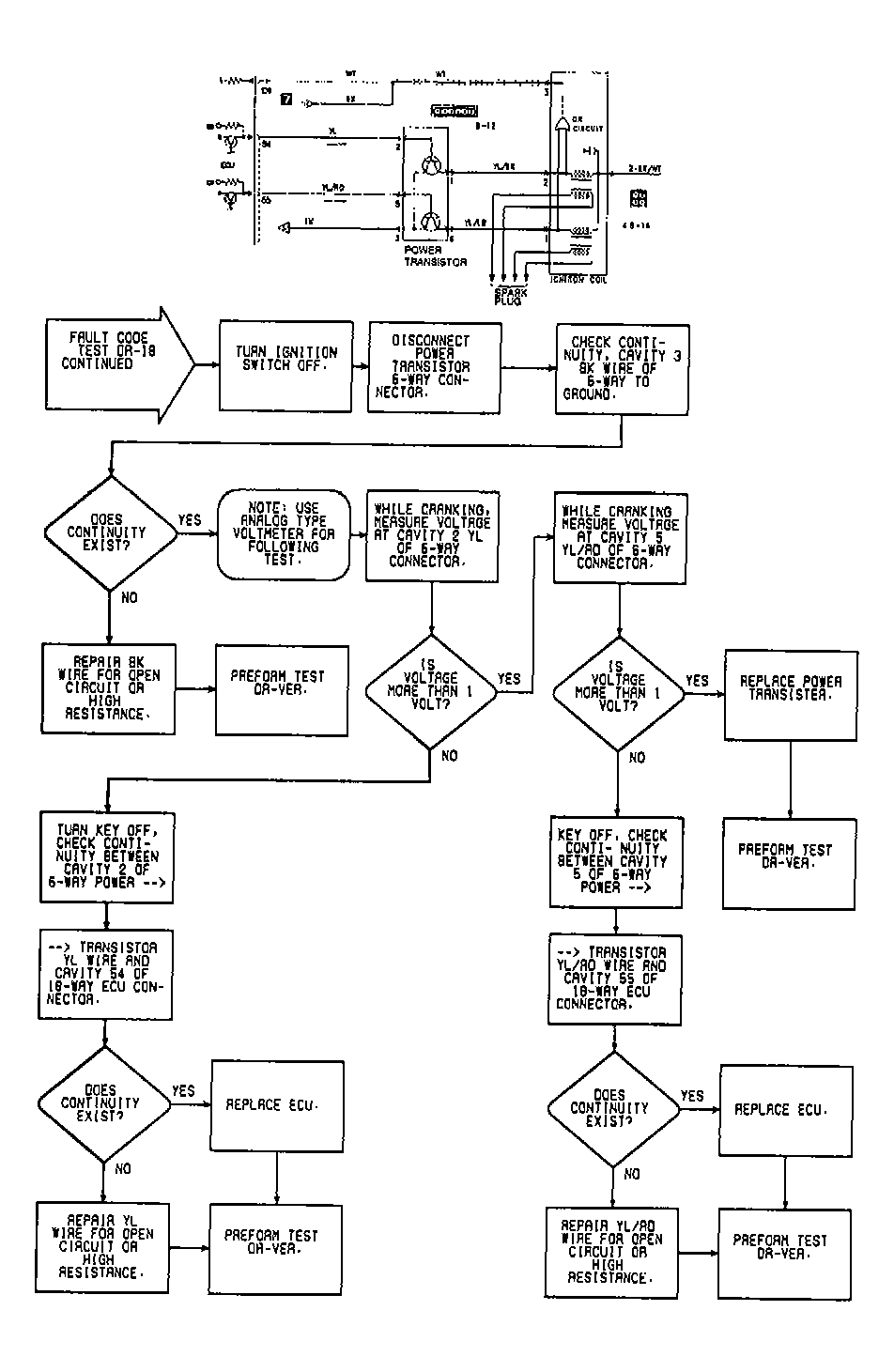

Fig 4: DR-18 Flow Chart & Circuit Diagram (2.0L) (4 of 4)
