Summit Base, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes
›
Test Charts - 2.0L
›
Dr-8: Checking Coolant Temperature Sensor (Cts)
Dr-8: Checking Coolant Temperature Sensor (Cts)

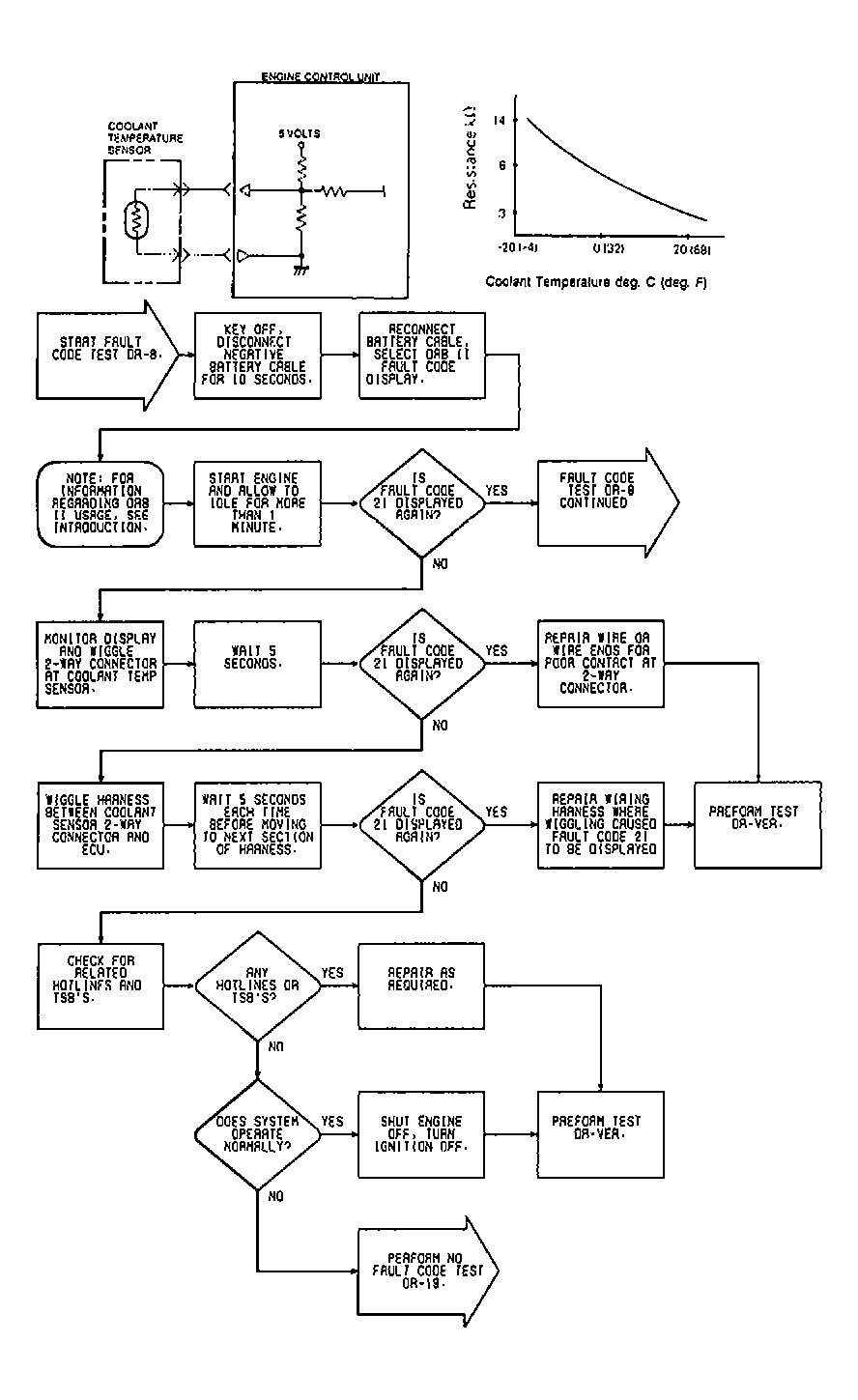

Fig 1: DR-8 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

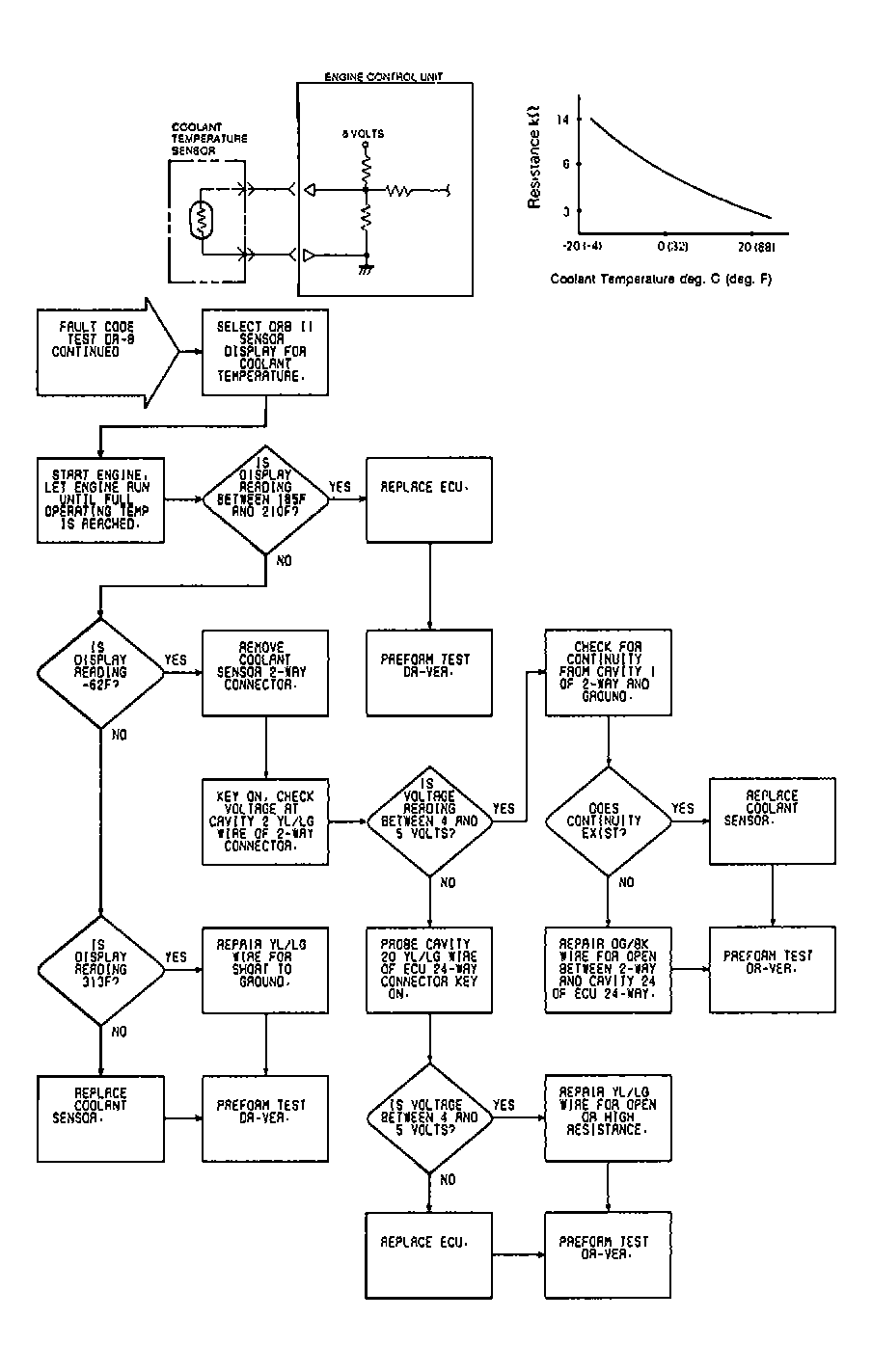

Fig 2: DR-8 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
