Power Steering Pump: Disassembly

1. Remove oil pump rear cover, cam ring, "O" rings and vanes from rotor. See Fig 1 . Remove snap ring from pulley assembly. Remove rotor.
2. To remove pulley assembly from pump body, tap with plastic hammer. Remove suction connector and oil seal from pump body. Remove connector, flow control valve and spring from pump body.

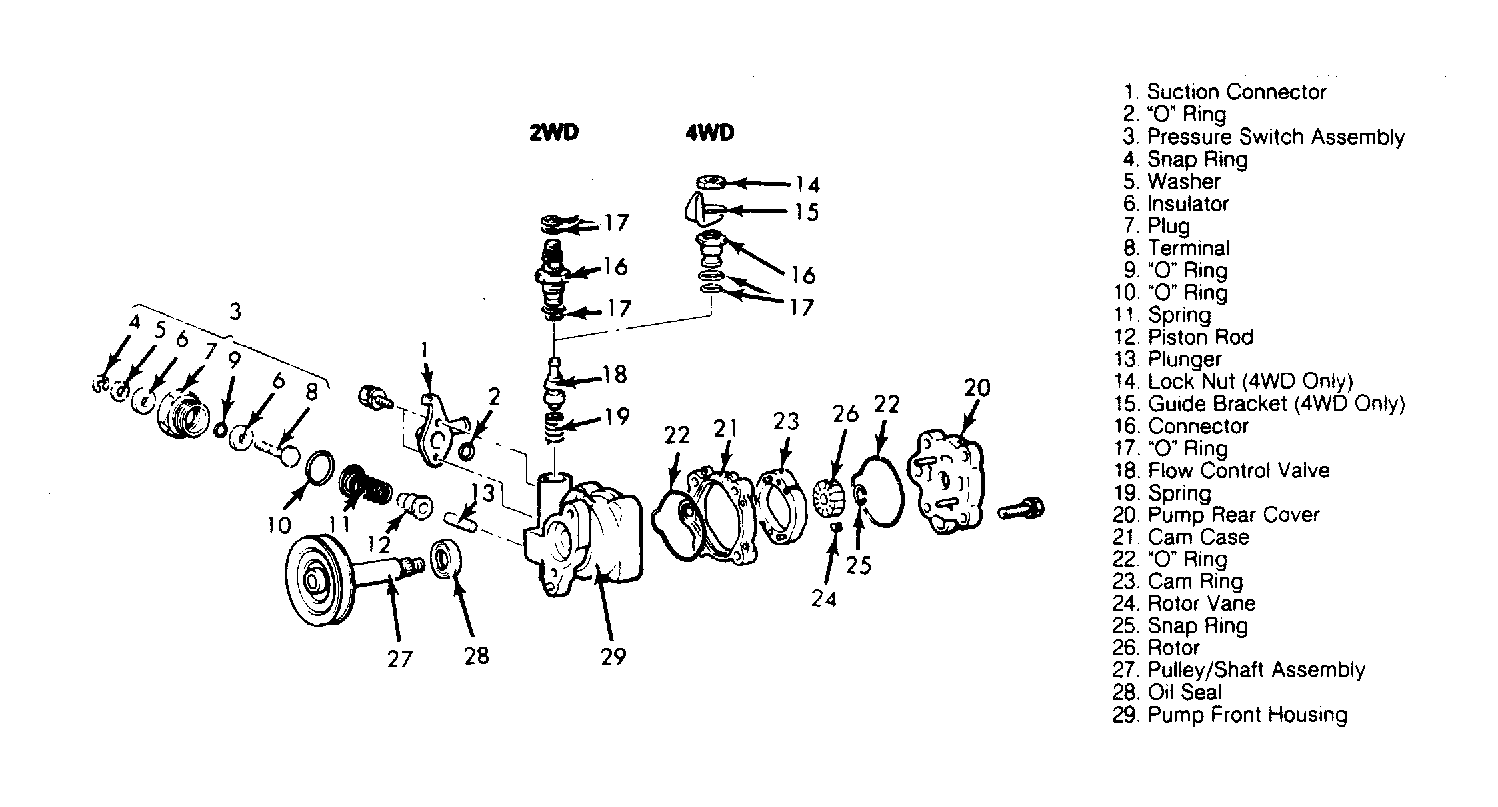

Fig 1: Exploded View of Power Steering Pump (Typical)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
