Wiring Diagrams

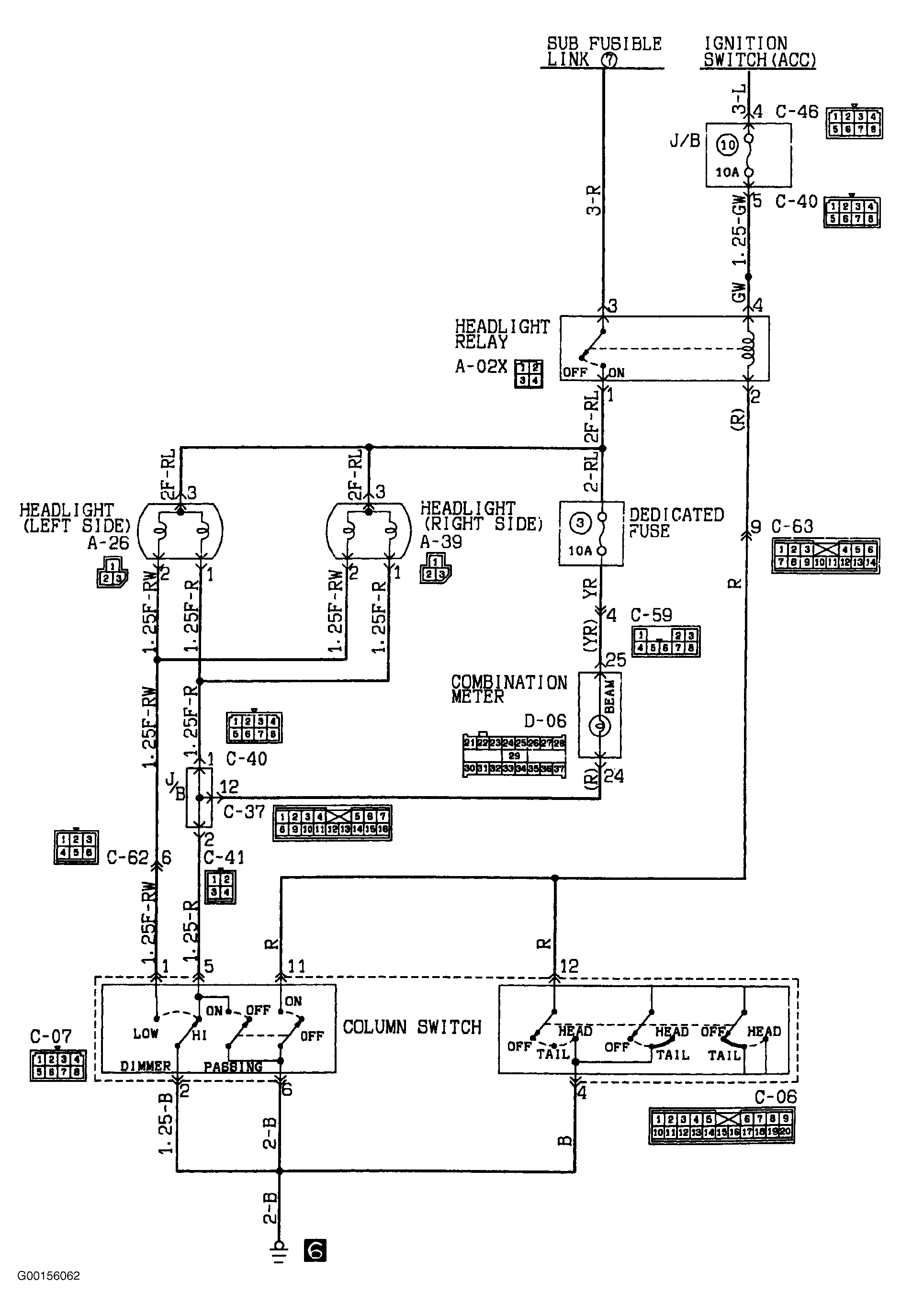

Fig 1: Identifying Headlight Wiring Diagram Circuit
G00156062Courtesy of CHRYSLER CORP.

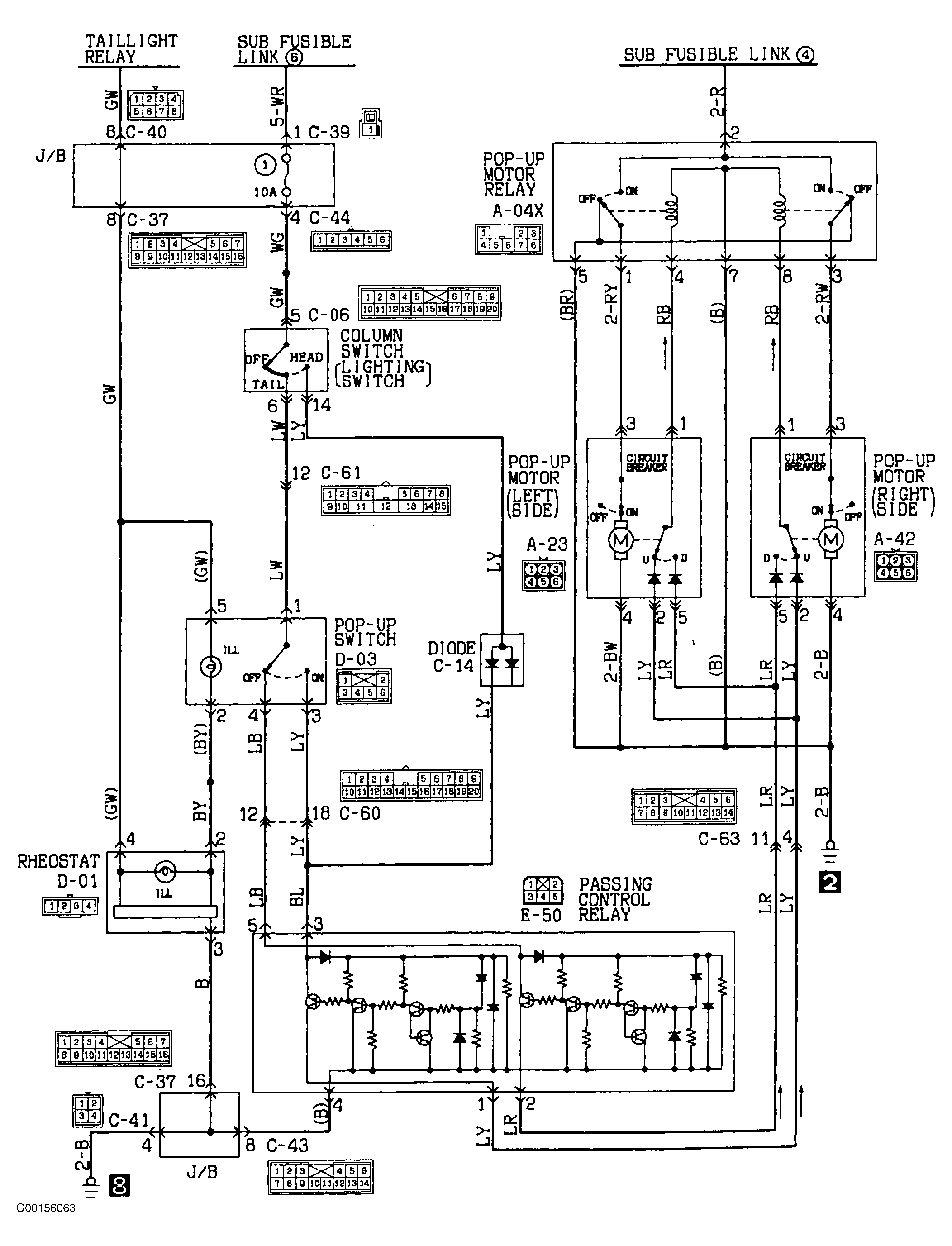

Fig 2: Identifying Pop-Up Mechanism Wiring Circuit
G00156063Courtesy of CHRYSLER CORP.
