FixVault
Home
›
Eagle
›
1990
›
Talon Base, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Power Door Locks
›
Component Tests
›
Door Lock Relay
Door Lock Relay

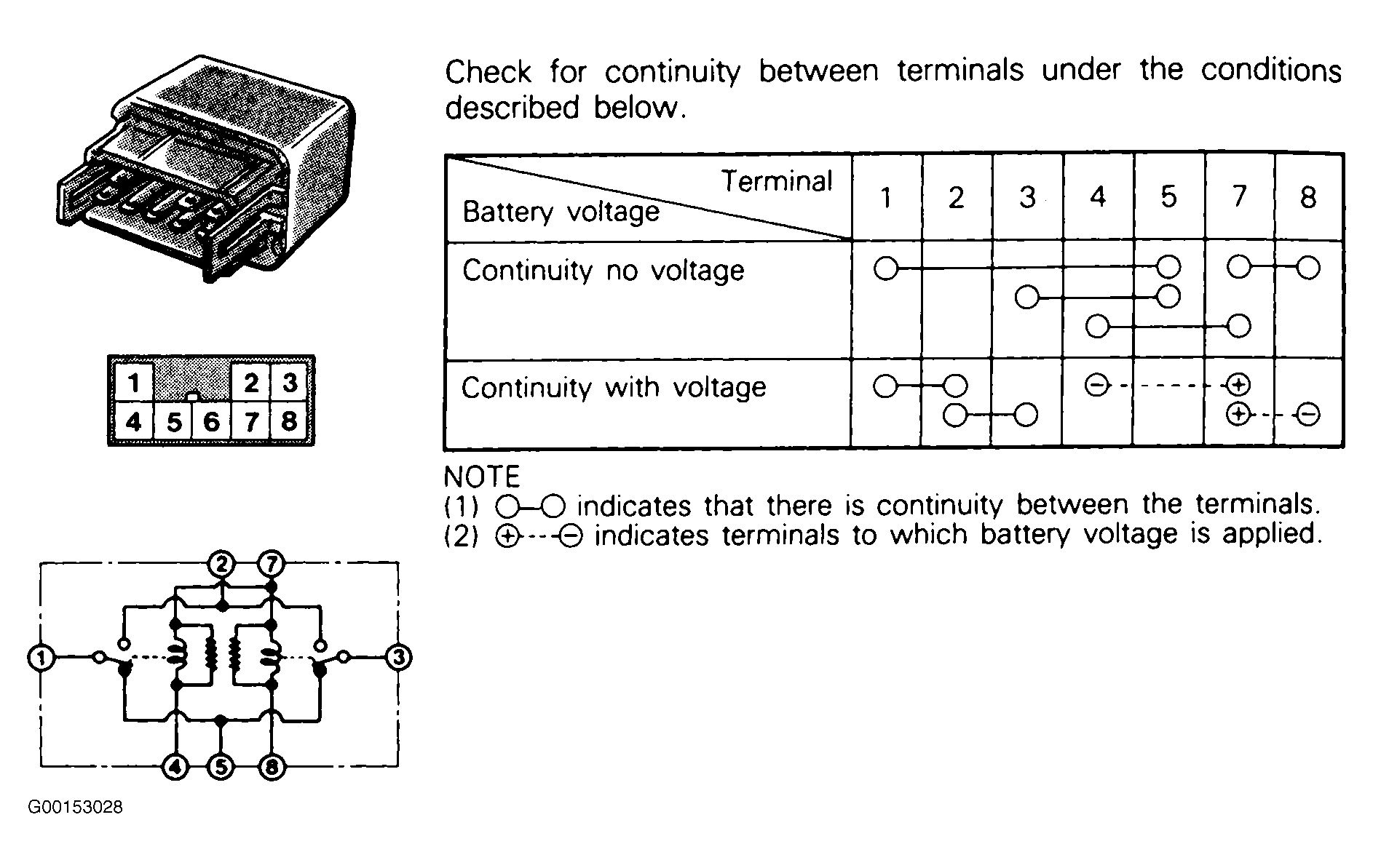

Fig 1: Testing Door Lock Relay Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.
