Talon Base, Automatic
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Cooling Fan
›
Wiring Diagrams
Wiring Diagrams

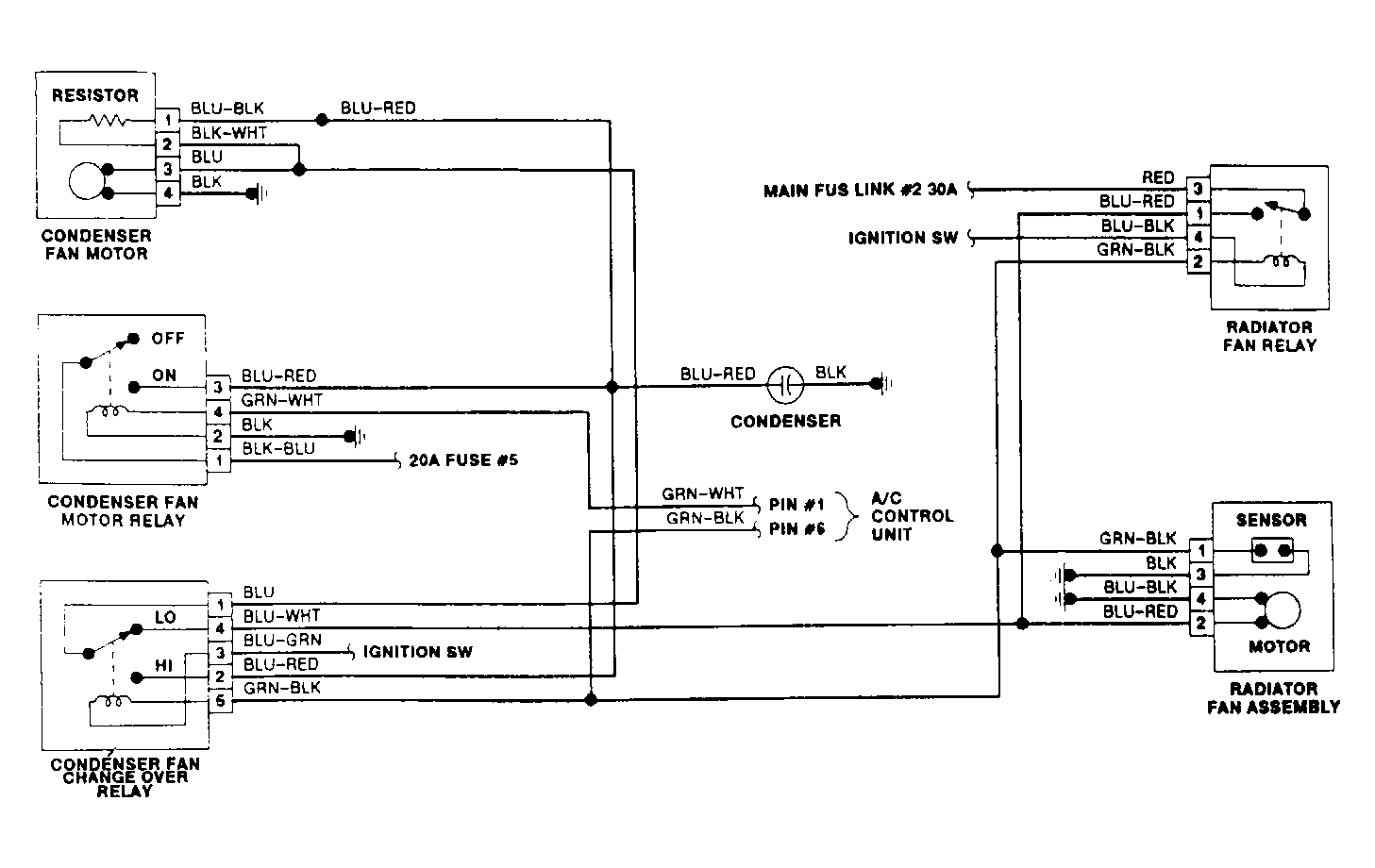

Fig 1: Laser & Talon (With A/C) Electric Cooling Fan Wiring Diagram
Fig 2: Laser & Talon (Without A/C) Electric Cooling Fan Wiring Diagram
