Engine Controls - Tests W/Codes - 2.0L
›
Verification Tests
›
Dr-VER: DRIVEABILITY Verification Test
Dr-VER: DRIVEABILITY Verification Test

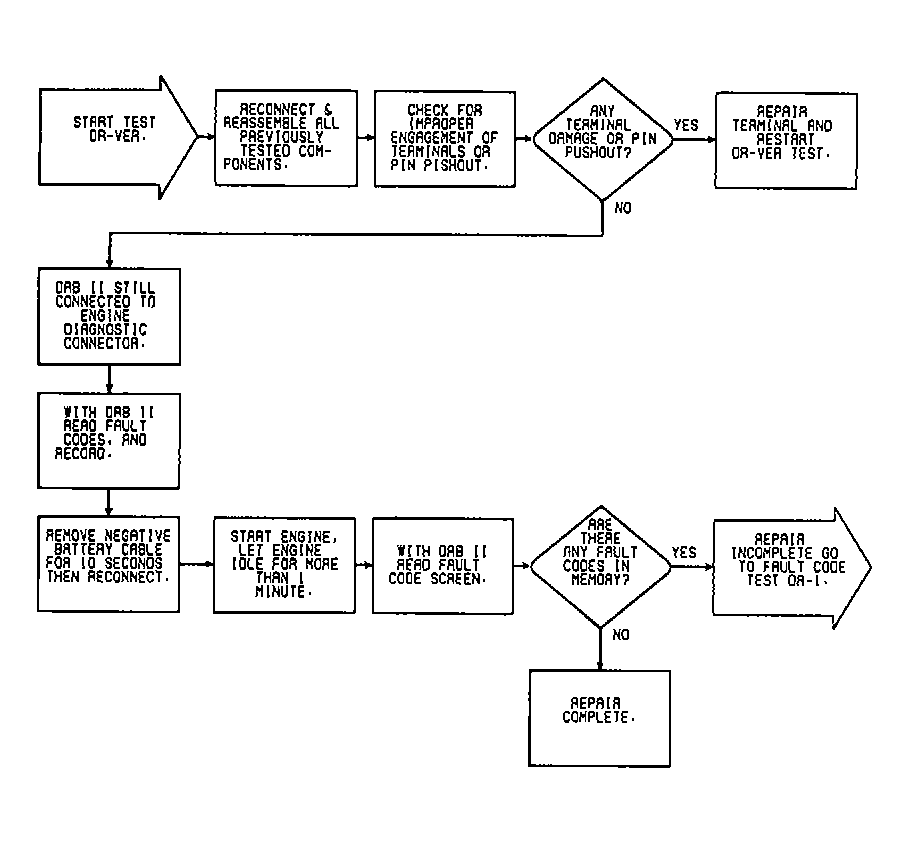

Fig 1: DR-VER Flow Chart
