Control Panel

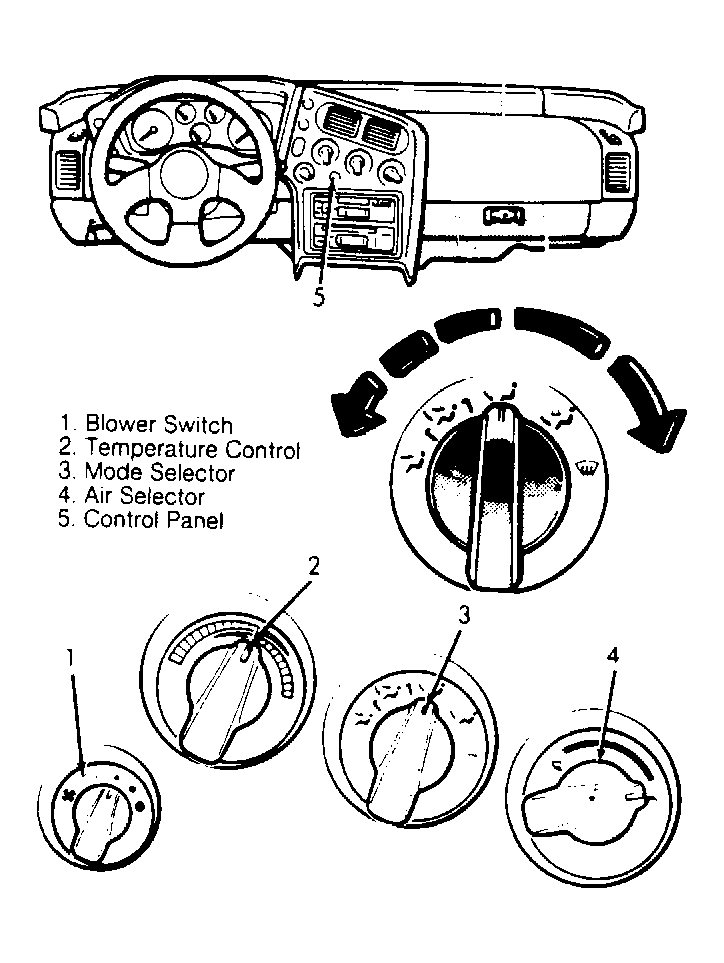

Control panel, located in a pod on right side of steering column, has a 4-speed blower switch. A temperature control knob selects temperature level by turning clockwise for warmer and counterclockwise for cooler. An air selector knob selects either outside air or recirculated air. See Figure . A mode selector knob allows choice of 6 main flow directions:
