Headlight Assembly: Installation

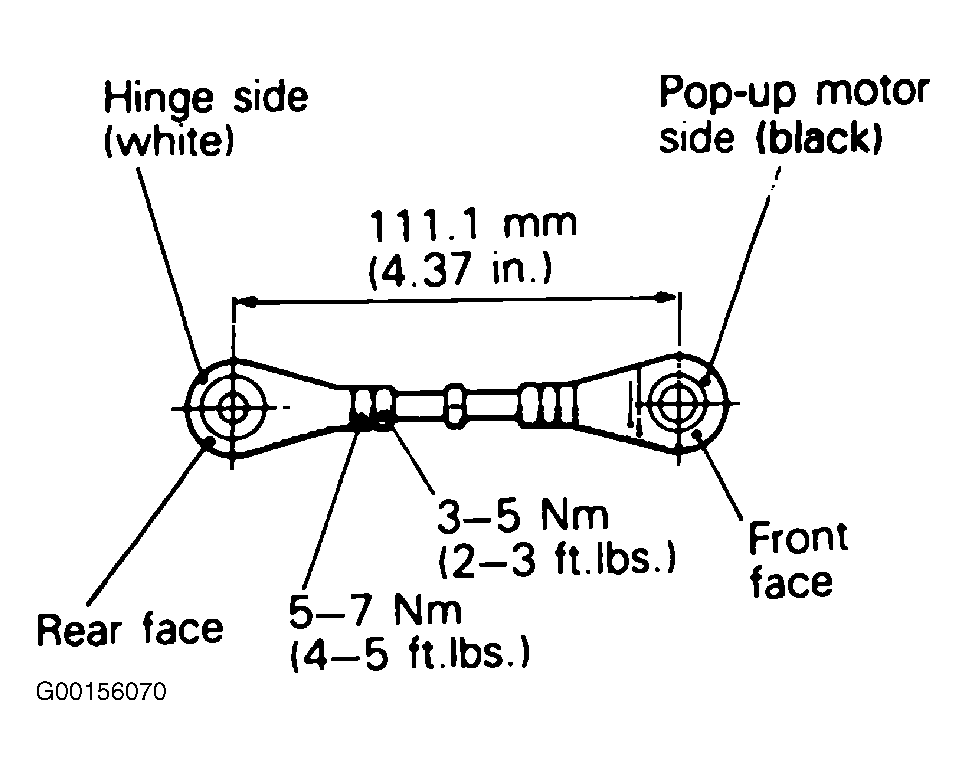

Check the link assembly for proper length. See Fig 1 .

Fig 1: Identifying Link Assembly Correct Length
Courtesy of CHRYSLER CORP.

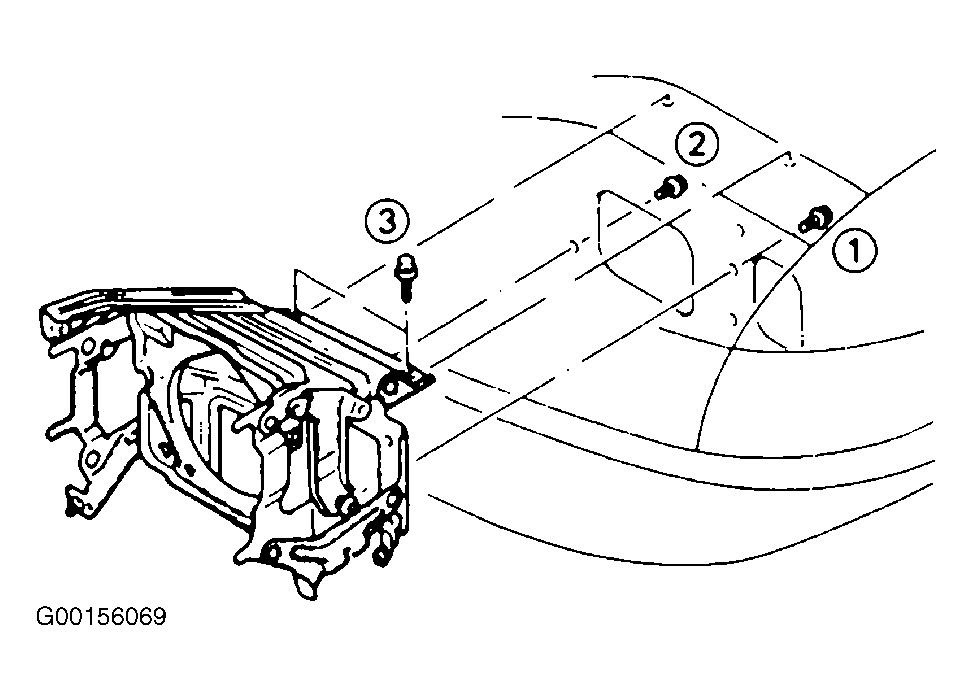

Mount hinge by tightening the hinge mounting bolts in sequence. See Figure .

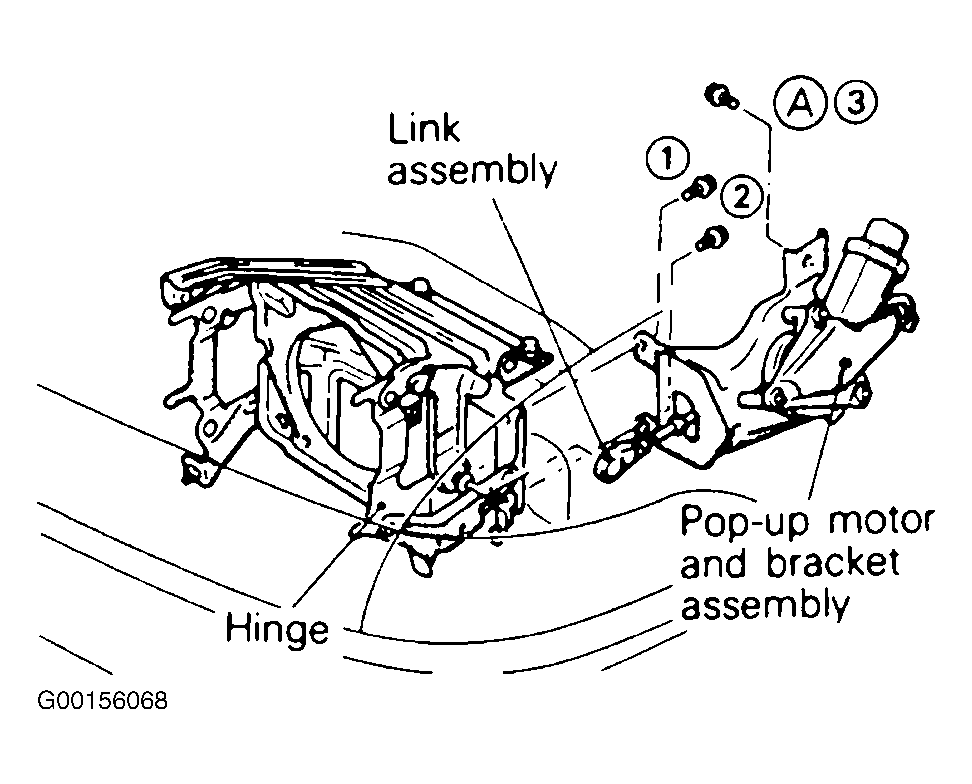

After attaching the link assembly to the hinge, loosely tighten bolt A. Then, mount the pop-up motor and bracket assembly by tightening the bolts in sequence. See Figure .
To install, reverse the removal procedure.
