Instrument Panel Switches Test

Remove switch in question. See INSTRUMENT PANEL SWITCHES  in REMOVAL & INSTALLTION. Use ohmmeter to check for proper switch continuity. See Fig 1 .

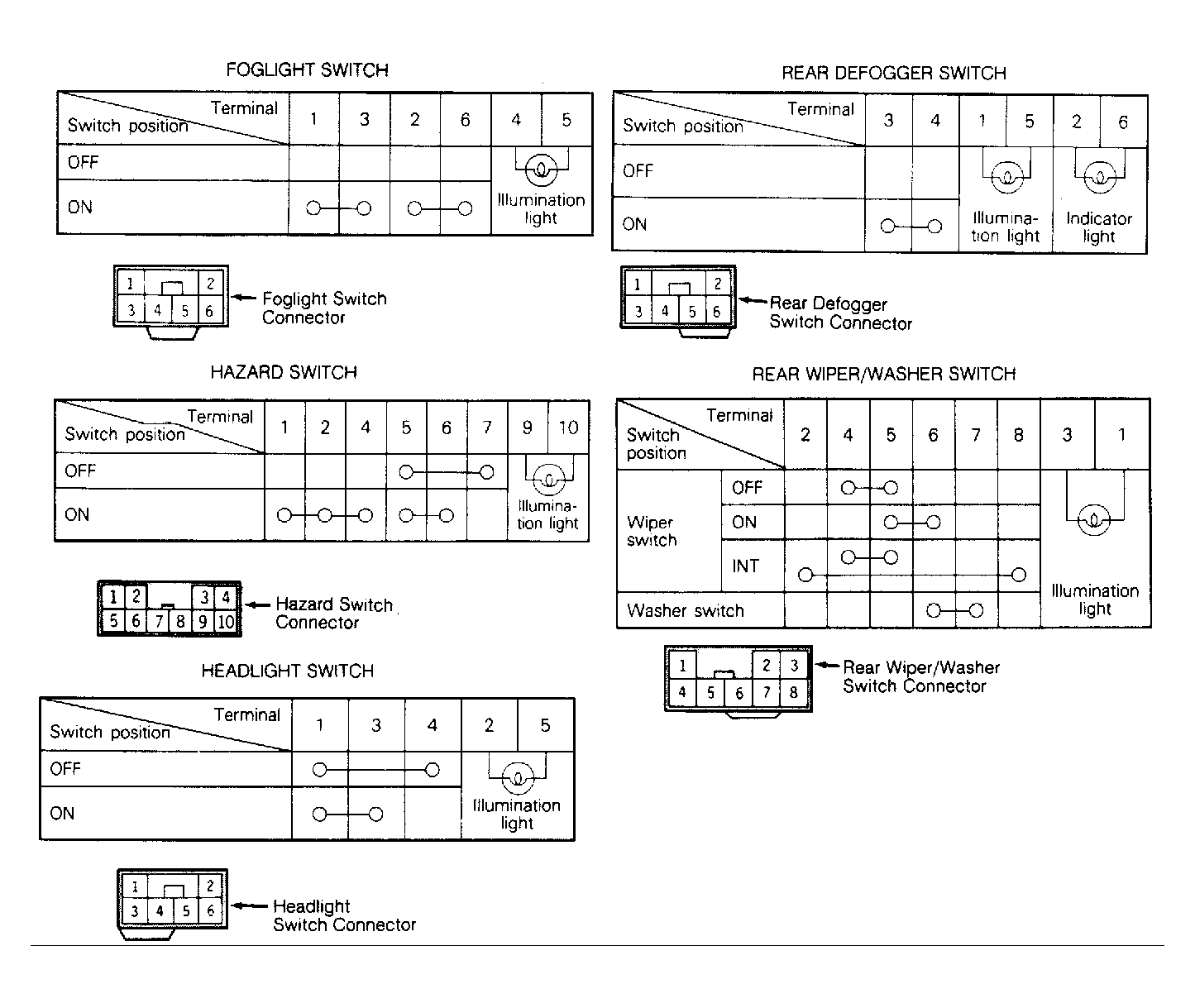

Fig 1: Testing Instrument Panel Switches

Courtesy of CHRYSLER MOTORS.
