Dr-10A: Testing Detonation Sensor

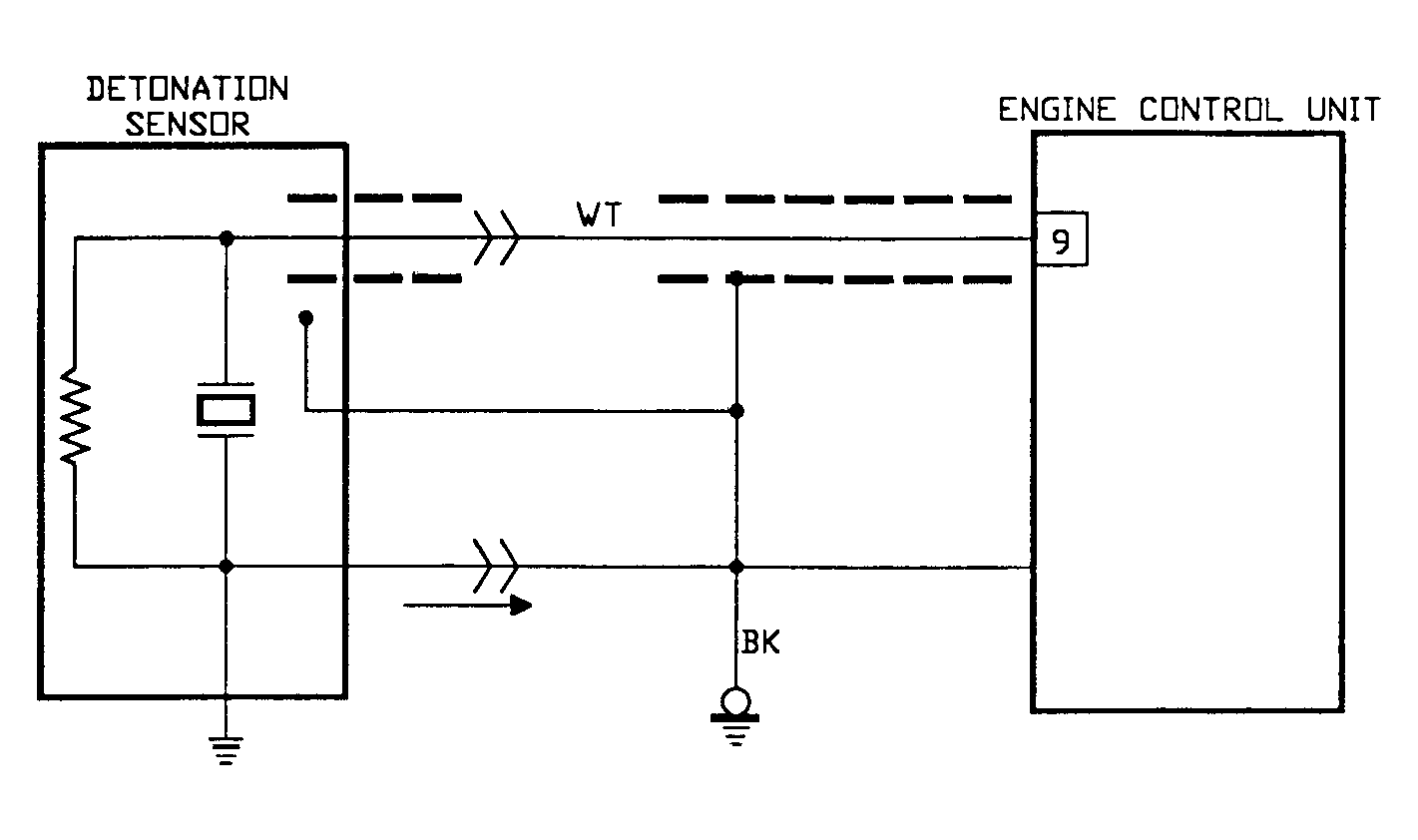

Fig 1: Driveability Test DR-10A: Circuit Diagram

G91E10771

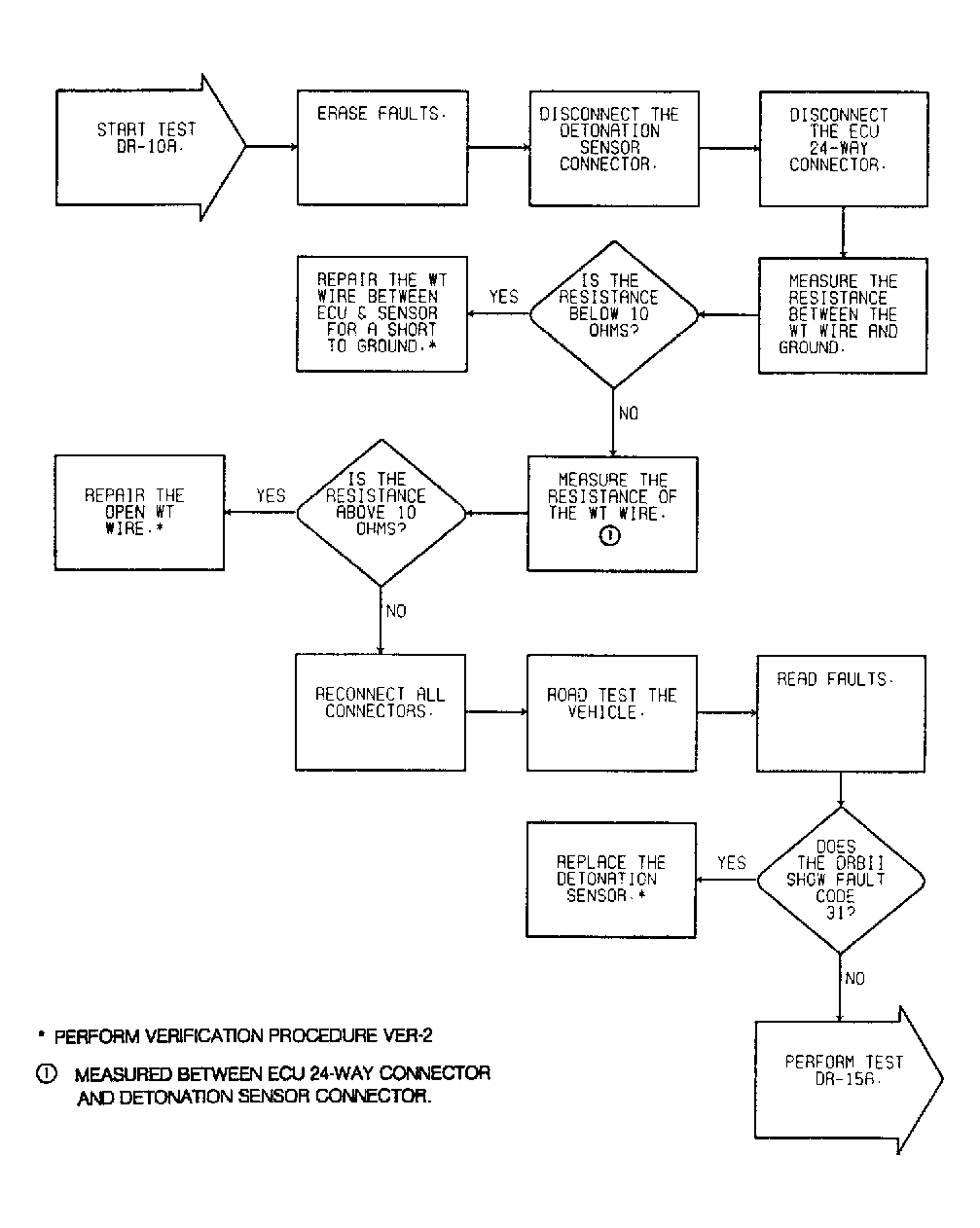

Fig 2: Driveability Test DR-10A: Diagnostic Flow Chart

G91J11121

Fig 3: Test DR-10A

GB0044648
