Talon Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes - 2.0L
›
Code Charts
›
Dr-12A: Testing Fuel Pump Sense
Dr-12A: Testing Fuel Pump Sense
Fig 1: Driveability Test DR-12A: Circuit Diagram

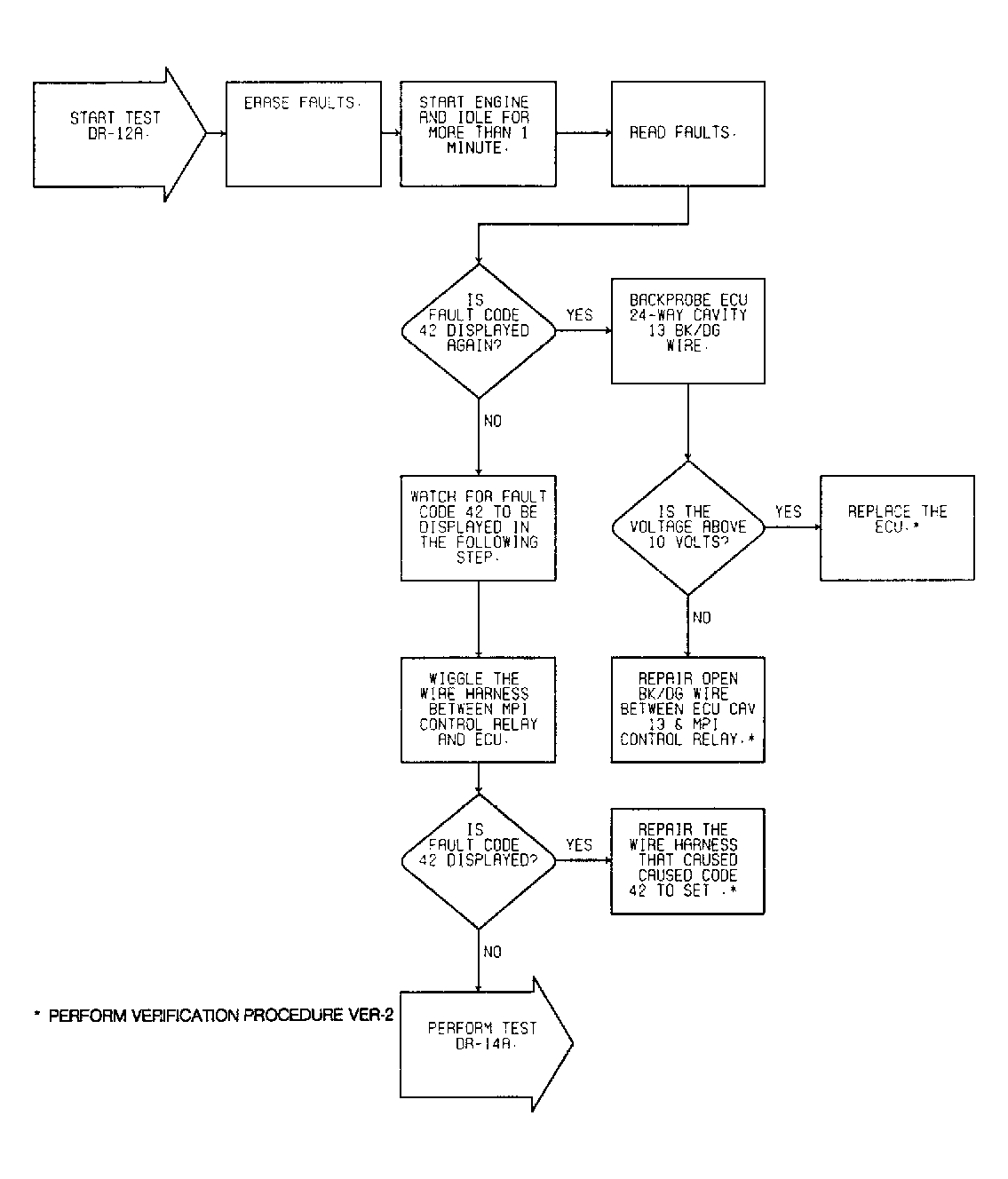

Fig 2: Driveability Test DR-12A: Diagnostic Flow Chart
Fig 3: Test DR-12A
