Dr-14A: Testing Ignition Coil

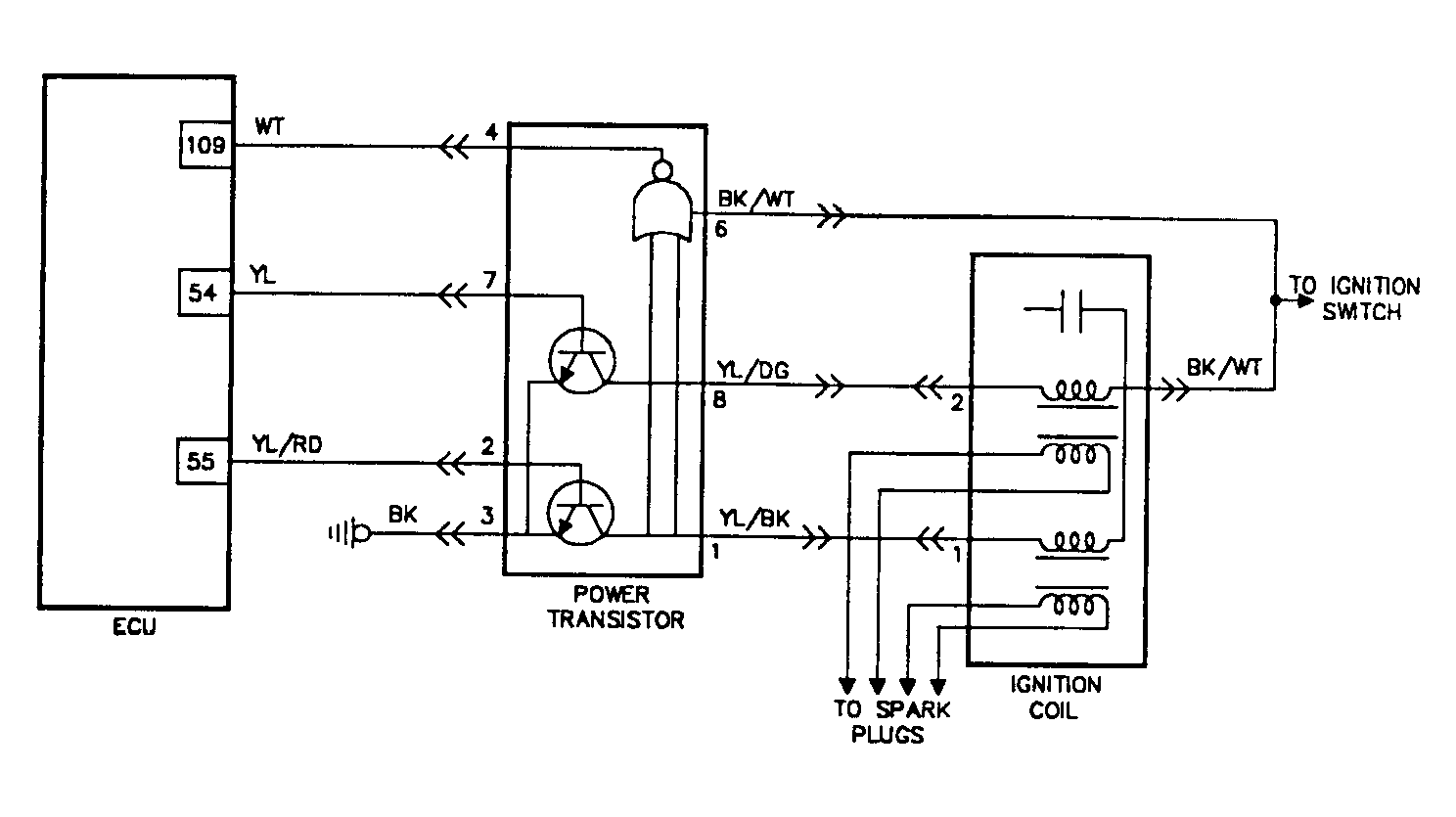

Fig 1: Driveability Test DR-14A: Circuit Diagram

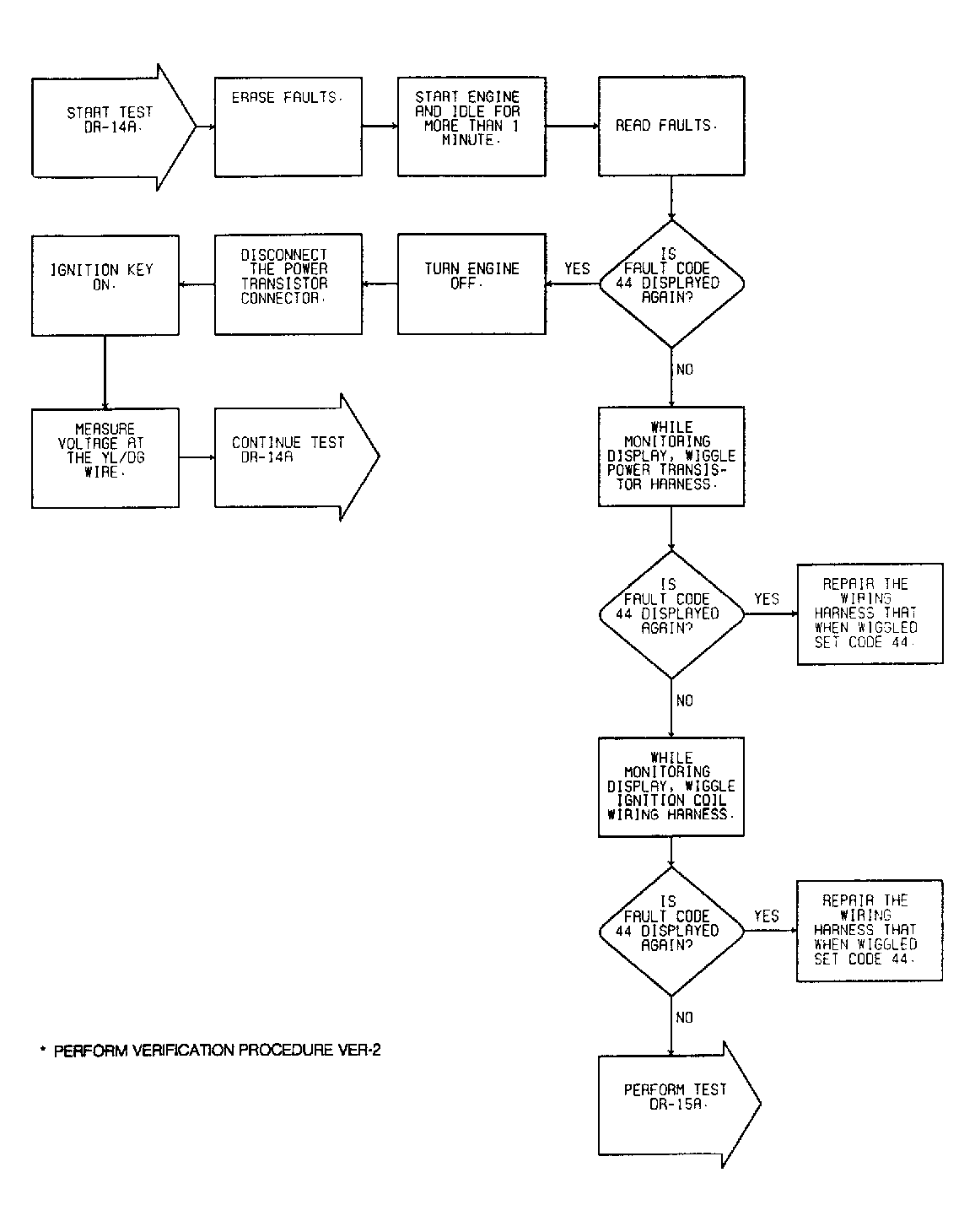

Fig 2: Driveability Test DR-14A: Diagnostic Flow Chart (1 of 4)

Fig 3: Test DR-14A (1 of 4)

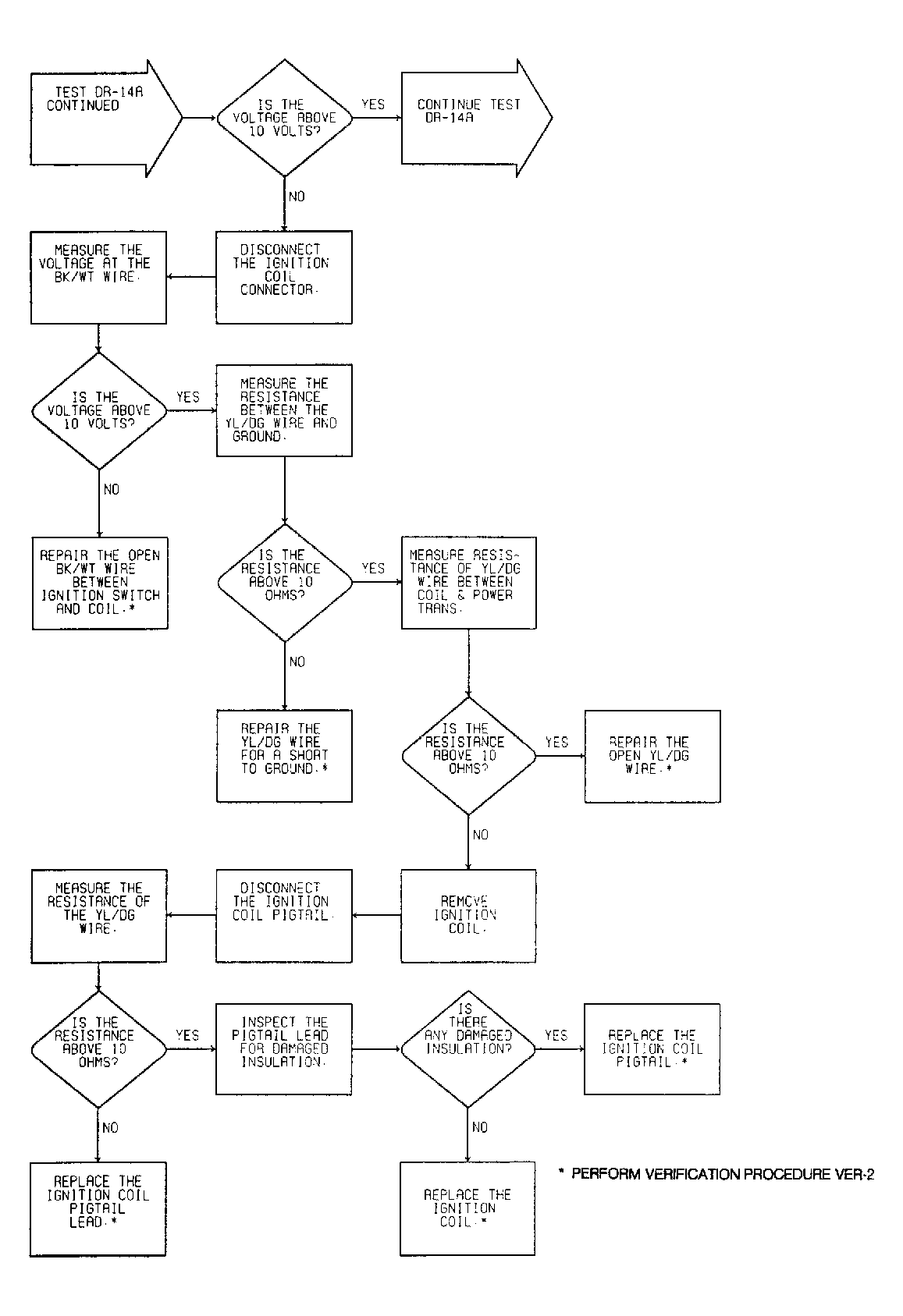

Fig 4: Driveability Test DR-14A: Diagnostic Flow Chart (2 of 4)

Fig 5: Test DR-14A Continued (2 of 4)

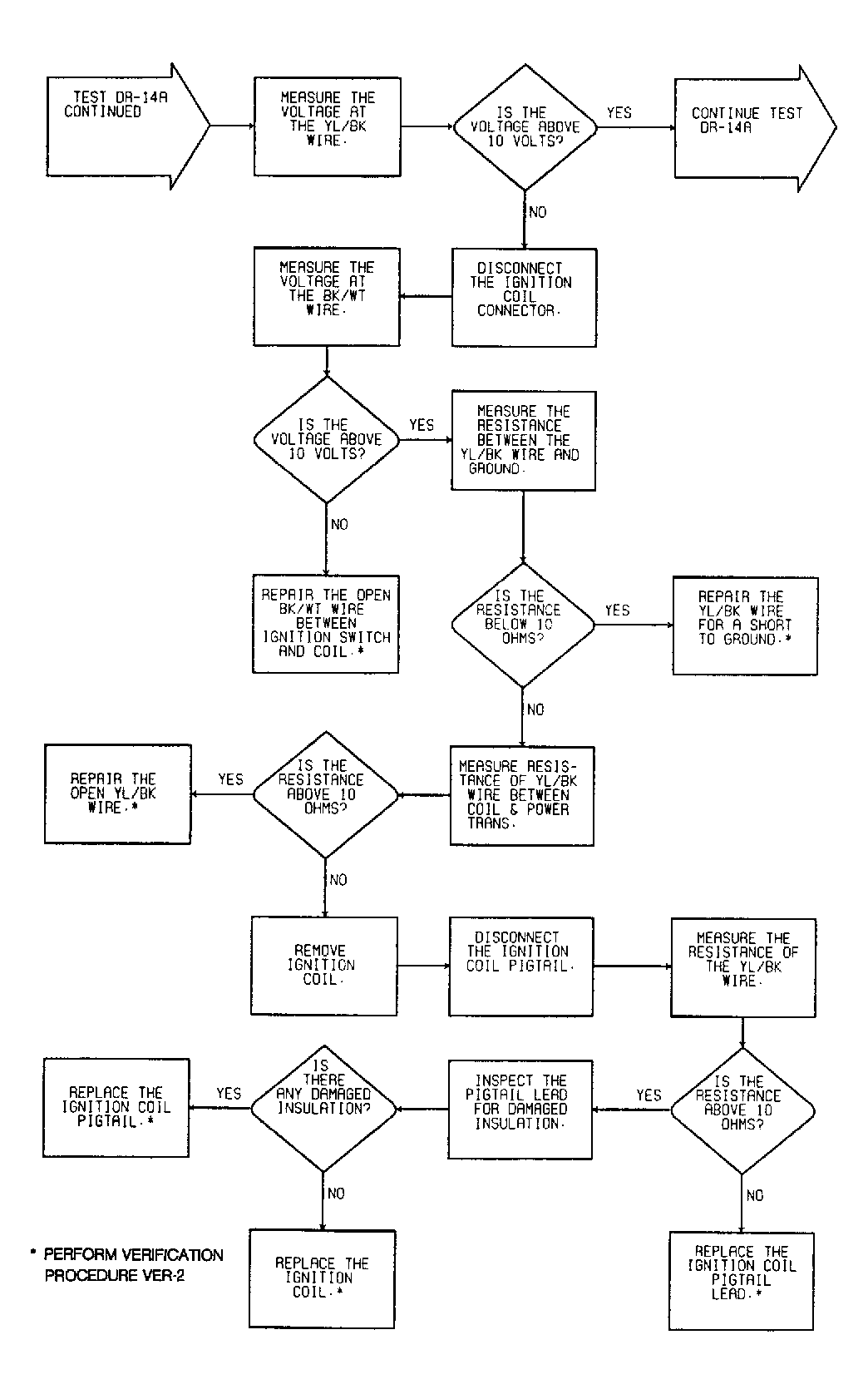

Fig 6: Driveability Test DR-14A: Diagnostic Flow Chart (3 of 4)

Fig 7: Test DR-14A Continued (3 of 4)

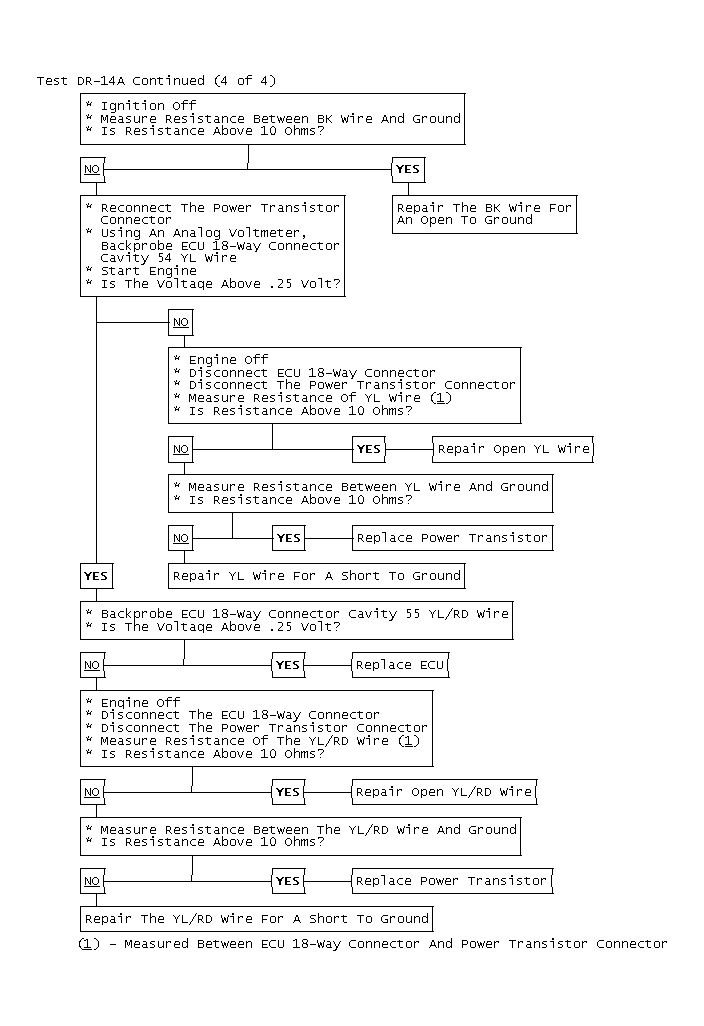

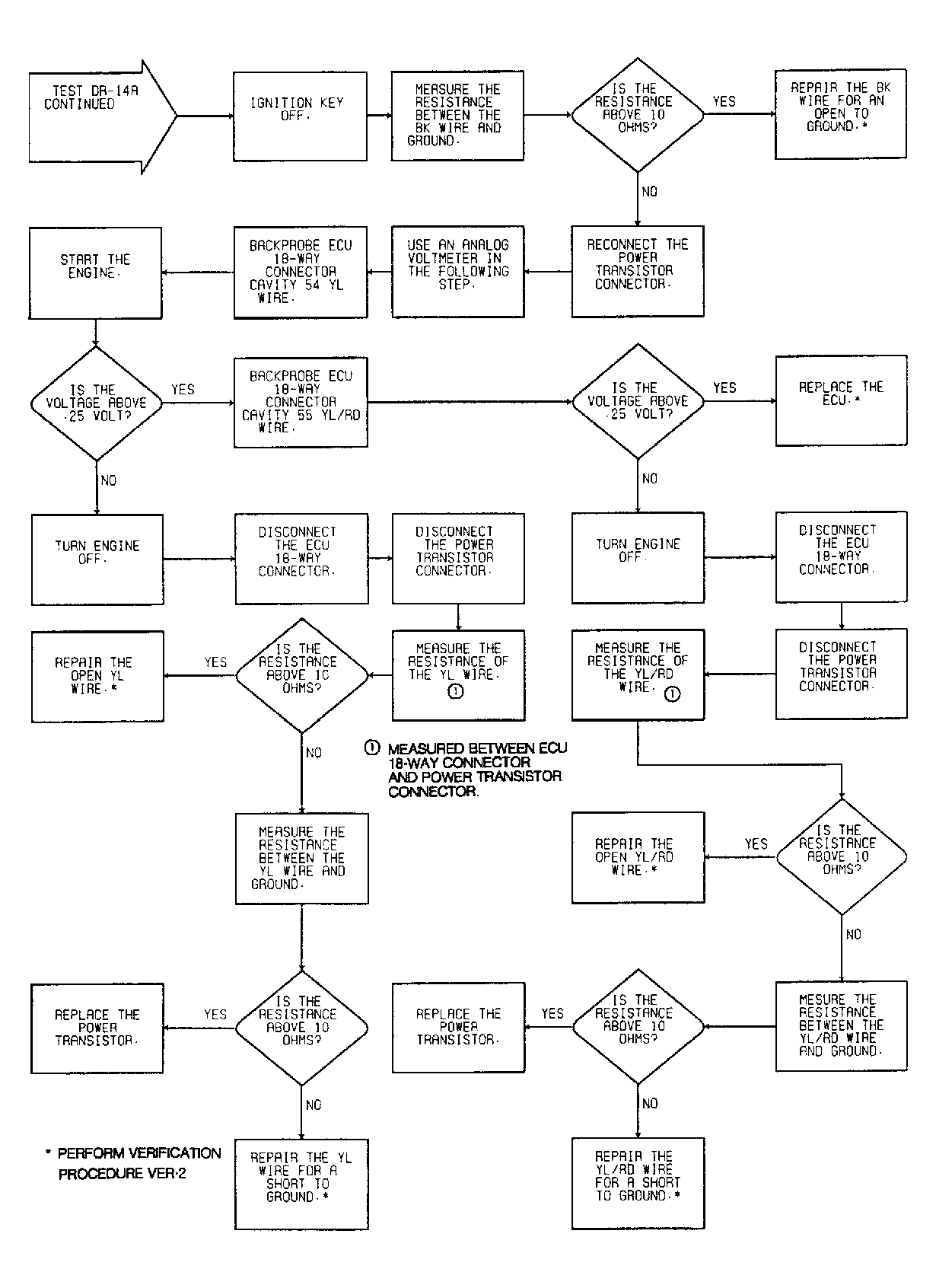

Fig 8: Driveability Test DR-14A: Diagnostic Flow Chart (4 of 4)

Fig 9: Test DR-14A Continued (4 of 4)
