Dr-18A: Testing Fuel Pressure

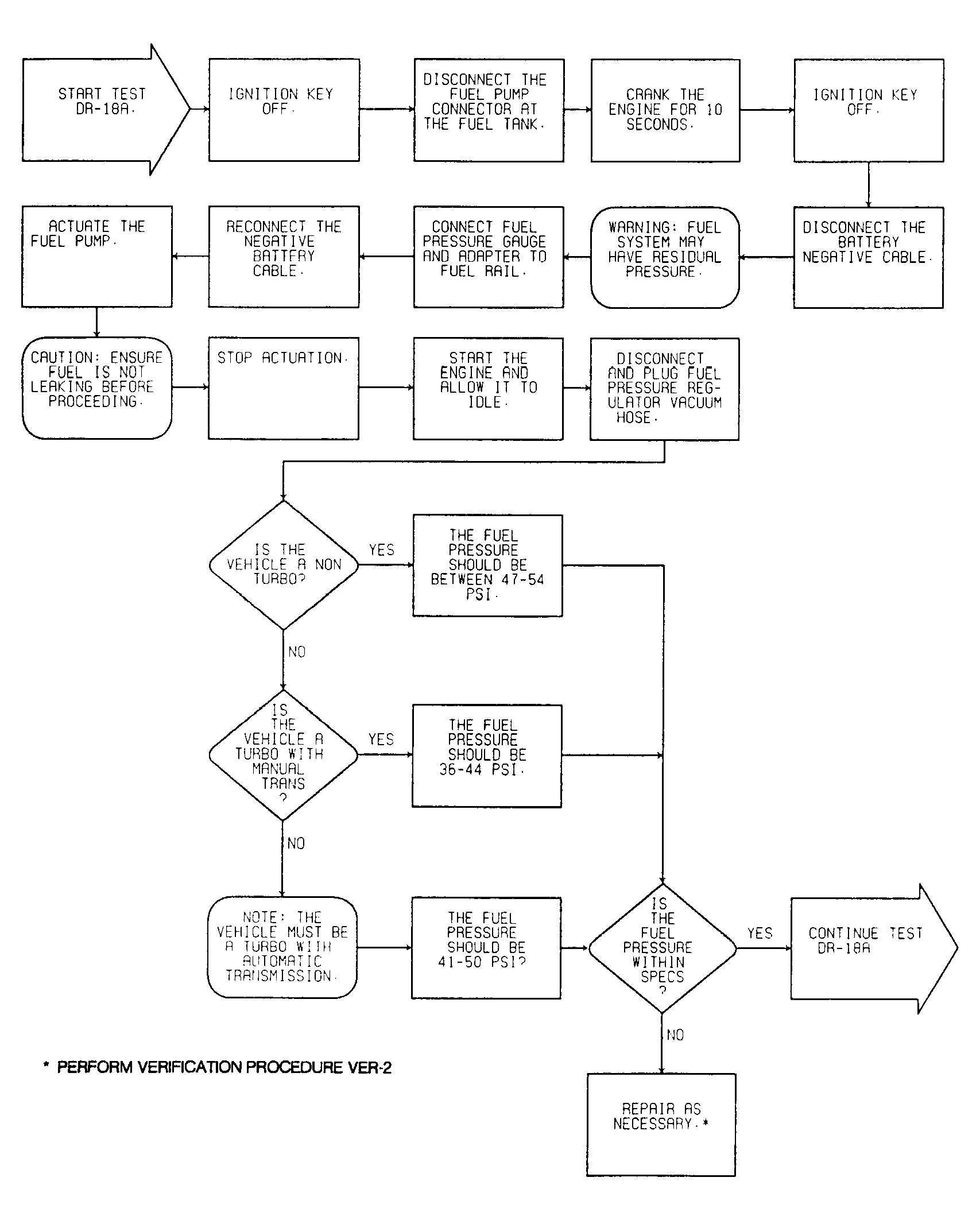

Fig 1: Driveability Test DR-18A: Diagnostic Flow Chart (1 of 2)

Fig 2: Test DR-18A

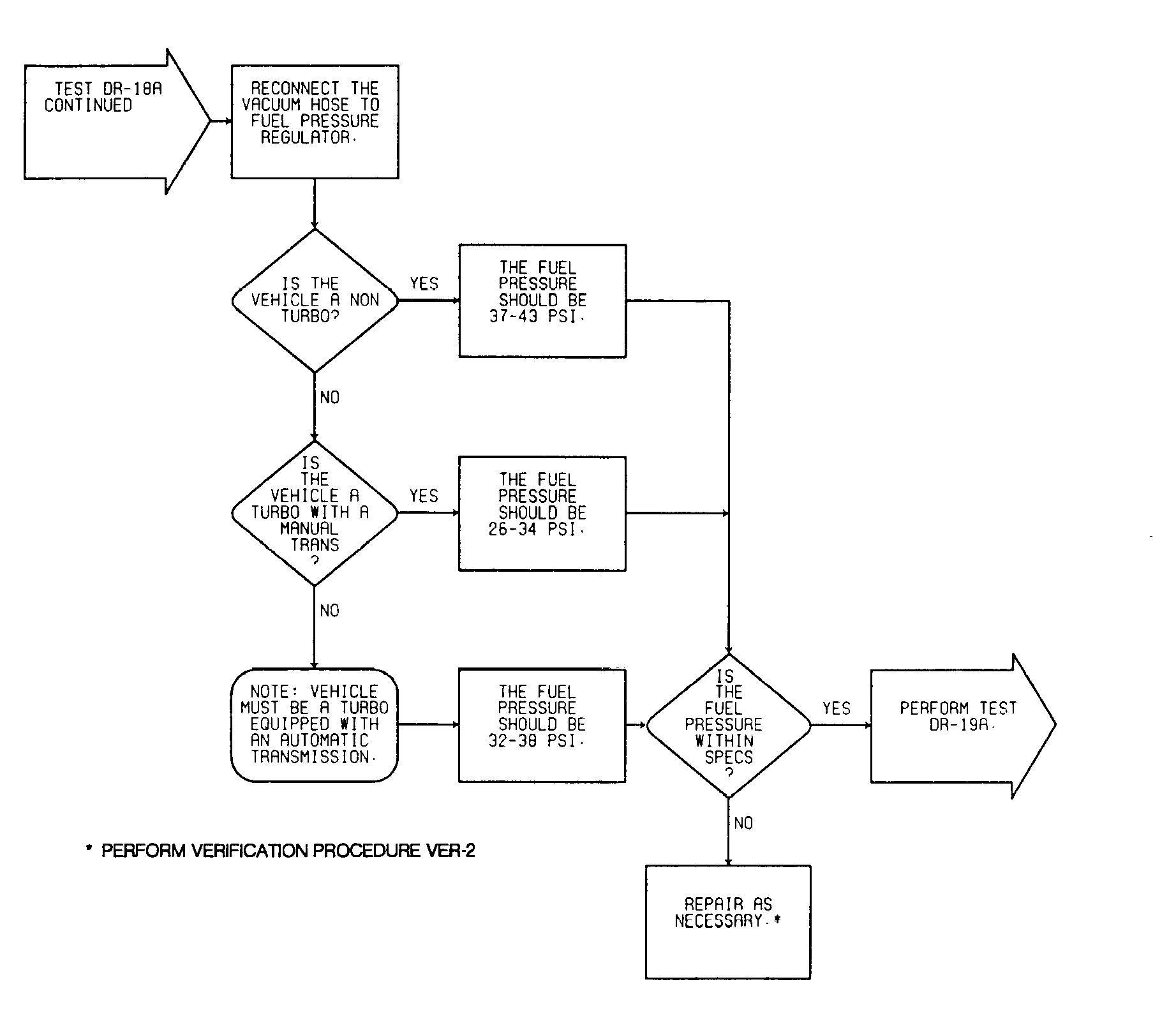

Fig 3: Driveability Test DR-18A: Diagnostic Flow Chart (2 of 2)

Fig 4: Test DR-18A Continued
