Dr-3A: Testing Airflow Sensor

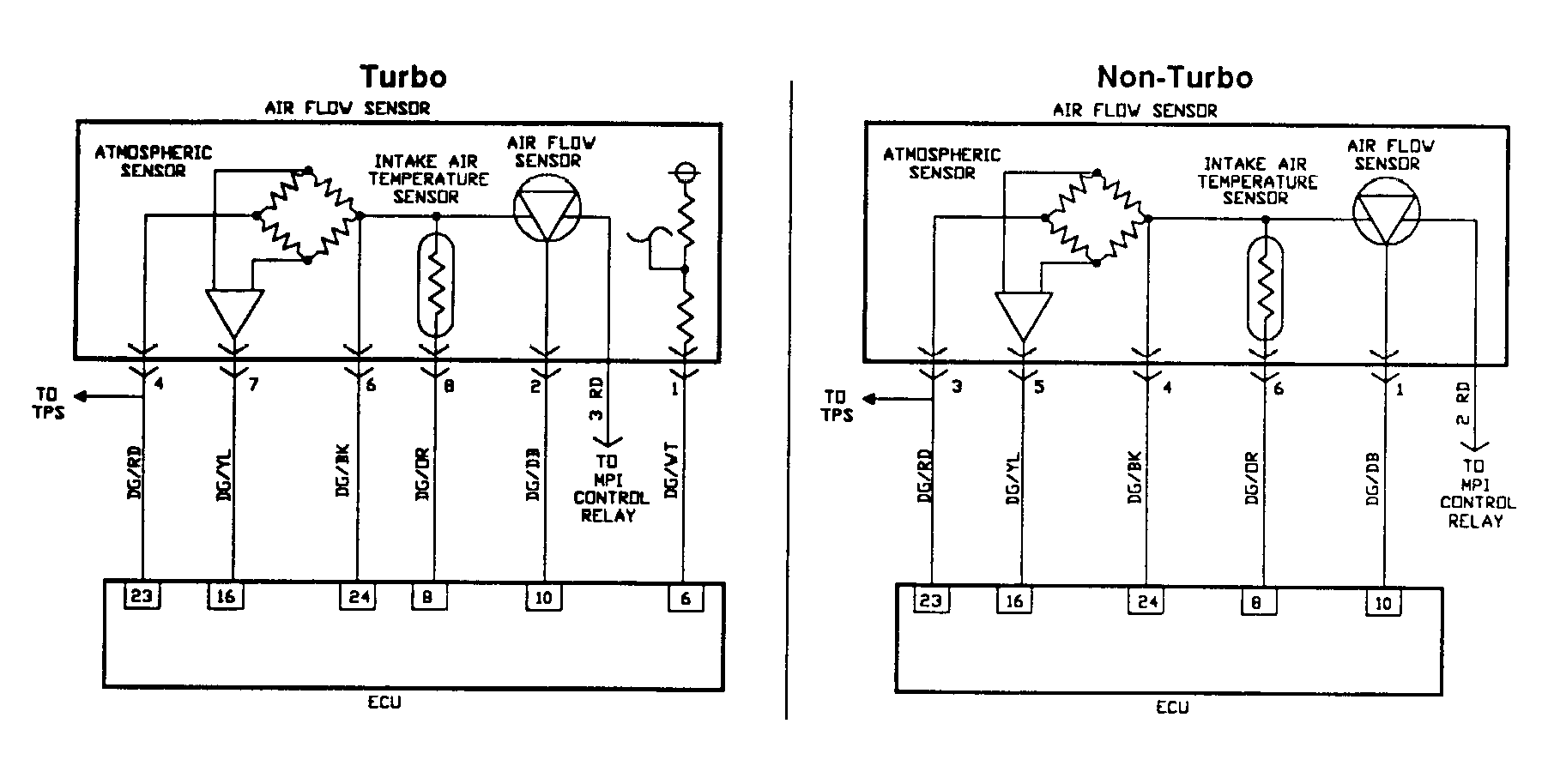

Fig 1: Driveability Test DR-3A: Circuit Diagram

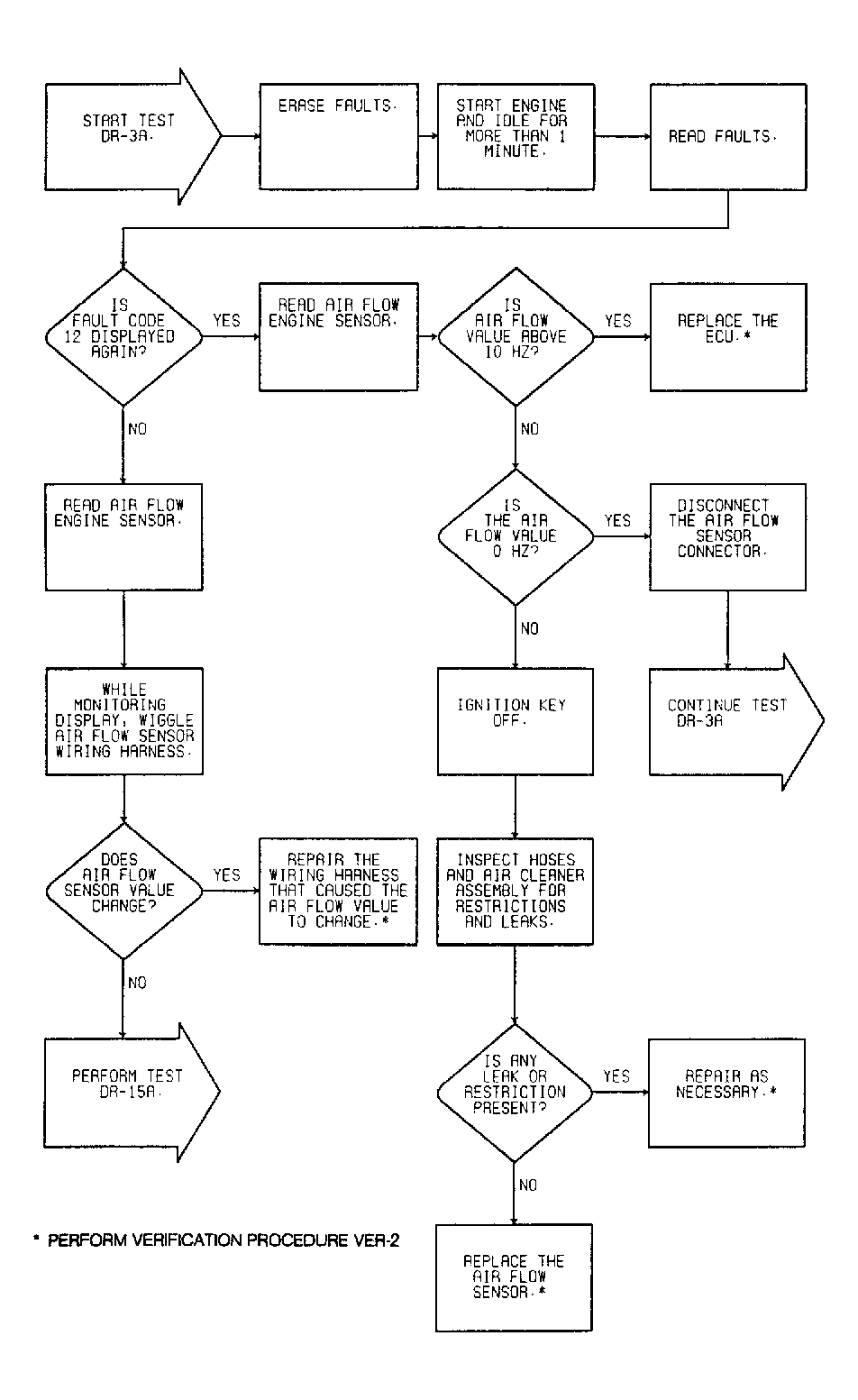

Fig 2: Driveability Test DR-3A: Diagnostic Flow Chart (1 of 2)

Fig 3: Test DR-3A

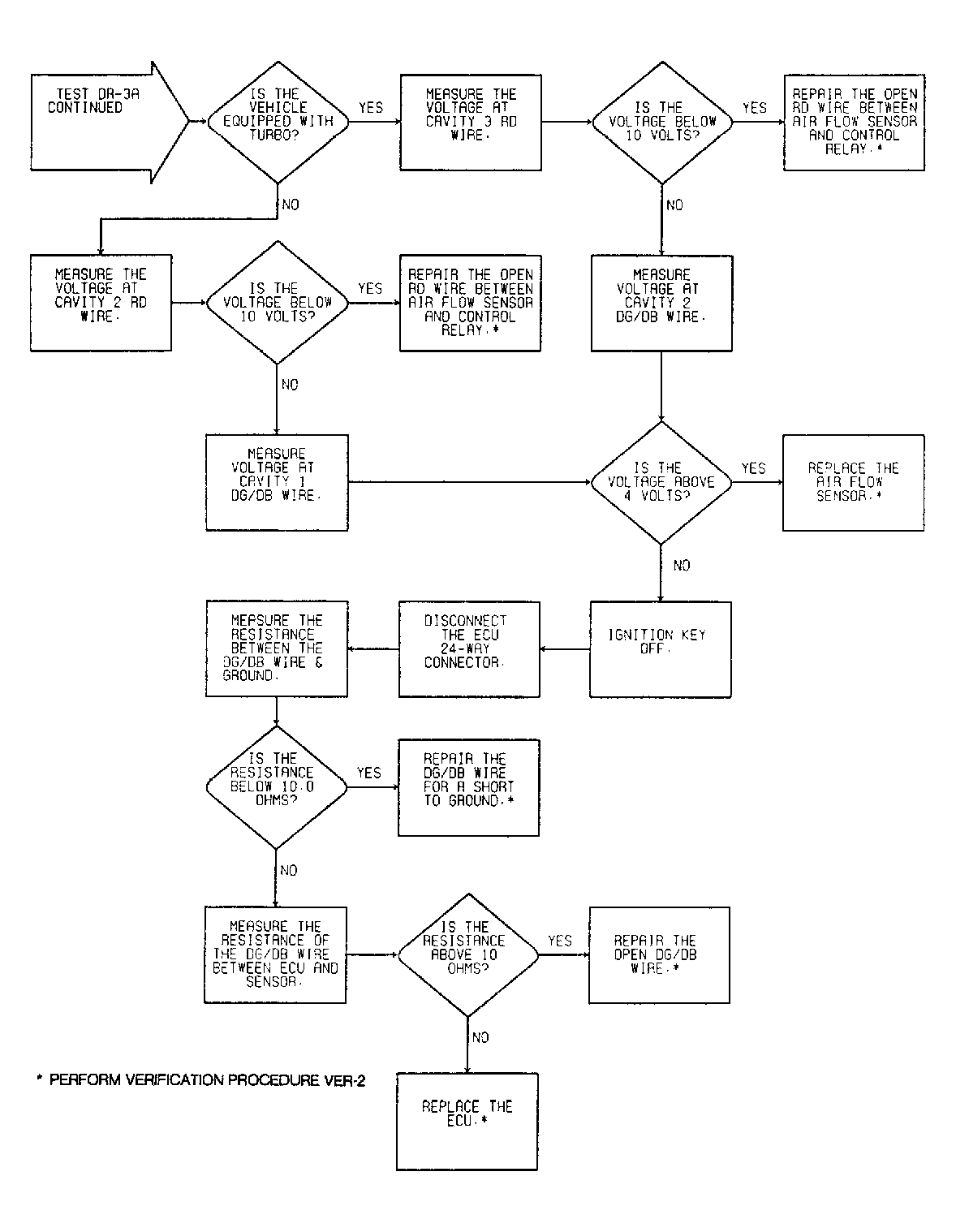

Fig 4: Driveability Test DR-3A: Diagnostic Flow Chart (2 of 2)

Fig 5: Test DR-3A Continued
