Dr-5A: Testing Throttle Position Sensor

Fig 1: Driveability Test DR-5A: Circuit Diagram

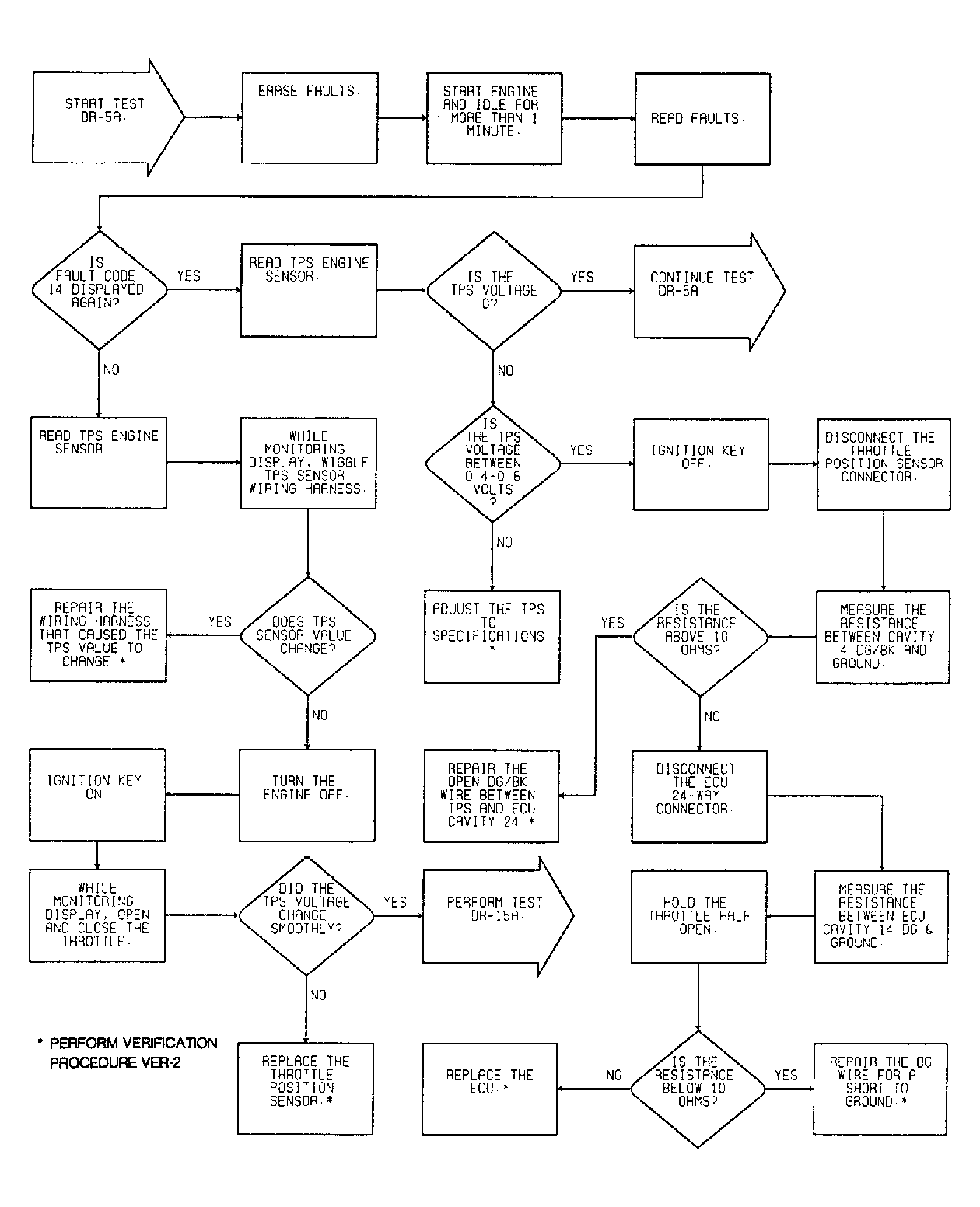

Fig 2: Driveability Test DR-5A: Diagnostic Flow Chart (1 of 2)

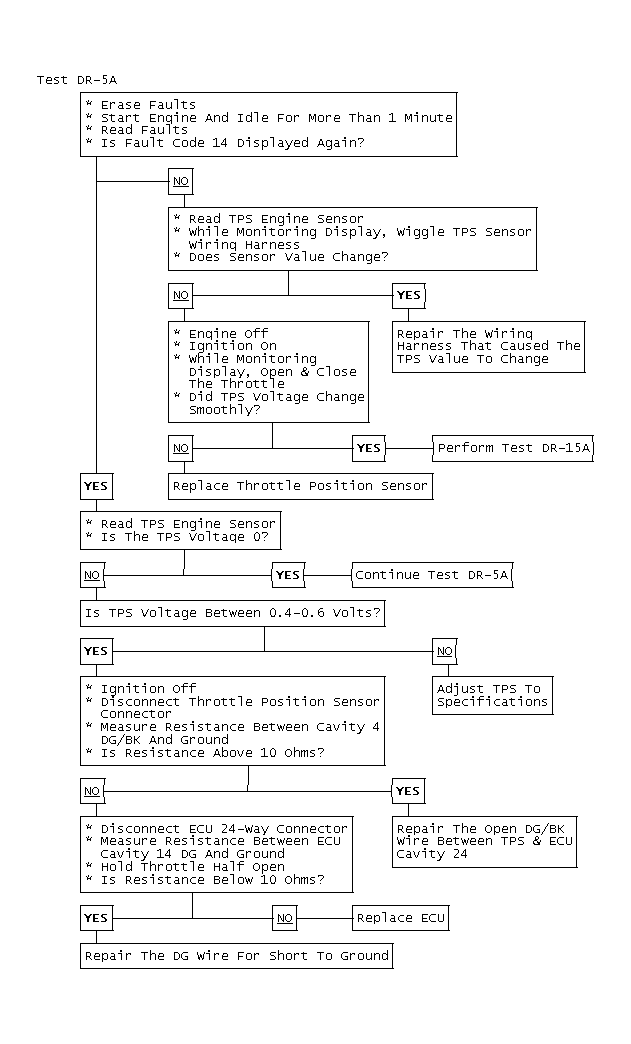

Fig 3: Test DR-5A

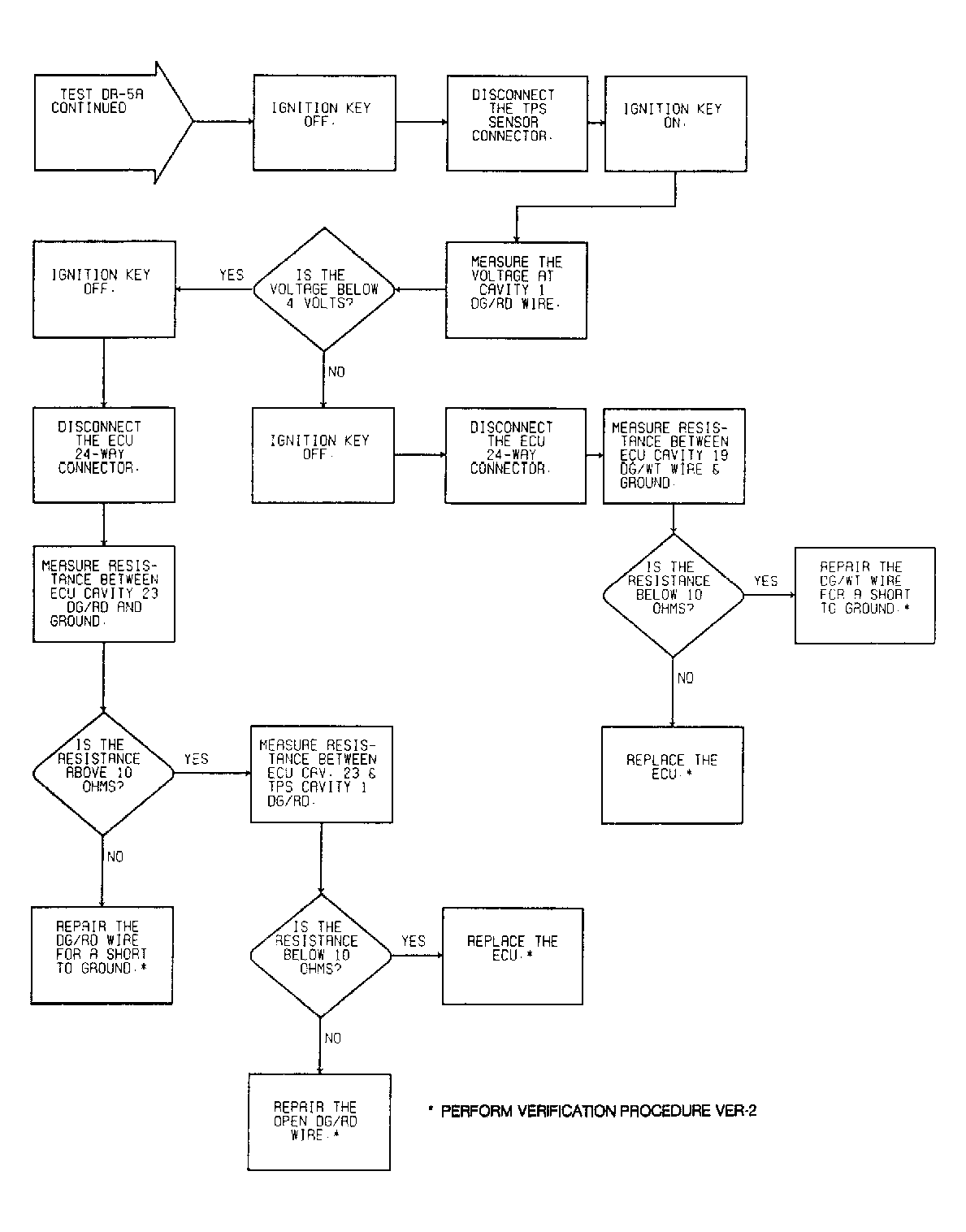

Fig 4: Driveability Test DR-5A: Diagnostic Flow Chart (2 of 2)

Fig 5: Test DR-5A Continued
