Dr-8A: Testing Vehicle Speed Sensor

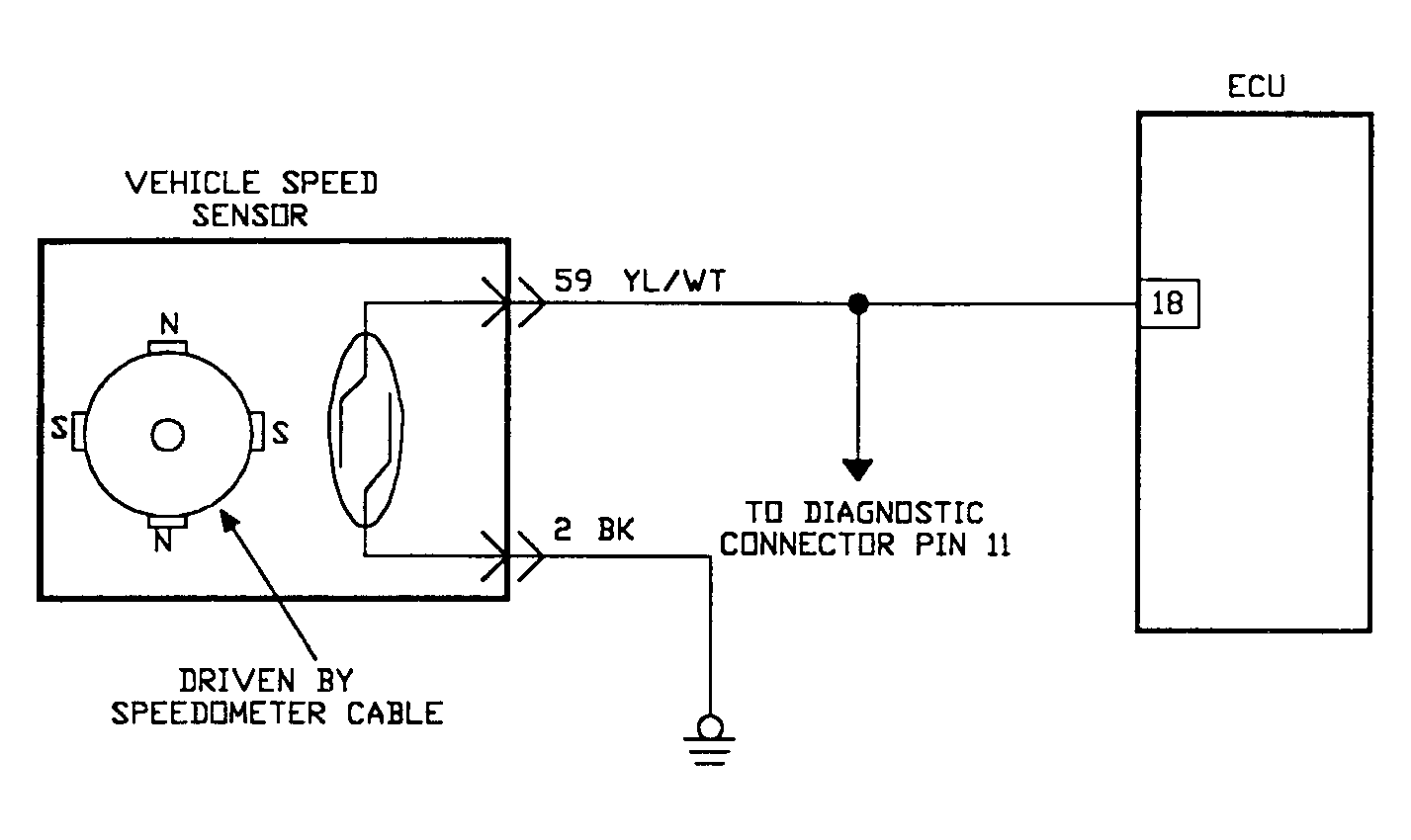

Fig 1: Driveability Test DR-8A: Circuit Diagram

G91D10770

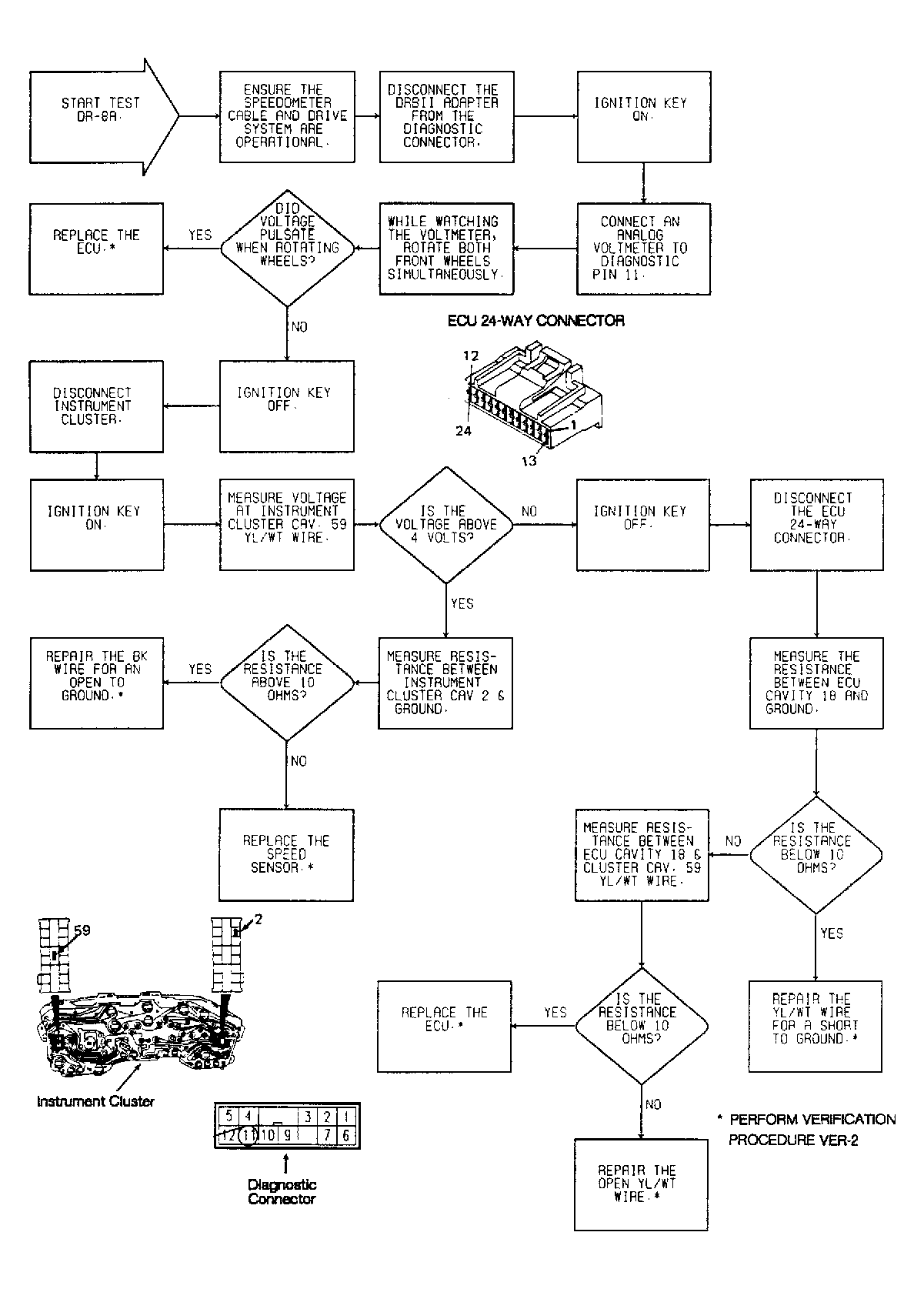

Fig 2: Driveability Test DR-8A: Diagnostic Flow Chart

G91E11118

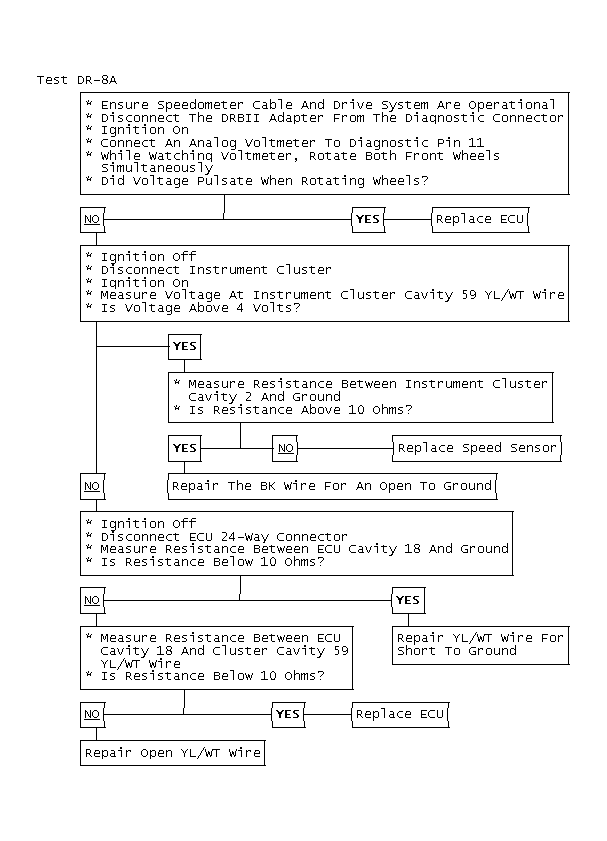

Fig 3: Test DR-8A

GB0044645
